Product Specifications
| Manufacturer Part Number | 89262 |
| Cutter Diameter (Decimal Inch) | 0.187" |
| Cutter Diameter (Inch) | 3/16" |
| Neck Diameter (Decimal Inch) | 0.1780" |
| Length of Cut (Decimal Inch) | 0.219" |
| Length of Cut (Inch) | 7/32" |
| Overall Reach (Decimal Inch) | 1.125" |
| Overall Reach (Inch) | 1-1/8" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Corner Radius (Decimal Inch) | 0.010" |
| Number of Flutes | 5 |
| LOC Multiple | 1.5x |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Coating | TPLUS |
| Center Cutting | Yes |
| Chip Breaker | Yes |

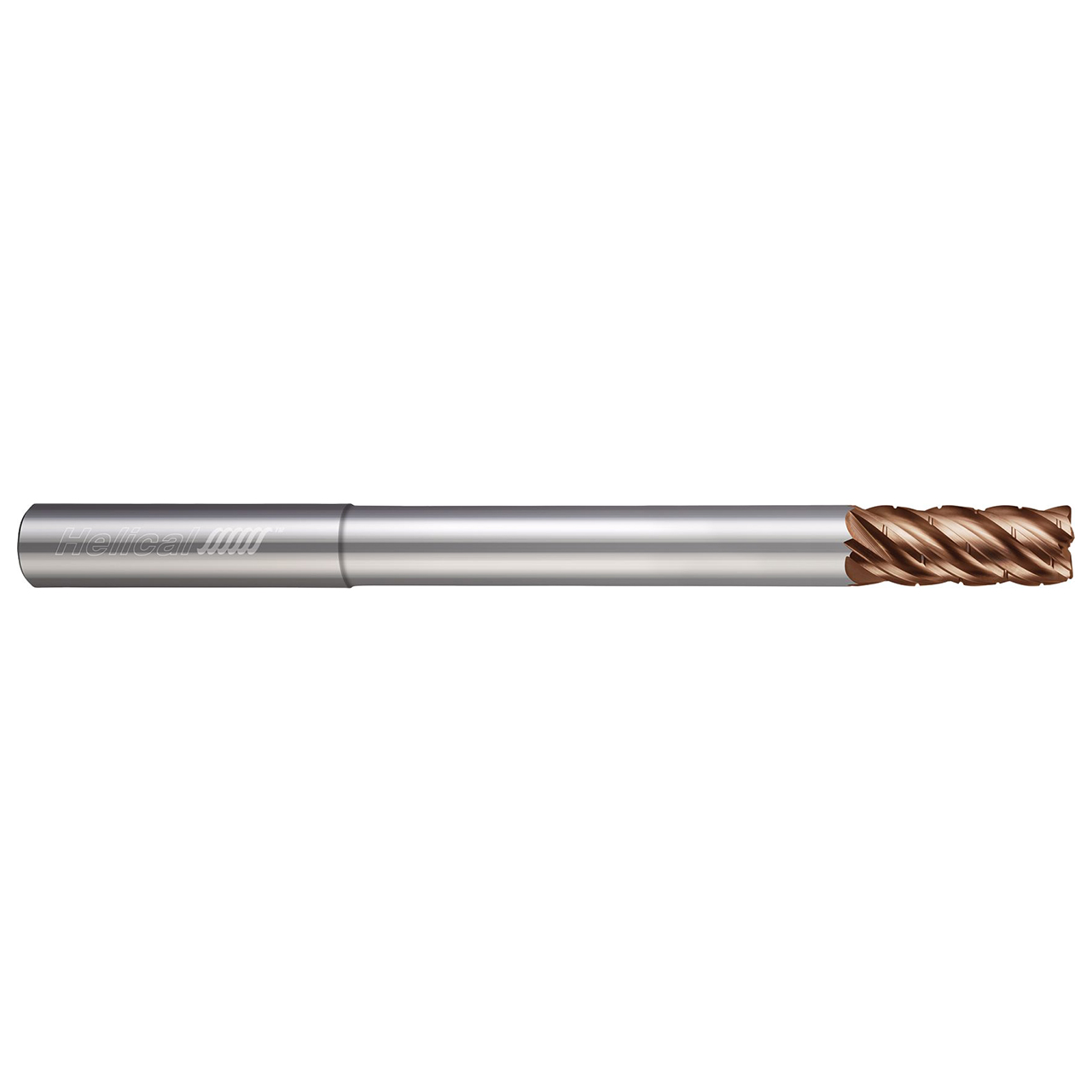

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
3/16"
Cutter Diameter (Decimal Inch):
0.1870"
Cutter Diameter (mm):
4.75mm
Length of Cut (Inch):
7/32"
Length of Cut (Decimal Inch):
0.2190"
Length of Cut (mm):
5.56mm
Overall Reach (Inch):
1-1/8"
Overall Reach (Decimal Inch):
1.1250"
Overall Reach (mm):
28.58mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1870"
Shank Diameter (mm):
4.75mm
Number of Flutes:
5
Finish/Coating:
TPLUS Coated
