Product Specifications
| Manufacturer Part Number | 89284 |
| Cutter Diameter (Decimal Inch) | 0.750" |
| Cutter Diameter (Inch) | 3/4" |
| Neck Diameter (Decimal Inch) | 0.7120" |
| Length of Cut (Decimal Inch) | 1.625" |
| Length of Cut (Inch) | 1-5/8" |
| Overall Reach (Decimal Inch) | 2.500" |
| Overall Reach (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 6.000" |
| Overall Length (Inch) | 6" |
| Corner Radius (Decimal Inch) | 0.030" |
| Number of Flutes | 5 |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (Inch) | 3/4" |
| Coating | TPLUS |
| Center Cutting | Yes |
| Chip Breaker | Yes |

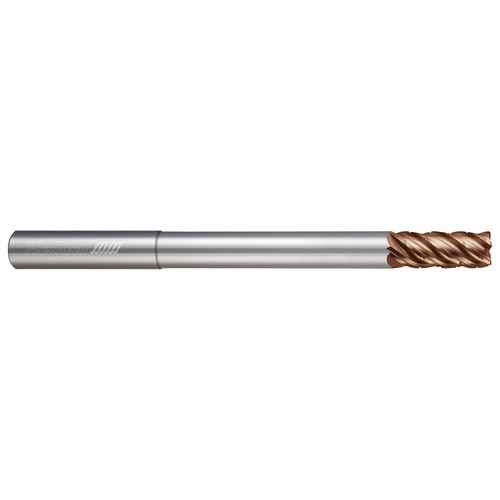

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7500"
Cutter Diameter (mm):
19.05mm
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Overall Reach (Inch):
2-1/2"
Overall Reach (Decimal Inch):
2.5000"
Overall Reach (mm):
63.50mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Corner Radius (Inch):
2/67"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Number of Flutes:
5
Finish/Coating:
TPLUS Coated
