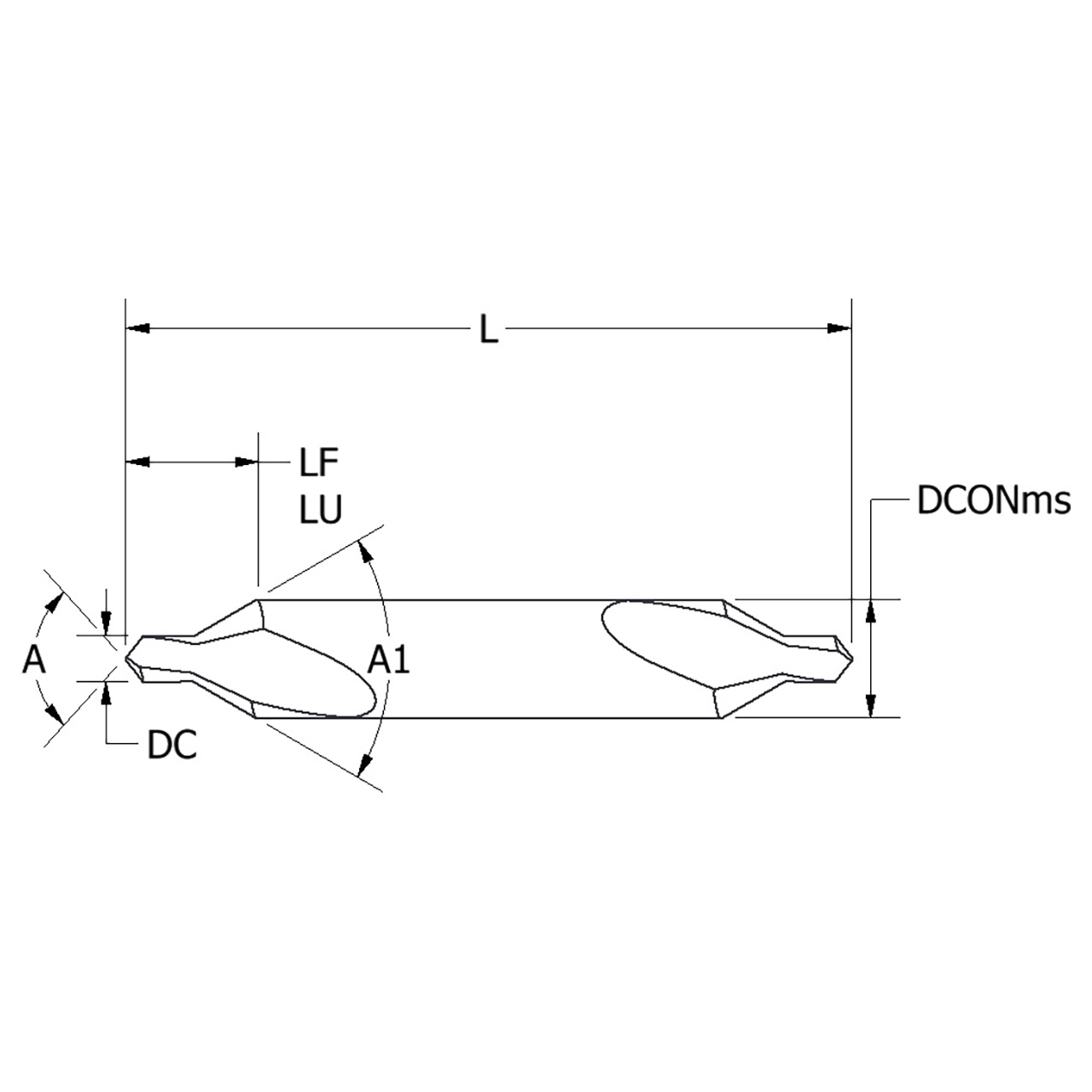

Product Specifications
| # Manufacturer Number | 906-000-164 |
| Cutting Diameter (Decimal Inch) | 0.2500" |
| Connection Diameter (Decimal Inch) | 0.6250" |
| Overall Length (Decimal Inch) | 3.2500" |
| Functional Length (Decimal Inch) | 0.4995" |
| Usable Length (Decimal Inch) | 0.4995" |
| Angle (Degree) | 118 Degree |
| Angle 1 (Degree) | 90 Degree |
| Cutting Edge Count | 2 |
| Tool Material | HSS |
| Connection Type | Shank |
| Cutting Direction | Right Hand |
| Coating | TiN |
| Product Type | Combination Drill & Countersink |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Keo
Included Angle:
118 Degree
Material:
HSS
Finish/Coating:
TiN
Cutting Direction:
Right
Overall Length (Inch):
3-1/4"
Overall Length (Decimal Inch):
3.2500"
Overall Length (mm):
82.55mm
