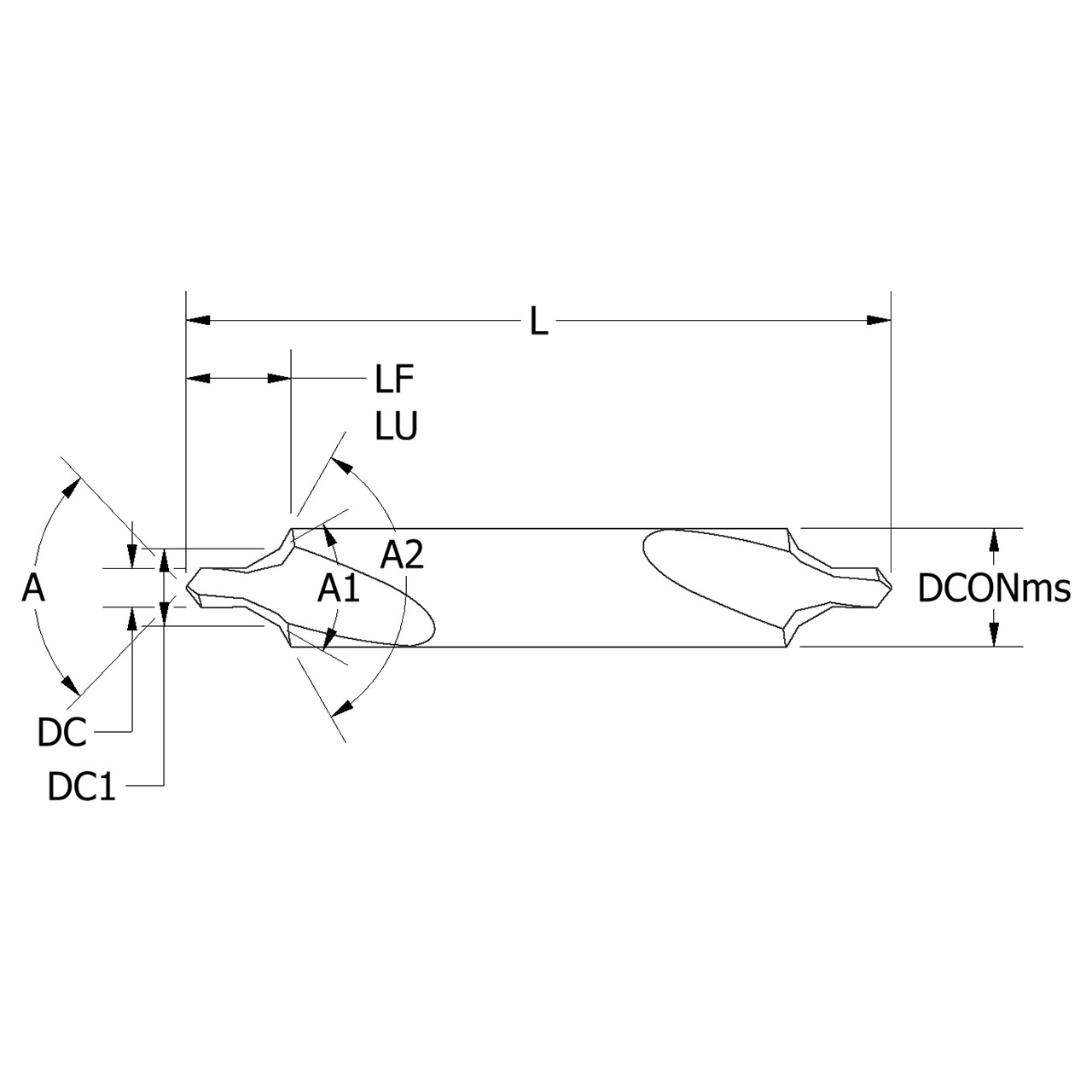

| Manufacturer Part Number | 906-001-133 |
| Cutting Diameter (Decimal Inch) | 0.188" |
| Cutting Diameter 1 (Decimal Inch) | 0.400" |
| Connection Diameter (Decimal Inch) | 0.500" |
| Overall Length (Decimal Inch) | 3.000" |
| Functional Length (Decimal Inch) | 0.447" |
| Length of Shank (Decimal Inch) | 1.500" |
| Usable Length (Decimal Inch) | 0.447" |
| Cutting Edge Count | 2 |
| Included Angle (Degree) | 118 Degree |
| Included Angle 1 (Degree) | 60 Degree |
| Included Angle 2 (Degree) | 120 Degree |
| Cutting Direction | Left Hand |
| Material | HSS |
| Coating | TiN |
| Connection Type | Shank |
| Product Type | Combination Drill & Countersink |
