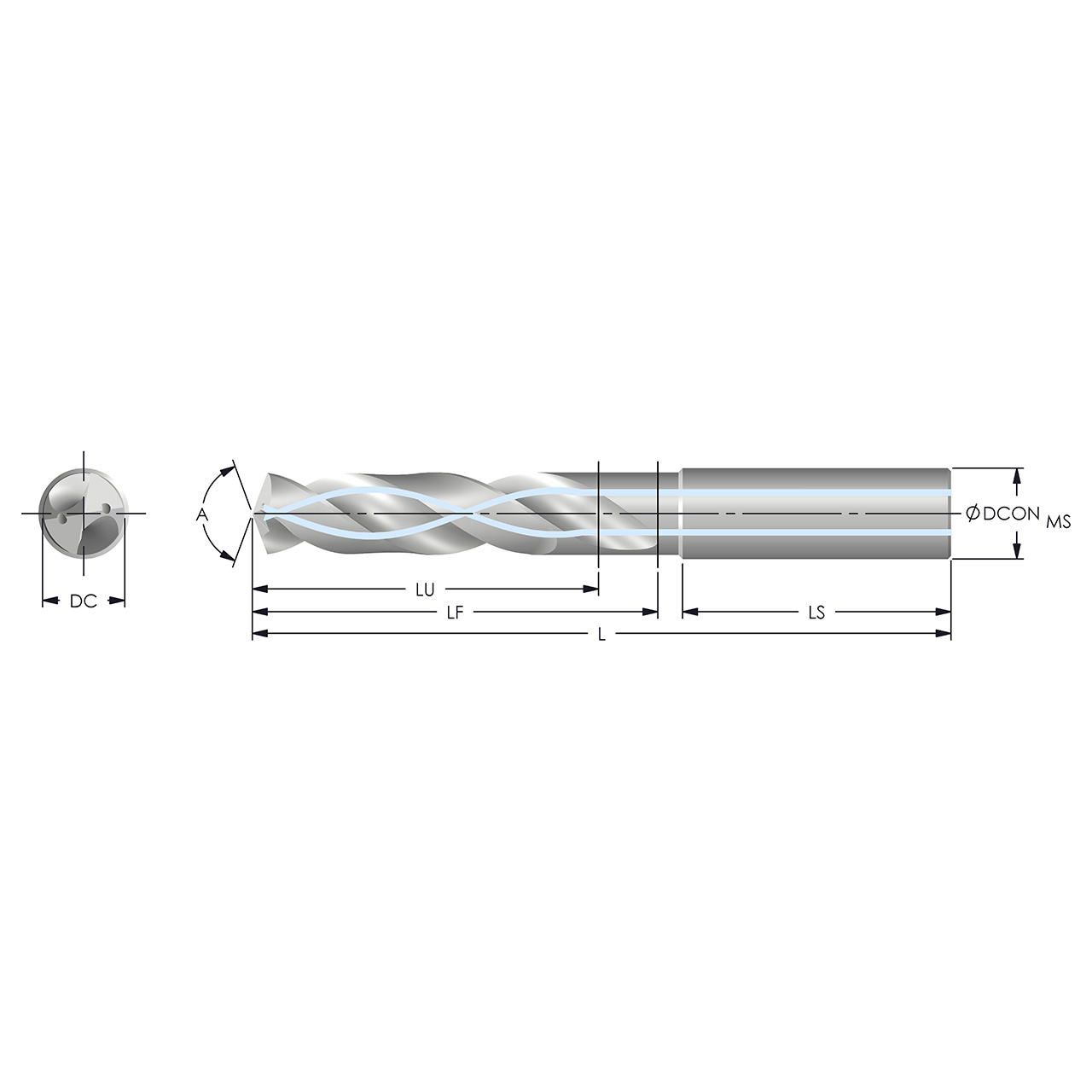

| Manufacturer Part Number | 928-000-713 |
| Cutting Diameter (Decimal Inch) | 0.781" |
| Connection Diameter (Decimal Inch) | 0.787" |
| Overall Length (Decimal Inch) | 8.543" |
| Functional Length (Decimal Inch) | 6.378" |
| Length of Shank (Decimal Inch) | 1.969" |
| Usable Length (Decimal Inch) | 5.354" |
| Cutting Edge Count | 2 |
| Included Angle (Degree) | 140 Degree |
| Connection Type | Shank |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Taper Length Drill Bit |
