Keo 934-000-275 | 0.090" Diameter x 1.045" Shank Length x 1.500" OAL HSS Ball End Mill

$19.87
Brand:
Keo
Material:
HSS
Overall Length (Inch):
1-1/20"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
15.87mm
Mill Diameter (Inch):
1/110"
Mill Diameter (Decimal Inch):
0.0900"
Mill Diameter (mm):
2.29mm
SKU:
25341734
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Keo 934-000-275 | 0.090" Diameter x 1.045" Shank Length x 1.500" OAL HSS Ball End Mill

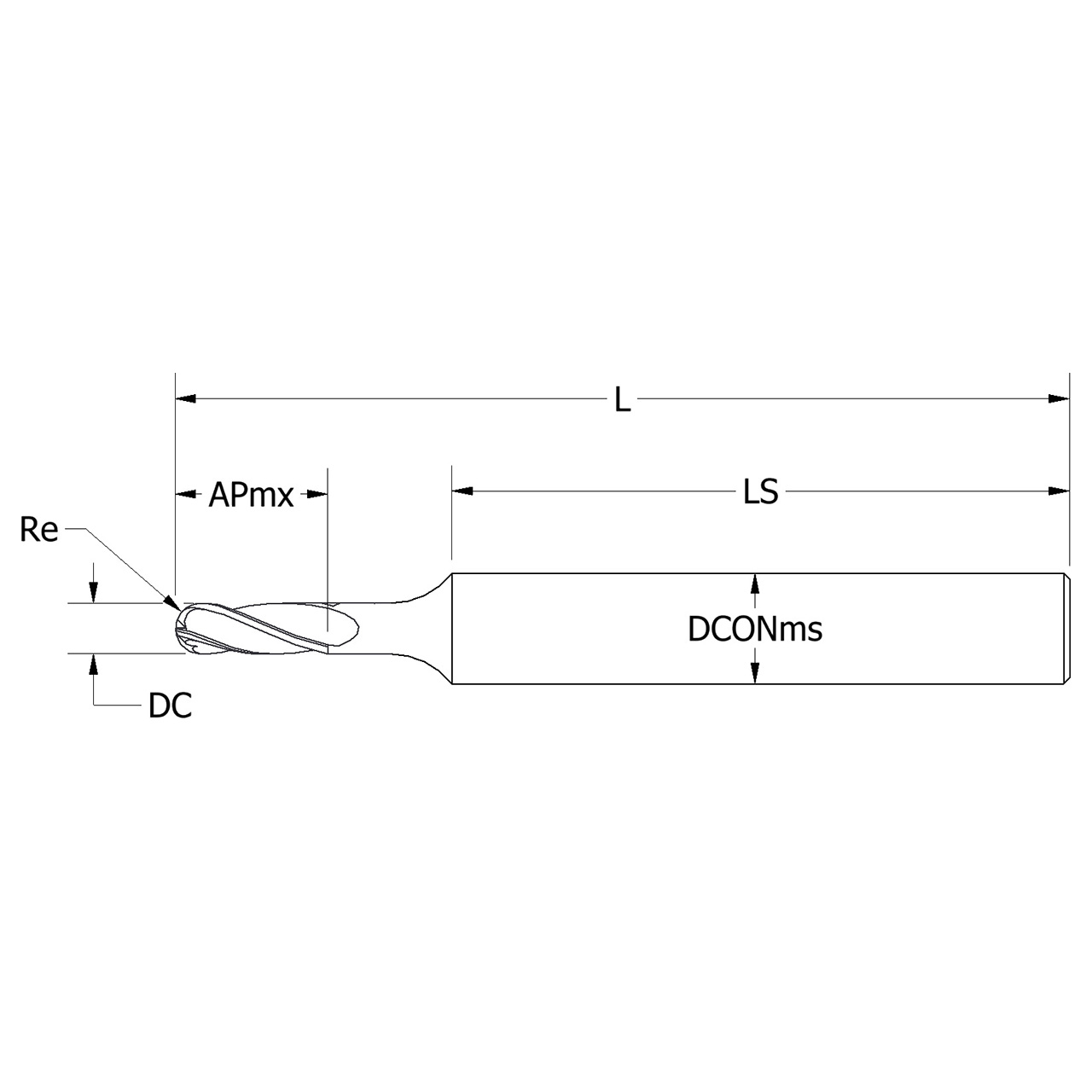

Product Specifications
Manufacturer Part Number934-000-275
Cutting Diameter (Decimal Inch)0.090"
Connection Diameter (Decimal Inch)0.188"
Overall Length (Decimal Inch)1.500"
Functional Length (Decimal Inch)0.275"
Length of Shank (Decimal Inch)1.045"
Cutting Edge Corner Radius (Decimal Inch)0.045"
Cutting Edge Count2
Included Angle (Degree)90 Degree
Maximum Axial Depth of Cut (Decimal Inch)0.270"
Connection TypeShank
Cutting DirectionRight Hand
MaterialHSS
Product TypeBall End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Keo
Material:
HSS
Overall Length (Inch):
1-1/20"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
15.87mm
Mill Diameter (Inch):
1/110"
Mill Diameter (Decimal Inch):
0.0900"
Mill Diameter (mm):
2.29mm
