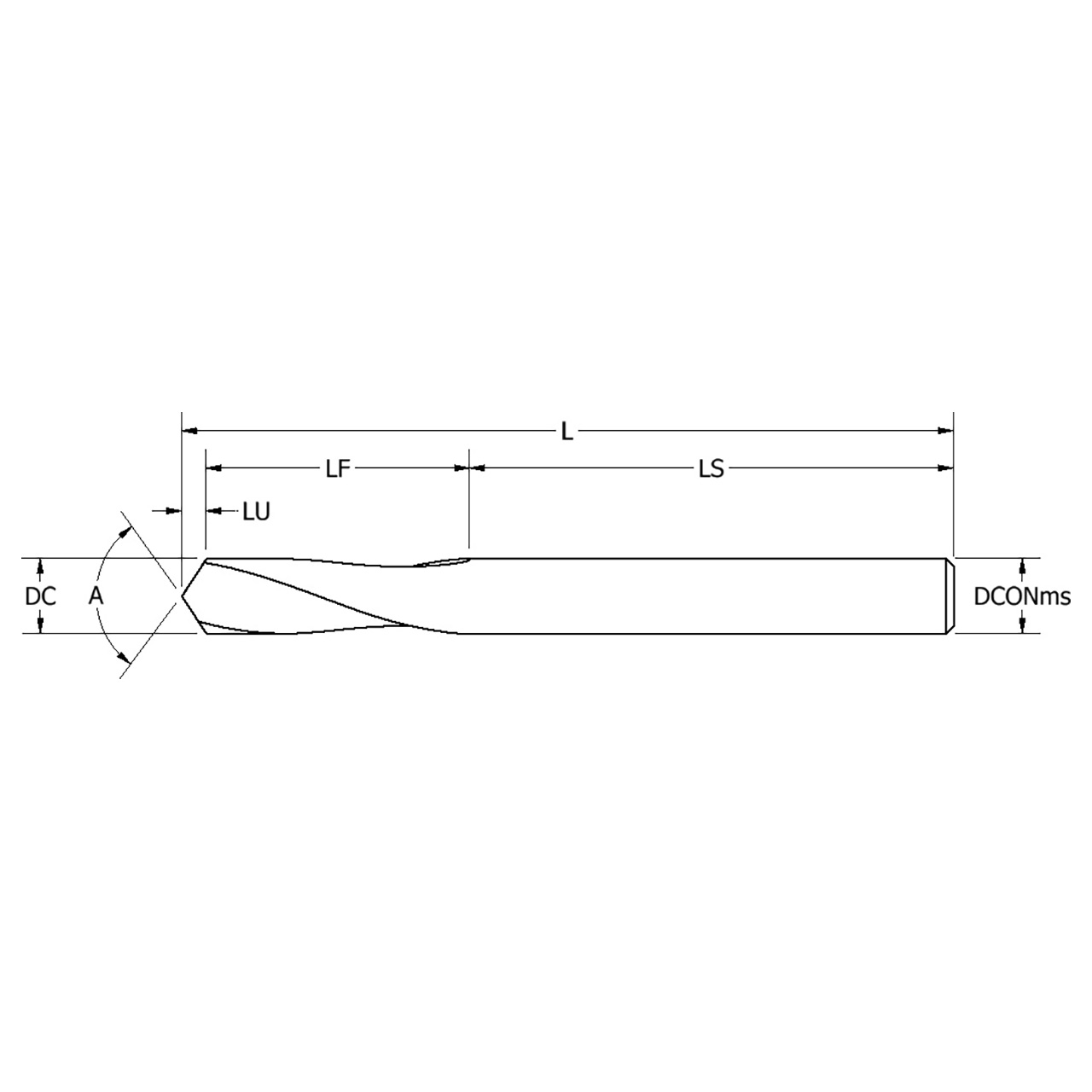

| Manufacturer Part Number | 956-000-379 |
| Cutting Diameter (Decimal Inch) | 0.250" |
| Connection Diameter (Decimal Inch) | 0.250" |
| Overall Length (Decimal Inch) | 2.500" |
| Functional Length (Decimal Inch) | 0.750" |
| Length of Shank (Decimal Inch) | 1.750" |
| Usable Length (Decimal Inch) | 0.118" |
| Cutting Edge Count | 2 |
| Included Angle (Degree) | 60 Degree |
| Connection Type | Shank |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Spotting Drill |
