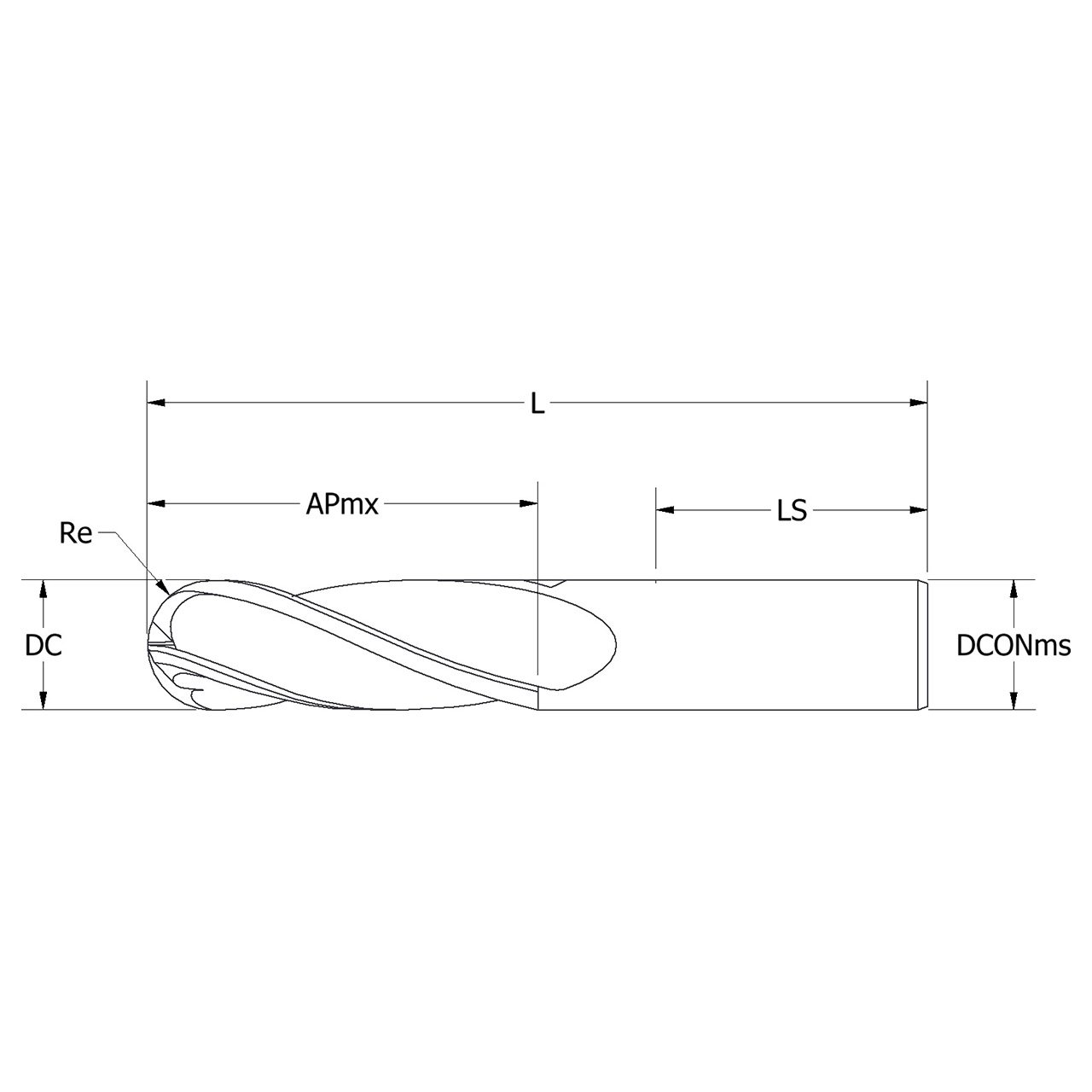

Product Specifications
| # Manufacturer Number | 976-000-513 |
| Cutting Diameter (Decimal Inch) | 0.3750" |
| Connection Diameter (Decimal Inch) | 0.3750" |
| Maximum Axial Depth of Cut (Decimal Inch) | 1.2500" |
| Overall Length (Decimal Inch) | 3.0000" |
| Cutting Edge Corner Radius (Decimal Inch) | 0.1875" |
| Cutting Edge Count | 4 |
| Tool Material | Carbide |
| Connection Type | Shank |
| Cutting Direction | Right Hand |
| Coating | AlCrN |
| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Keo
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Material:
Carbide
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Finish/Coating:
AlCrN
Cutting Direction:
Right
interval quantity:
1
