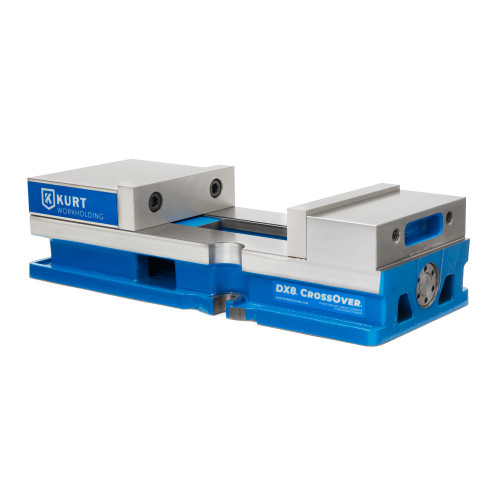

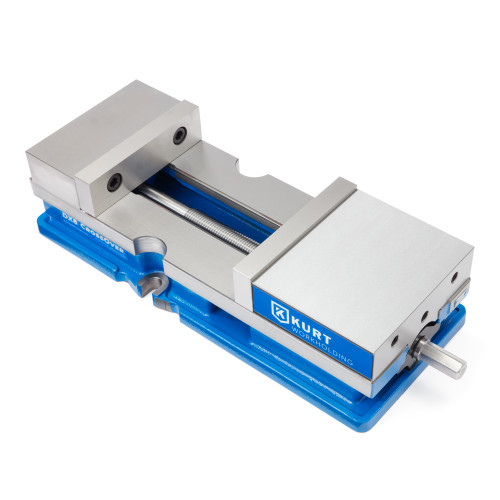

Kurt DX8 | 8" CrossOver Vise with 10" Opening

Description

The Kurt DX8 represents the pinnacle of versatile workholding technology, combining the precision of traditional milling vises with innovative crossover functionality for enhanced productivity in modern machine shops. This Kurt crossover vise features an 8-inch jaw width that accommodates a wide range of workpiece sizes while maintaining the compact footprint essential for maximizing machine table utilization. With a generous 10-inch maximum opening capacity, the Kurt 8-inch vise jaw dimensions enable clamping of oversized parts that exceed the capabilities of standard 6-inch vises. Engineered as a premium Kurt milling machine vise, the DX8 delivers exceptional clamping force distribution across the entire jaw face, preventing workpiece distortion during aggressive cutting operations. The crossover design philosophy integrates rapid positioning capabilities with precision ground-contact surfaces, reducing setup time without sacrificing accuracy. Hardened steel construction throughout critical components ensures dimensional stability and wear resistance during continuous production cycles. The Kurt workholding vise incorporates anglock technology that prevents jaw lift under heavy side loads, maintaining part position during multi-axis machining operations. Precision-ground base surfaces interface seamlessly with machine tables, providing reliable repeatability when vises are repositioned between jobs. The kurt machining vise features a quick-adjust handle that enables rapid jaw positioning followed by final tightening for secure clamping. Replaceable jaw inserts protect machined surfaces while allowing customization for specific workpiece geometries. The robust casting design resists deflection under maximum clamping forces, ensuring consistent part location across production runs. Dual dowel pin holes in the base facilitate accurate vise alignment on machine tables equipped with grid systems.

Product Features and Benefits

8-Inch Jaw Width Capacity

The Kurt 8-inch vise jaw dimensions accommodate diverse workpiece sizes, making this kurt crossover vise suitable for both small and medium production parts.

10-Inch Maximum Opening

Generous opening capacity on the Kurt DX8 enables clamping of oversized components that exceed standard vise capabilities in kurt milling machine vise applications.

Anglock Jaw Technology

Prevents jaw lift during side loading, ensuring the Kurt Workholding Vise maintains part position accuracy throughout multi-axis machining operations.

Hardened Precision Components

Critical surfaces on the kurt machining vise feature hardened steel construction, delivering extended service life and dimensional stability under heavy use.

Quick-Adjust Positioning System

Rapid jaw movement followed by final tightening reduces setup time, increasing productivity with the kurt crossover vise in production environments.

Clamping Force Pounds

Technical Files

Kurt-DX8-vise

Ironclad, lifetime warranty from Kurt

Count on your Kurt DX8 vise for a lifetime of service, backed by Kurt’s Ironclad Warranty.

Kurt DX8 Vise Dimensions

Frequently Asked Questions

What workpiece sizes can the Kurt DX8 accommodate?

With Kurt 8-inch vise jaw dimensions and a 10-inch opening, this kurt crossover vise handles parts from small components to large castings efficiently.

How does Anglock technology benefit the kurt milling machine vise?

The Kurt DX8 Anglock system prevents jaw lift during side loads, maintaining part accuracy that standard kurt workholding vise designs cannot achieve.

Can the kurt machining vise be easily repositioned on machine tables?

Yes, precision-ground base surfaces and dowel pin holes on the kurt crossover vise ensure repeatable positioning accuracy when relocated on machine tables.

What makes the Kurt DX8 suitable for production environments?

The quick-adjust feature and robust construction of this kurt milling machine vise enable rapid setups and consistent clamping throughout production runs.

Are replacement jaws available for the kurt workholding vise?

Yes, the KURT DX8 accepts replaceable jaw inserts, allowing customization for specific applications while extending the kurt machining vise service life.
