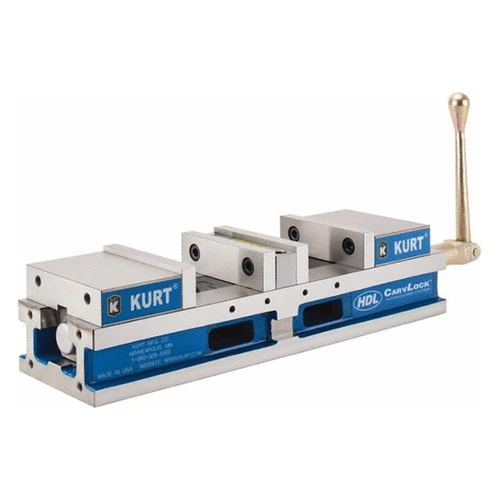

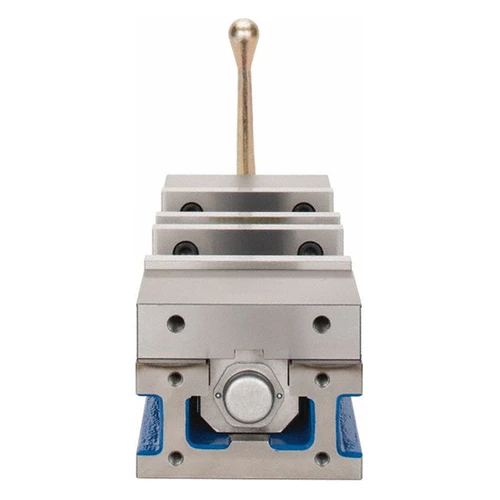

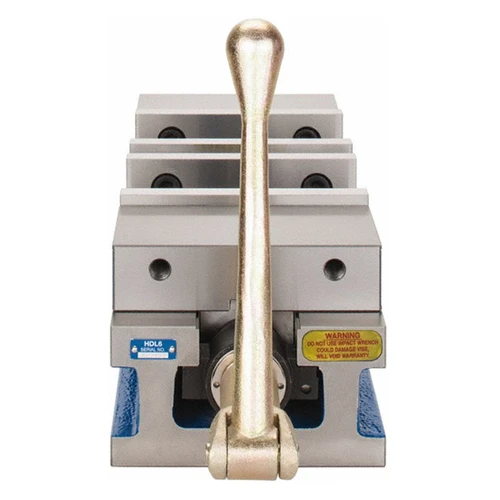

Kurt HDL6J | Double Station Machine Vise Anglock CNC 4" Opening Workholding

The HDL6J is a 6 inch wide High Density double station vise. This vise features quick change standard Kurt hard jaws with English fasteners.

Features

• Manufacturer Part # HDL6J
• Weight: 125 lbs
• The Kurt HDL6J double station (double lock) vise is hydraulic with hard jaws
• 80,000 PSI ductile iron body, bed hardened to Rc 45 minimum to resist wear
• Design eliminates clamping deflection by transmitting equal and opposing forces into the stationary jaw

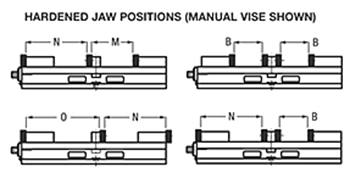

• Permits clamping in 4 positions
• Body height matched to within +/-.001"
• Specifications: jaw width: 6"; jaw opening 4"; style vise only jaw depth: 1.485"
• Buy from us, register with Kurt, and take advantage of their lifetime warranty
• Made in USA

Kurt DX6 Vise Dimensions

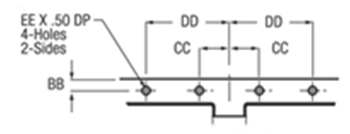

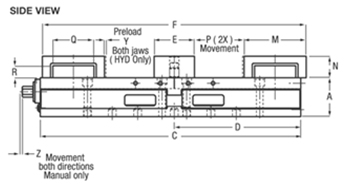

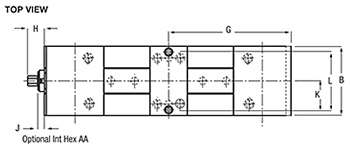

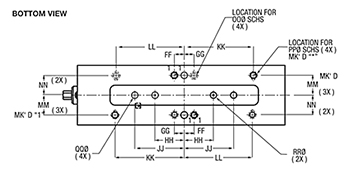

Dimensional Data

	Inch	MM
A	3.125	79.375
B	6.000	152.400
C	21.000	533.400
D	10.192	258.877
E	3.250	82.550
F	21.250	539.750
G	10.625	269.875
H	1.450	36.830
J	0.860	21.844
K	2.500	63.500
L	5.000	127.000
M	5.000	127.000
N	1.728	43.891
O	6.000	152.400
P	4.000	101.600
Q	3.312	84.125
R	0.969	24.613
S	0.522	13.259
T	0.750	19.050
T	EXT HEX	EXT HEX
U	0.438	11.125
V	2.125	53.975
W	3.875	98.425
X	M10x1.5	M10x1.5
Z	0.156	3.962
AA	0.625	15.875
AA	INT HEX	INT HEX
BB	0.438	11.125
CC	1.125	28.575
DD	3.125	79.375
EE	M8x1.25	M8x1.25
FF	1.000	25.400
GG	0.984	25.000
HH	2.9528	75.000
JJ	5.000	127.000
KK	7.000	177.800
LL	6.890	175.000
MM	2.000	50.800
NN	1.969	50.000
OO	M12 SHCS	M12 SHCS
PP	1/2 SCHS	1/2 SCHS
QQ	0.625	15.875
RR	0.6299	16.000
