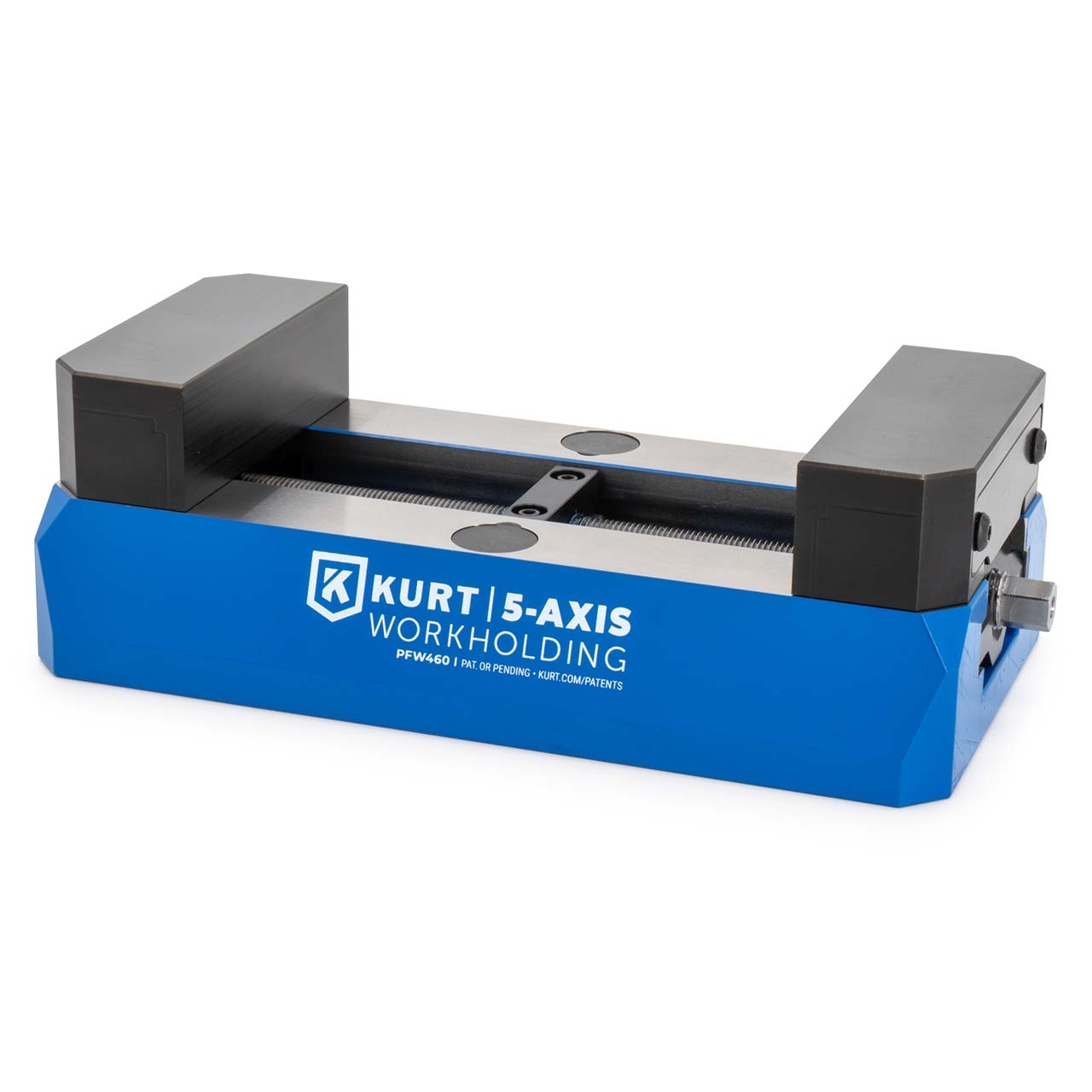

Introducing the New Kurt PFW460 5-Axis 96mm vise. Featuring three vise-body sizes and three jaw options, our new wide-body design allows mounting using a 96mm pull-stud pattern on Kurt zero-point quick-release pallets. Choose any of three jaw options including, serrated, machinable or dovetailed styles in 4-inch widths. Kurt 5-Axis vises allow maximum part accessibility for done-in-1 machining operations on 3-, 4- or 5-axis machines. User-friendly features include, quick-change jaws, spring-loaded gibs, quick-lash adjustment, hexes on both ends of the vise and side-body pull stud locations for robotic machine tending and pick and place.
The new Quick Lash Adjustment makes center-line movement fast and efficient and keeps parts perfectly positioned and vises in the field longer with less downtime through the usual wear and break in periods. New spring-loaded gibs keep parts square and are designed to maximize part-positioning repeatability through multiple cycles. Kurt’s PFW420, PFW440 and PFW460 vises come with 4-inch wide jaws and openings ranging from 2.625″ to 6.625″, making them the perfect vise for any 3, 4 or 5-axis machines milling small- to medium-sized parts. PFW-series 5-axis vises feature the patented Kurt AngLock design to minimize jaw lift and deflection. The proven AngLock design naturally pushes the vise jaws down and forward allowing much greater surface contact on parts—maximizing holding strength with less clamp force.
Features:
| Manufacturer Part Number | PFW460 |
| Product Type | Machine Vise |
| Torque Ft-Lbs. | Force in lbs. |
| 10 | 720 |
| 20 | 1520 |
| 30 | 2250 |
| 40 | 3050 |
| 45 | 3375 |
