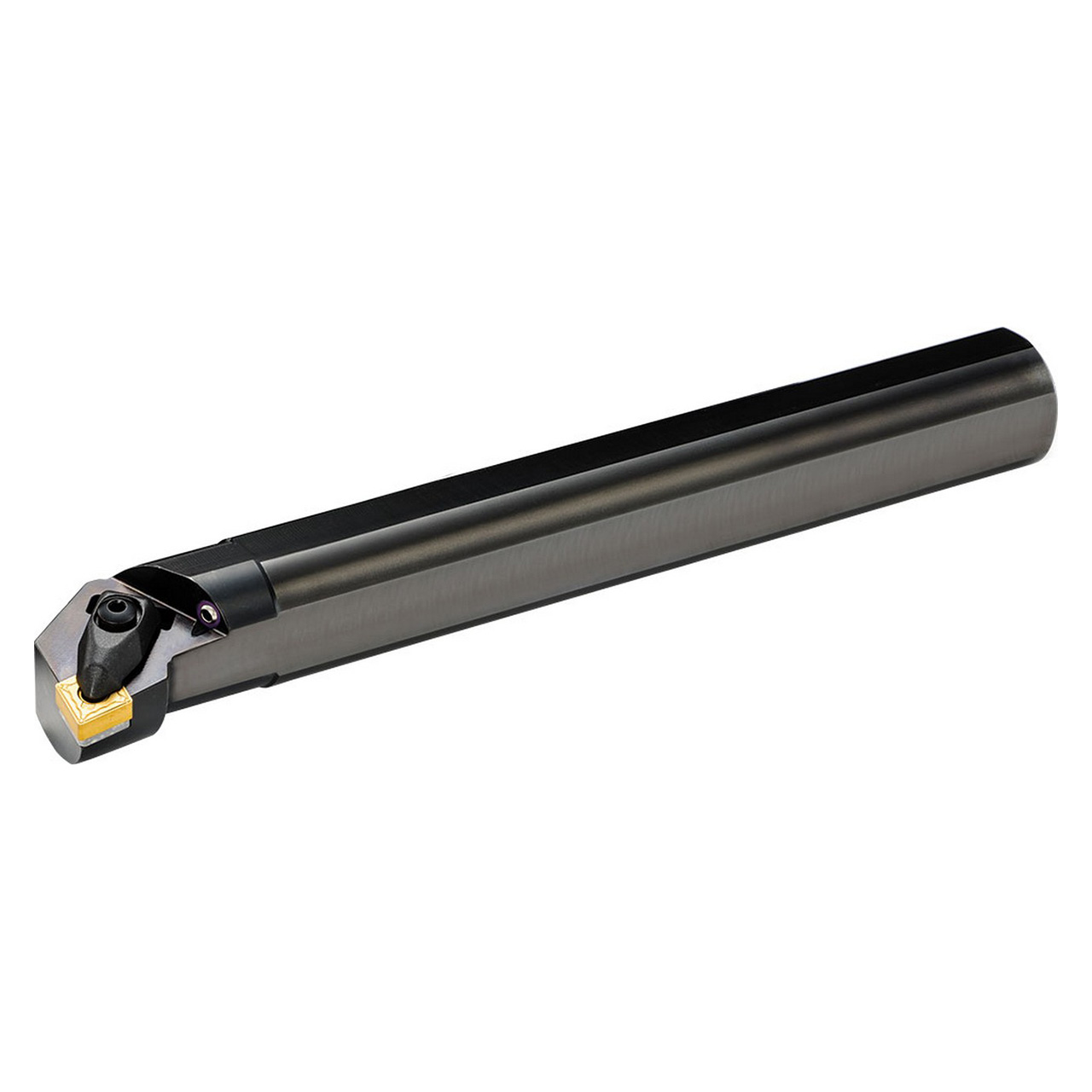

Kyocera Precision Tools 8606612 | A24TDCLNR4 1.5000" Diameter Right-Hand Steel Indexable Boring Bar

$456.40 $378.81
(You save $77.59)
Brand:
Kyocera Precision Tools
Toolholder Style:
A...DCLN
Series:
DBCB;Minimum Bore Diameter (Decimal Inch)=1.7500"
Minimum Bore Diameter (mm):
44.45mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
1.5000"
Shank Diameter (mm):
38.10mm
Through Coolant:
Yes
Merchandising Boost Rule:
Yes
interval quantity:
1
SKU:
23221709
UPC:
Weight:
5.70 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Firmly clamps the insert in two directions with a single action maintaining good contact between the shim and the insert even during high feed rates
  • Adjustable coolant discharge for various applications and insert types
  • Improved insert position accuracy with greater insert life
  • Improved machining stability
  • Increased clamping rigidity

Product Specifications
EDP Number8606612
Connection Diameter (Decimal Inch)1.5000"
Connection Diameter (mm)38.10mm
Minimum Bore Diameter (Decimal Inch)1.7500"
Minimum Bore Diameter (mm)44.45mm
Shank Height (Decimal Inch)1.3740"
Shank Height (mm)34.90mm
Tool Entering Angle ( Degree)95 Degree
ApplicationBoring | Internal Facing
Bar TypeSteel Shank
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodDouble Clamp
Insert Shape80 Degree Diamond
MaterialSteel
