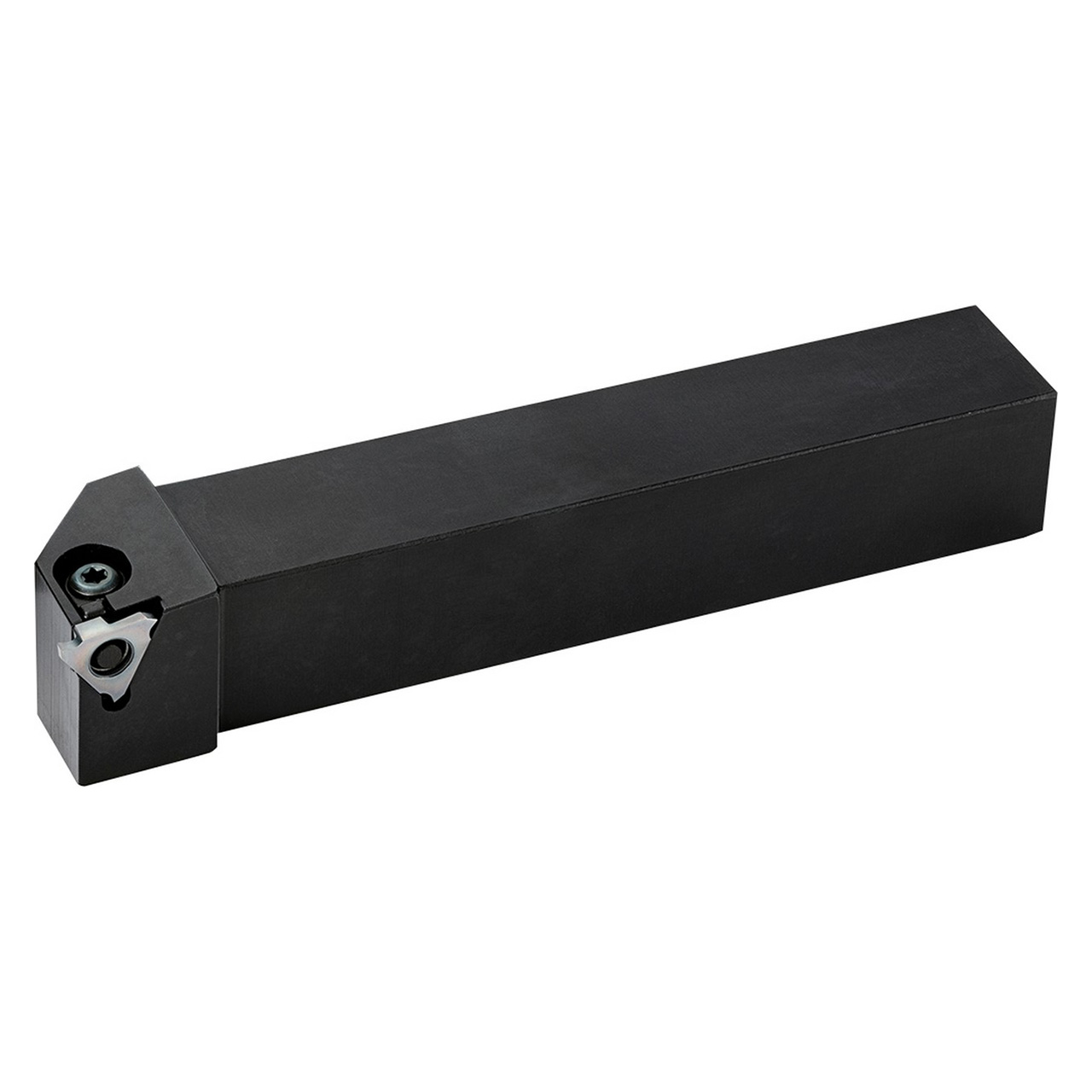

Features:
- Uses economical inserts with 3 cutting edges
- Large lineup of chipbreakers and insert grades to choose from
- Smooth chip control and various applications
- Compatible with GBA43R inserts
Product Specifications
| EDP Number | 8805053 |
| Shank Width (Decimal Inch) | 1.0000" |
| Shank Width (mm) | 25.40mm |
| Max Depth of Cut (Decimal Inch) | 0.1772" |
| Max Depth of Cut (mm) | 4.50mm |
| Cutting Width (Decimal Inch) | 0.0941 - 0.1299" |
| Cutting Width (mm) | 2.39 - 3.30mm |
| Cutting Width Minimum (Decimal Inch) | 0.0941" |
| Cutting Width Minimum (mm) | 2.39mm |
| Cutting Width Maximum (Decimal Inch) | 0.1299" |
| Cutting Width Maximum (mm) | 3.30mm |
| Shank Height (Decimal Inch) | 1.0000" |
| Shank Height (mm) | 25.40mm |
| Application | Shallow Grooving |
| Grooving Type | External Grooving |
| Hand | Right Hand |
| Insert Holding Method | Lever Lock / Lock Pin |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Type:
External Grooving
Hand of Holder:
Right-Hand
Maximum Depth of Cut (Decimal Inch):
0.1772"
Maximum Depth of Cut (mm):
4.50mm
Toolholder Style:
KGBA
Shank Height (Decimal Inch):
1.0000"
Shank Height (mm):
25.40mm
Shank Width/Diameter (Decimal Inch):
1.0000"
Shank Width/Diameter (mm):
25.40mm
Series:
GBA;Through Coolant=No"
