Features:

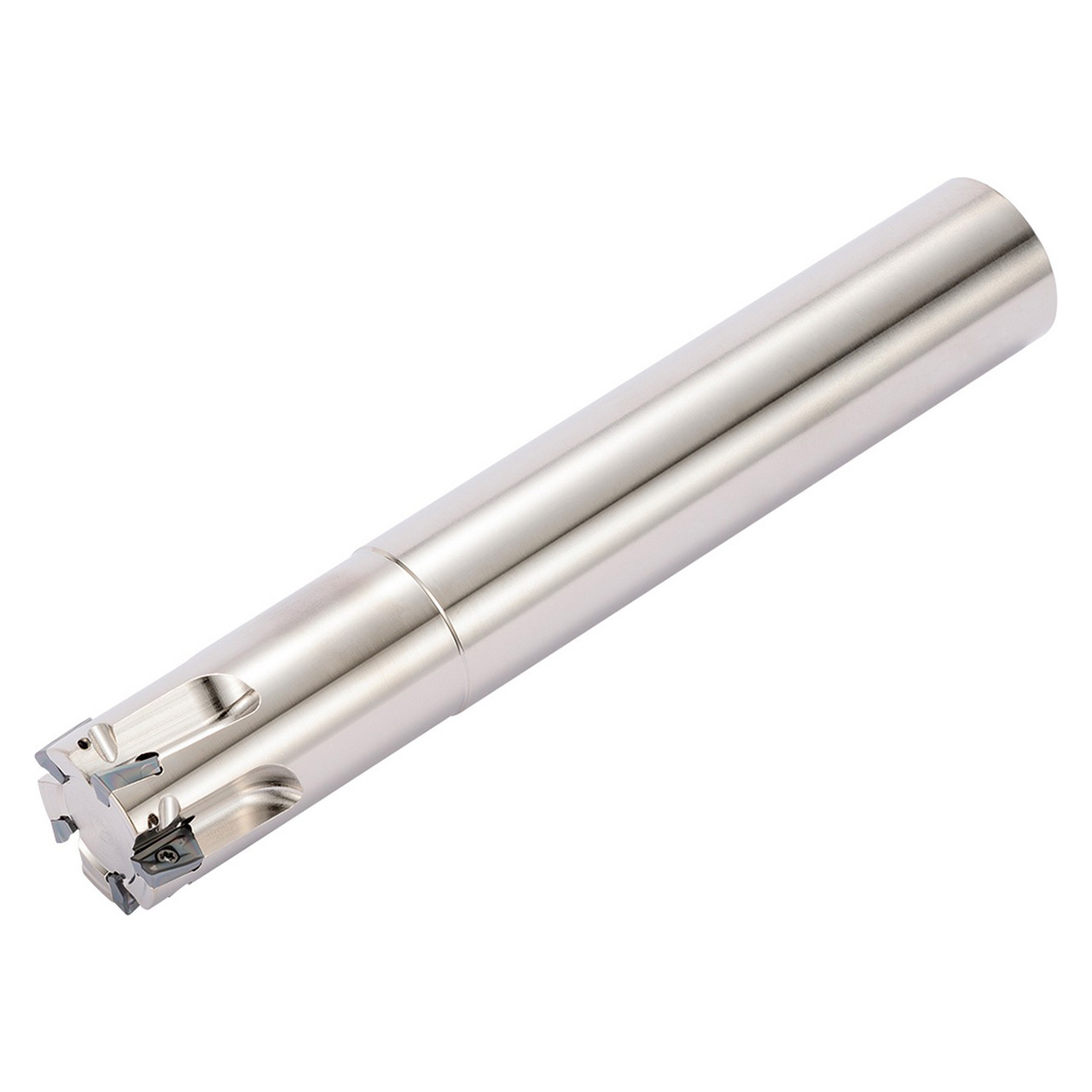

- Right-Hand, long length, 90 Degree lead angle end mill
- Shouldering, facing, slotting, ramping, helical milling, plunging applications
- Compatible with BDMT11T3ER-JT, BDMT11T3ER-JS, BDGT11T3FR-JA BDGT11T3FR, BDMT11T3FR inserts
Product Specifications
| EDP Number | 8819522 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937" |
| Maximum Depth of Cut (mm) | 15.70mm |
| Cutting Diameter (Decimal Inch) | 1.2500" |
| Cutting Diameter (mm) | 31.75mm |
| Cutting Diameter Minimum (Decimal Inch) | 1.2500" |
| Cutting Diameter Minimum (mm) | 31.75mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.2500" |
| Cutting Diameter Maximum (mm) | 31.75mm |
| Connection Diameter (Decimal Inch) | 1.2500" |
| Connection Diameter (mm) | 31.75mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Long Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1-1/4"
Cutting Diameter (Decimal Inch):
1.2500"
Cutting Diameter (mm):
31.75mm
Maximum Depth of Cut (Inch):
25/64"
Maximum Depth of Cut (Decimal Inch):
0.3937"
Maximum Depth of Cut (mm):
10mm
Shank Type:
Long Length
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
Number of Cutter Inserts:
2
Toolholder Style:
MEC
