Features:

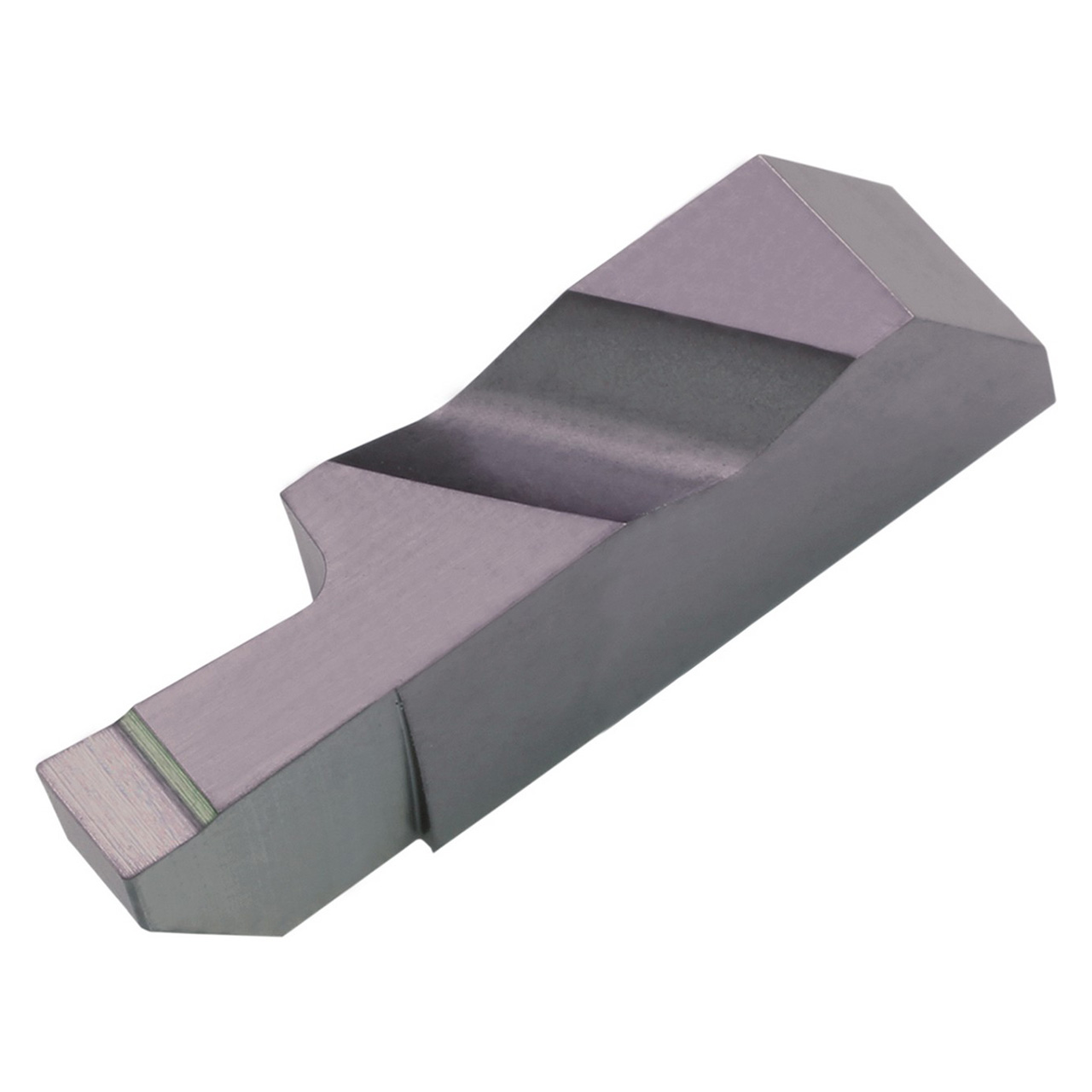

| Tool Number | 8850690 |
| Max Depth of Cut (Decimal Inch) | 0.2500" |
| Max Depth of Cut (mm) | 6.35mm |
| Cutting Width (Decimal Inch) | 0.0941" |
| Cutting Width (mm) | 2.39mm |
| Cutting Width Minimum (Decimal Inch) | 0.0941" |
| Cutting Width Minimum (mm) | 2.39mm |
| Cutting Width Maximum (Decimal Inch) | 0.0941" |
| Cutting Width Maximum (mm) | 2.39mm |
| Insert Length (Decimal Inch) | 0.9902" |
| Insert Length (mm) | 25.15mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 0.344" |
| Thickness (mm) | 8.74mm |
| Application | External Grooving | Internal Large Diameter Shallow Grooving |
| Coating Process | PVD |
| Cutting Range | Finishing |
| Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Grade | PR1215 |
| Insert Size | 3094 |
| Material | Carbide |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
