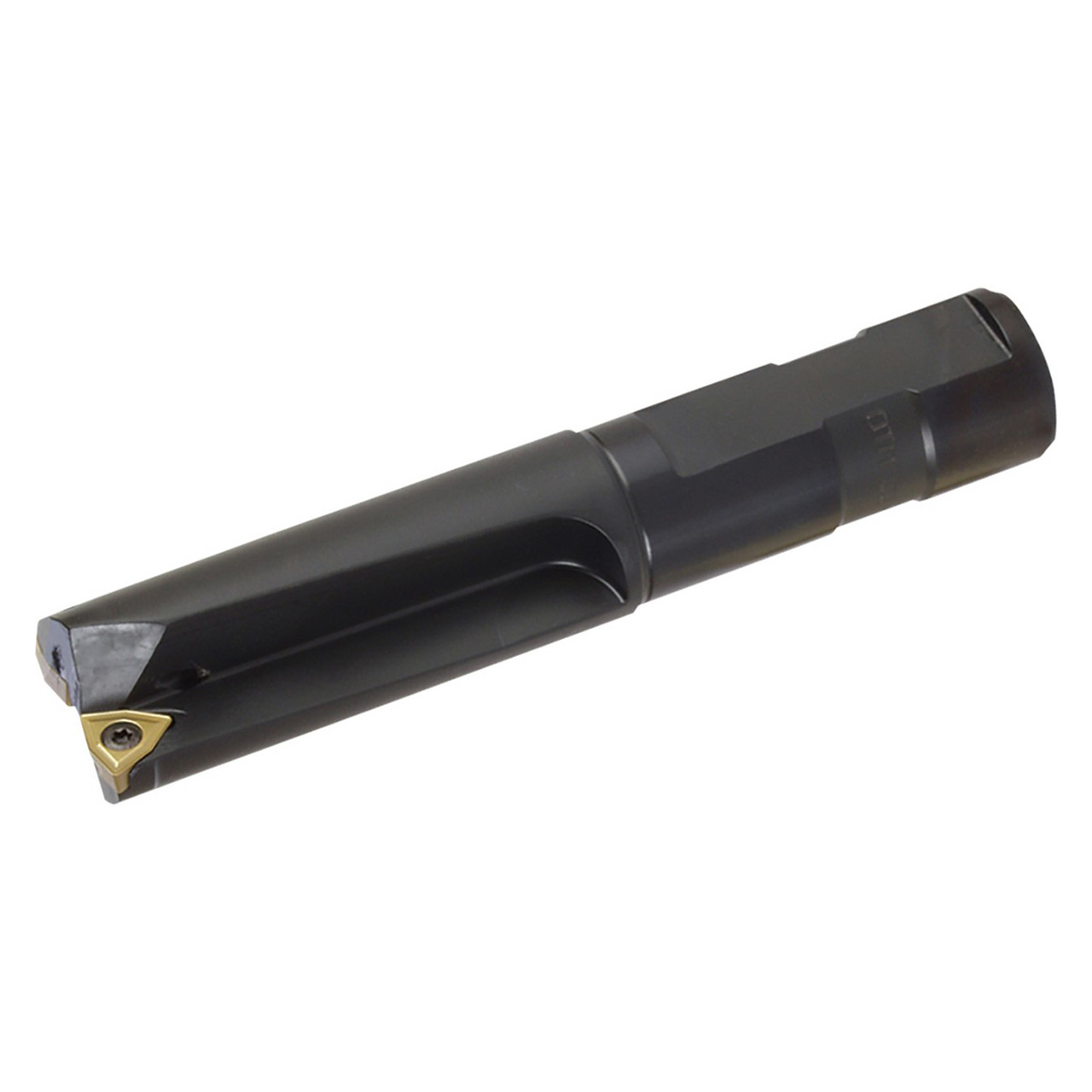

Features:
- Fast and effective way to expand pre-existing holes
- Superior fracture resistance and long tool life with MEGACOAT coating technology
- Two effective flutes allow high feed rates for improved productivity
Product Specifications
| EDP Number | OTM86076 |
| Cutting Diameter (Decimal Inch) | 1.3032" |
| Cutting Diameter (mm) | 33.10mm |
| Cutting Diameter Minimum (Decimal Inch) | 1.3032" |
| Cutting Diameter Minimum (mm) | 33.10mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.3032" |
| Cutting Diameter Maximum (mm) | 33.10mm |
| Connection Diameter (Decimal Inch) | 1.0000" |
| Connection Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.3752" |
| Contact Surface Diameter Machine Side (mm) | 34.93mm |
| Usable Length (Decimal Inch) | 3.0000" |
| Usable Length (mm) | 76.20mm |
| Application | Drilling |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Drill Style:
CD-XL
Drill Diameter (Decimal Inch):
1.3032
Drill Diameter (mm):
33.10
Maximum Drill Depth (Decimal Inch):
3.0000
Maximum Drill Depth (mm):
76.20
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.0000
Shank Diameter (mm):
25.40
Through Coolant:
Yes
