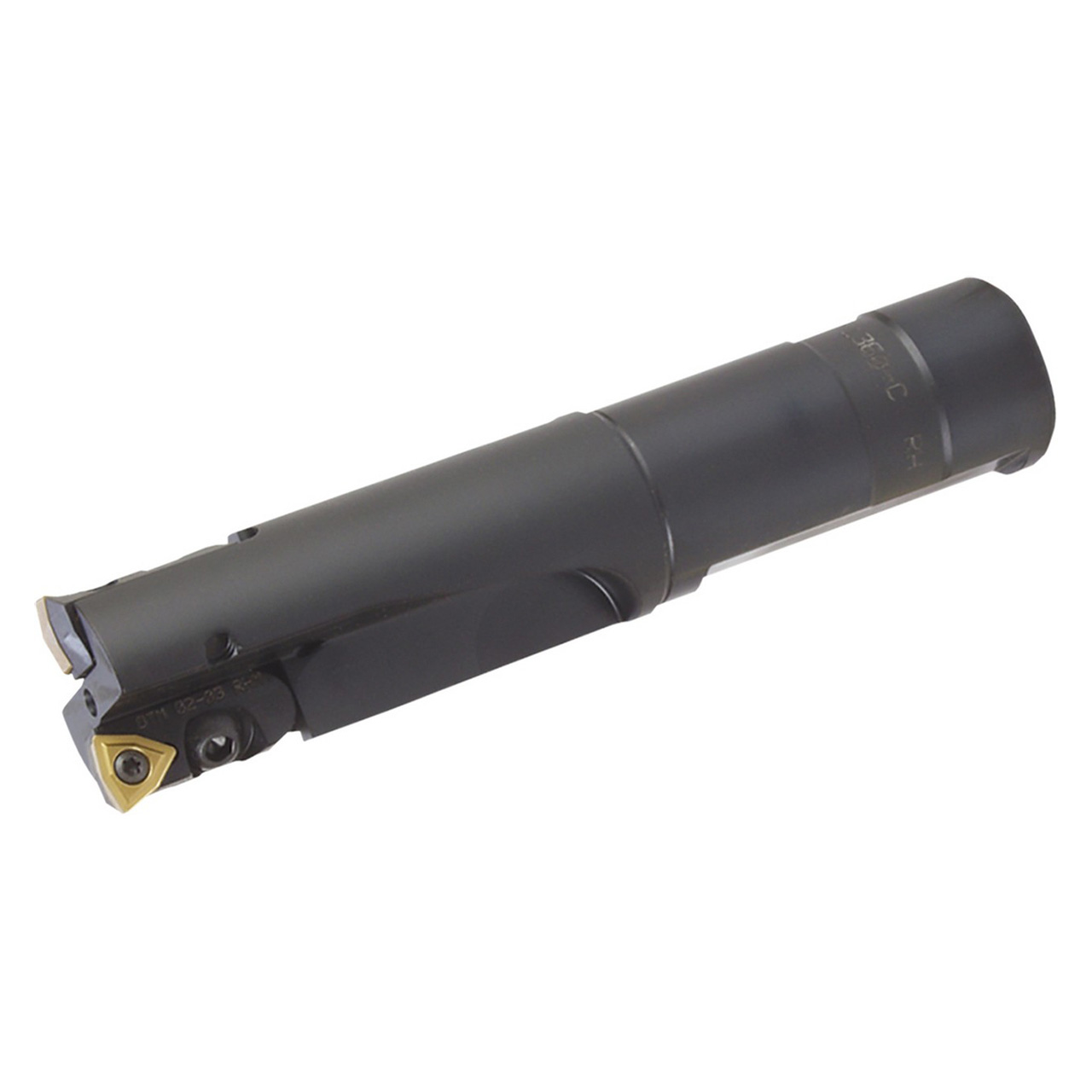

Features:
- Fast and effective way to expand pre-existing holes
- Superior fracture resistance and long tool life with MEGACOAT coating technology
- Two effective flutes allow high feed rates for improved productivity
- Coremaster coredrill in both fixed pocket and adjustable cartridge
- Adjustable cartridges can be adjusted 0.075" per side, providing 0.150" adjustment capability on diameter
Product Specifications
| EDP Number | OTM86080 |
| Cutting Diameter (Decimal Inch) | 1.5000 - 1.6500" |
| Cutting Diameter (mm) | 38.10 - 41.91mm |
| Cutting Diameter Minimum (Decimal Inch) | 1.5000" |
| Cutting Diameter Minimum (mm) | 38.10mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.6500" |
| Cutting Diameter Maximum (mm) | 41.91mm |
| Connection Diameter (Decimal Inch) | 1.2500" |
| Connection Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.6299" |
| Contact Surface Diameter Machine Side (mm) | 41.40mm |
| Usable Length (Decimal Inch) | 3.5000" |
| Usable Length (mm) | 88.90mm |
| Application | Drilling |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Drill Style:
CD-LC
Drill Diameter (Decimal Inch):
1.5000 - 1.6500
Drill Diameter (mm):
38.10 - 41.91
Maximum Drill Depth (Decimal Inch):
3.5000
Maximum Drill Depth (mm):
88.90
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.2500
Shank Diameter (mm):
31.75
Through Coolant:
Yes
