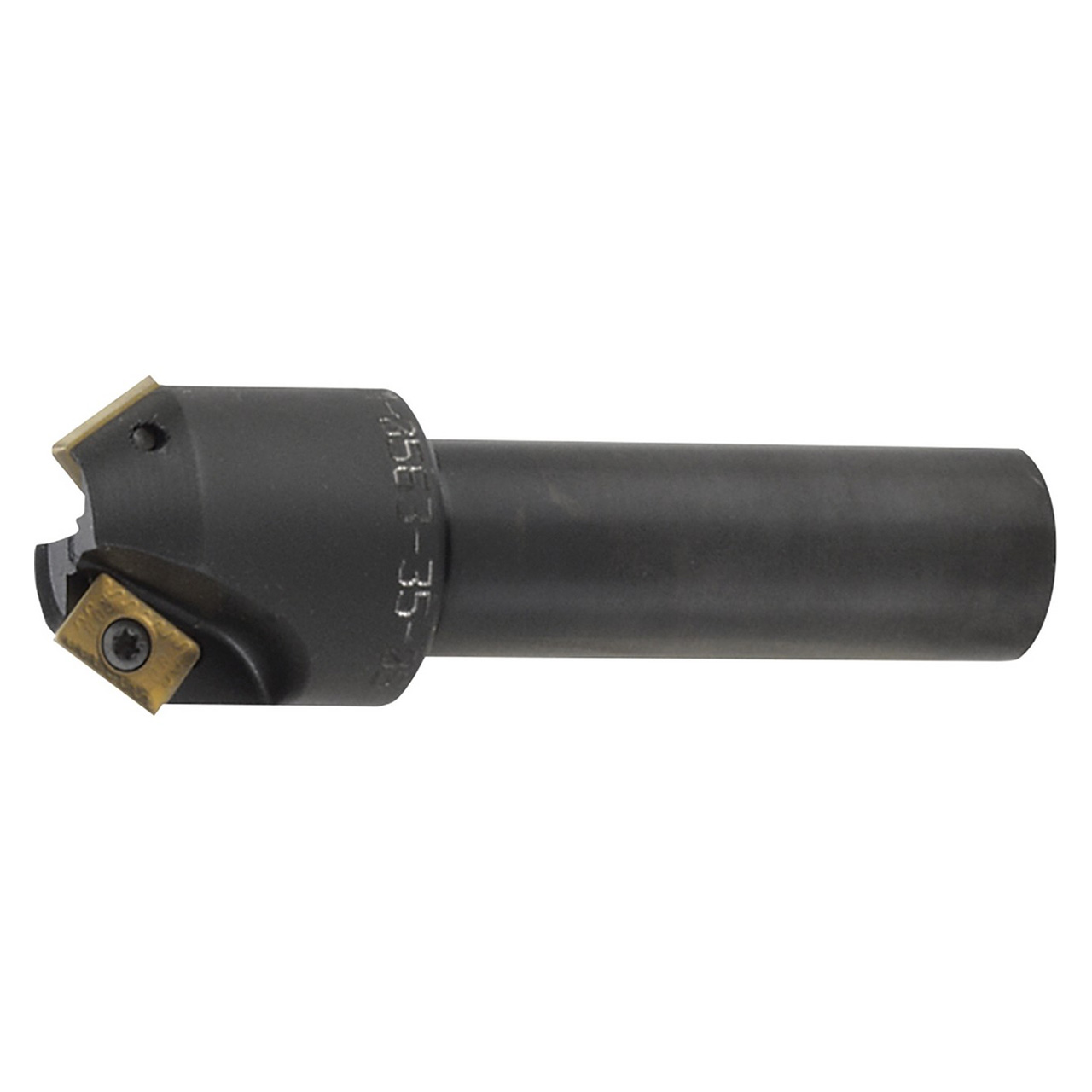

Kyocera Precision Tools OTM86112 | CM05634509 1.0410-1.0410" Diameter x 0.2400" Maximum Depth of Cut 2 Flute Steel Indexable Chamfering End Mill

$165.98
Brand:
Kyocera Precision Tools
Maximum Cutting Diameter (Inch):
1-3/64"
Maximum Cutting Diameter (Decimal Inch):
1.0410"
Maximum Cutting Diameter (mm):
26.44mm
Lead Angle:
45°
Shank Type:
Standard Length
Number of Flutes:
2
Shank Diameter (Decimal Inch):
0.6252"
Shank Diameter (mm):
15.88mm
SKU:
23222425
Weight:
0.77 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • For facing, chamfering, countersinking applications
  • Compatible with (2) XPMT090208 style inserts

Product Specifications
EDP NumberOTM86112
Maximum Depth of Cut (Decimal Inch)0.2400"
Cutting Width (Decimal Inch)0.2390"
Cutting Width (mm)6.07mm
Cutting Width Minimum (Decimal Inch)0.2390"
Cutting Width Minimum (mm)6.07mm
Cutting Width Maximum (Decimal Inch)0.2390"
Cutting Width Maximum (mm)6.07mm
Cutting Diameter (Decimal Inch)1.0410 - 1.0410"
Cutting Diameter (mm)26.44 - 26.44mm
Cutting Diameter Maximum (Decimal Inch)1.0410"
Cutting Diameter Maximum (mm)26.44mm
Connection Diameter (Decimal Inch)0.6252"
Connection Diameter (mm)15.88mm
Tool Entering Angle ( Degree)45 Degree
ApplicationChamfering | Countersinking | Facing
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeStandard Length
