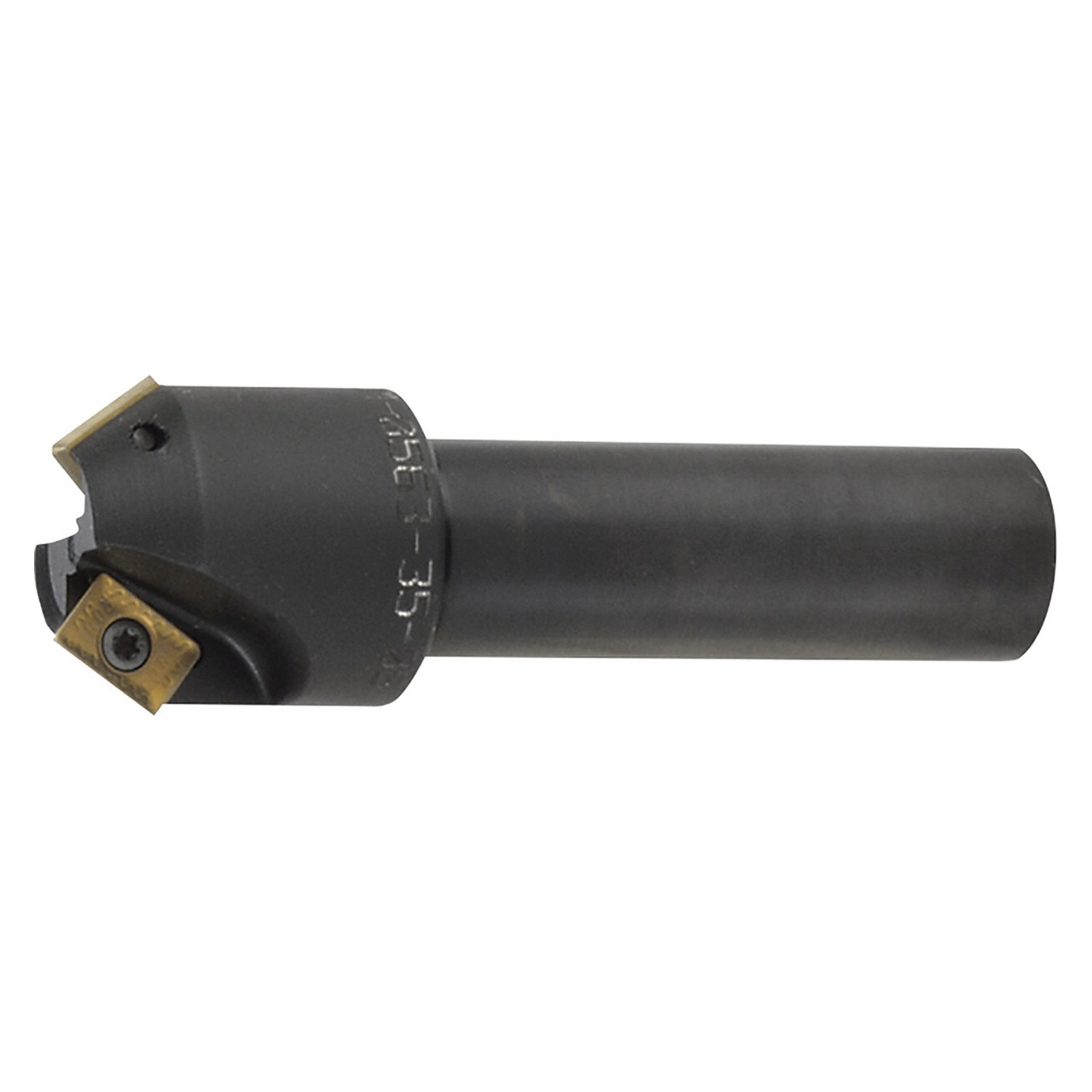

Kyocera Precision Tools OTM86134 | CM100060 2.0421-2.0421" Diameter x 0.2840" Maximum Depth of Cut 2 Flute Steel Indexable Chamfering End Mill

$200.58
Brand:
Kyocera Precision Tools
Maximum Cutting Diameter (Inch):
2-3/64"
Maximum Cutting Diameter (Decimal Inch):
2.0421"
Maximum Cutting Diameter (mm):
51.87mm
Lead Angle:
60°
Shank Type:
Standard Length
Number of Flutes:
2
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
SKU:
23222447
Weight:
0.95 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • For facing, chamfering, countersinking applications
  • Compatible with (2) XPMT15T3 style inserts

Product Specifications
EDP NumberOTM86134
Maximum Depth of Cut (Decimal Inch)0.2840"
Maximum Depth of Cut (mm)13.36mm
Cutting Width (Decimal Inch)0.5209"
Cutting Width (mm)13.23mm
Cutting Width Minimum (Decimal Inch)0.5209"
Cutting Width Minimum (mm)13.23mm
Cutting Width Maximum (Decimal Inch)0.5209"
Cutting Width Maximum (mm)13.23mm
Cutting Diameter (Decimal Inch)2.0421 - 2.0421"
Cutting Diameter (mm)51.87 - 51.87mm
Cutting Diameter Maximum (Decimal Inch)2.0421"
Cutting Diameter Maximum (mm)51.87mm
Connection Diameter (Decimal Inch)0.7500"
Connection Diameter (mm)19.05mm
Tool Entering Angle ( Degree)60 Degree
ApplicationChamfering | Countersinking | Facing
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeStandard Length
