Features:
- Sharp cutting with enhanced chip evacuation
- Superior fracture resistance and long tool life with MEGACOAT NANO coating technology
- Flute designs optimized for maximum rigidity and good chip evacuation

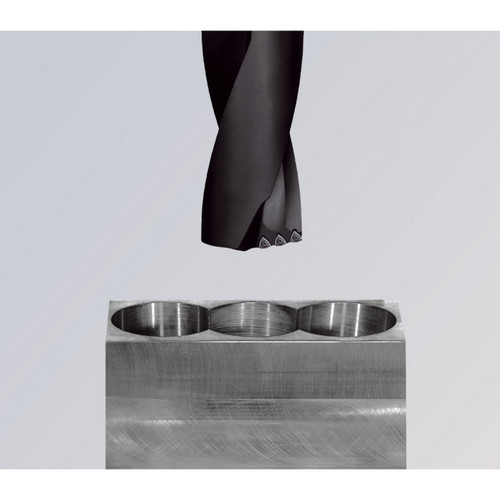

- Patented swept back design enables drilling of stacked plates and welded assemblies, reduces slug formation, and provides excellent chip control
Product Specifications
| EDP Number | OTM86159 |
| Maximum Depth of Cut (mm) | 8.31mm |
| Cutting Diameter (Decimal Inch) | 0.6882" |
| Cutting Diameter (mm) | 17.48mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.6882" |
| Cutting Diameter Minimum (mm) | 17.48mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.6882" |
| Cutting Diameter Maximum (mm) | 17.48mm |
| Connection Diameter (Decimal Inch) | 0.7500" |
| Connection Diameter (mm) | 19.05mm |
| Usable Length (Decimal Inch) | 2.0598" |
| Usable Length (mm) | 52.32mm |
| Application | Drilling |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Drill Style:
DR
Drill Diameter (Decimal Inch):
0.6882
Drill Diameter (mm):
17.48
Maximum Drill Depth (Decimal Inch):
2.0598
Maximum Drill Depth (mm):
52.32
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.7500
Shank Diameter (mm):
19.05
Through Coolant:
Yes
