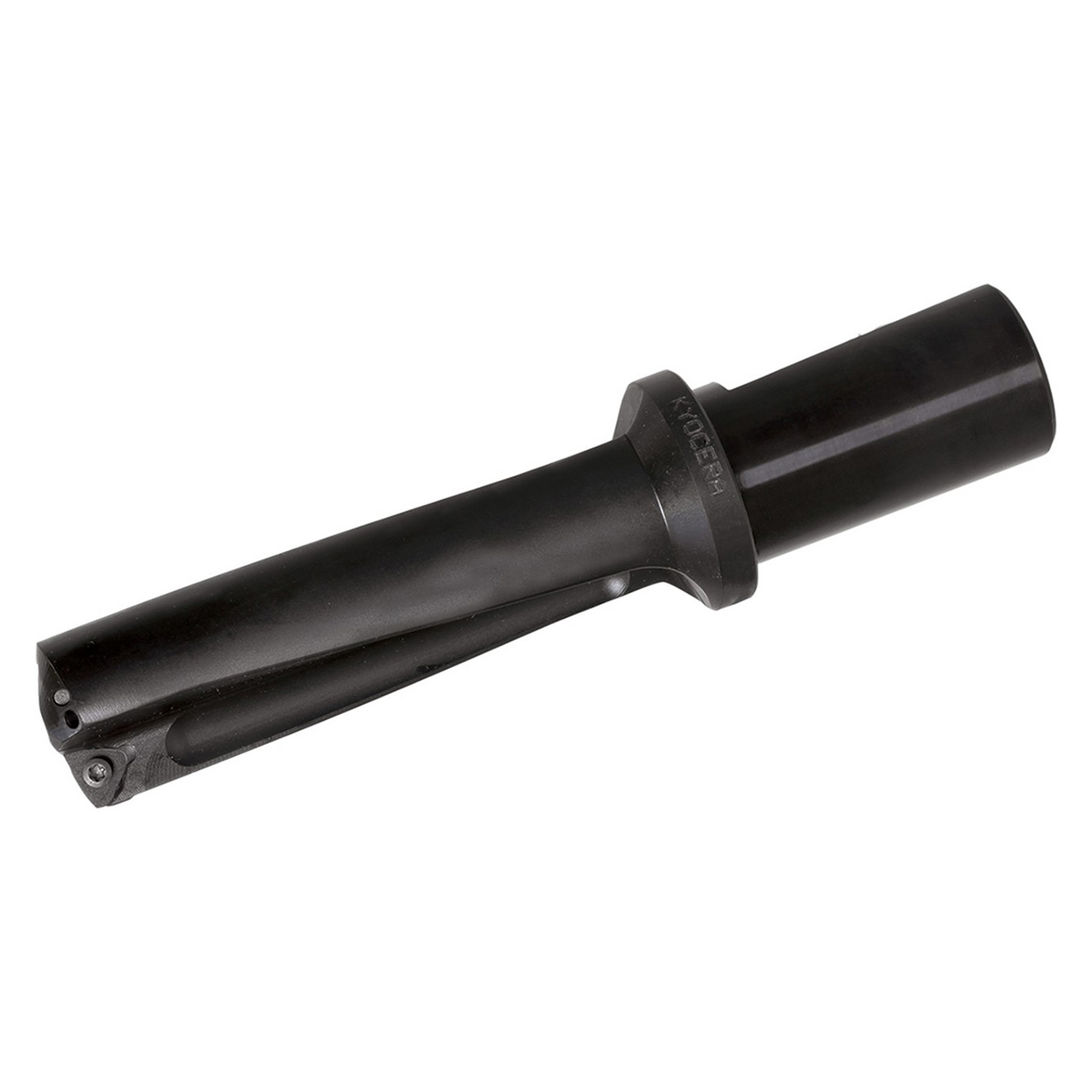

Kyocera Precision Tools OTM86179 | DR0969X3N 0.969" Diameter x 2.910" Usable Length 2 Flute Steel Indexable Insert Drill

SKU: 23222477 Weight: 1.00 LBS Minimum Purchase: 1 unit
UPC:
$668.27 $554.66
(You save $113.61)
Shipping: Free Shipping

About This Item

Features:

  • Sharp cutting with enhanced chip evacuation
  • Superior fracture resistance and long tool life with MEGACOAT NANO coating technology
  • Flute designs optimized for maximum rigidity and good chip evacuation

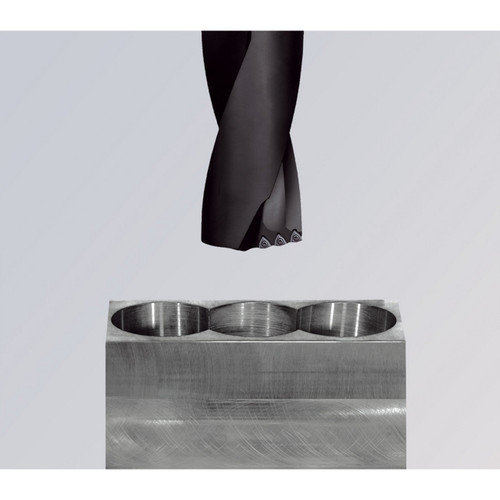

  • Patented swept back design enables drilling of stacked plates and welded assemblies, reduces slug formation, and provides excellent chip control

Product Specifications
EDP NumberOTM86179
Cutting Diameter (Decimal Inch)0.9689"
Cutting Diameter (mm)24.61mm
Cutting Diameter Minimum (Decimal Inch)0.9689"
Cutting Diameter Minimum (mm)24.61mm
Cutting Diameter Maximum (Decimal Inch)0.9689"
Cutting Diameter Maximum (mm)24.61mm
Connection Diameter (Decimal Inch)1.0000"
Connection Diameter (mm)25.40mm
Usable Length (Decimal Inch)2.9098"
Usable Length (mm)73.91mm
ApplicationDrilling
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeStandard Length
Weldon FlatYes
