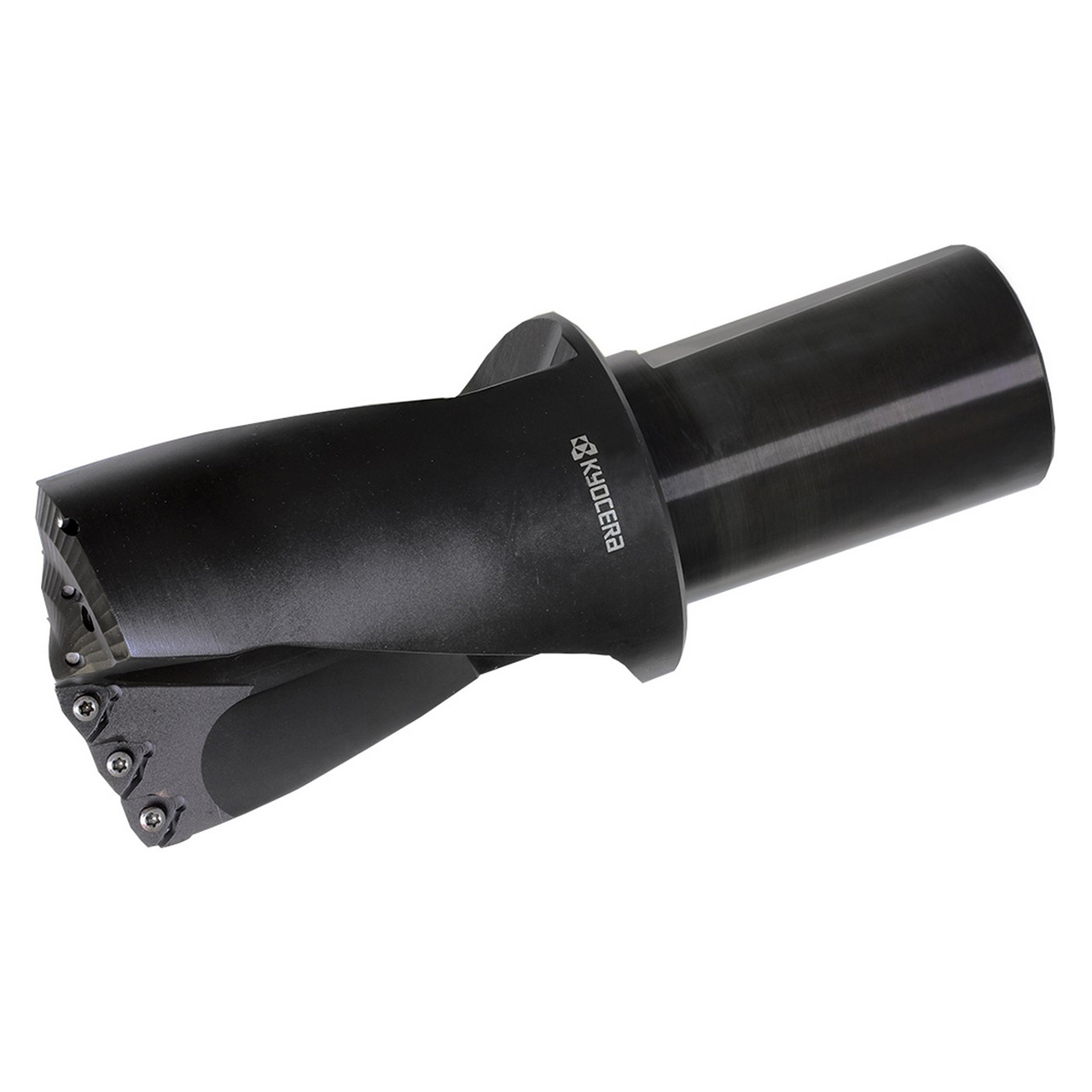

Kyocera Precision Tools OTM86262 | DR1750X3N 1.750" Diameter x 5.250" Usable Length 4 Flute Steel Indexable Insert Drill

SKU: 23222534 Weight: 3.70 LBS Minimum Purchase: 1 unit
UPC:
$1,020.00 $846.60
(You save $173.40)
Shipping: Calculated at Checkout

About This Item

Features:

  • Sharp cutting with enhanced chip evacuation
  • Superior fracture resistance and long tool life with MEGACOAT NANO coating technology
  • Flute designs optimized for maximum rigidity and good chip evacuation

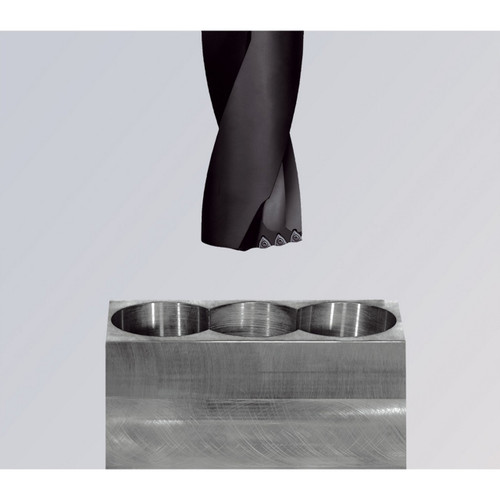

  • Patented swept back design enables drilling of stacked plates and welded assemblies, reduces slug formation, and provides excellent chip control

Product Specifications
EDP NumberOTM86262
Cutting Diameter (Decimal Inch)1.7500"
Cutting Diameter (mm)44.45mm
Cutting Diameter Minimum (Decimal Inch)1.7500"
Cutting Diameter Minimum (mm)44.45mm
Cutting Diameter Maximum (Decimal Inch)1.7500"
Cutting Diameter Maximum (mm)44.45mm
Connection Diameter (Decimal Inch)1.5000"
Connection Diameter (mm)38.10mm
Usable Length (Decimal Inch)5.2500"
Usable Length (mm)133.35mm
ApplicationDrilling
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes4
Number of Inserts4
Shank TypeStandard Length
Weldon FlatYes
