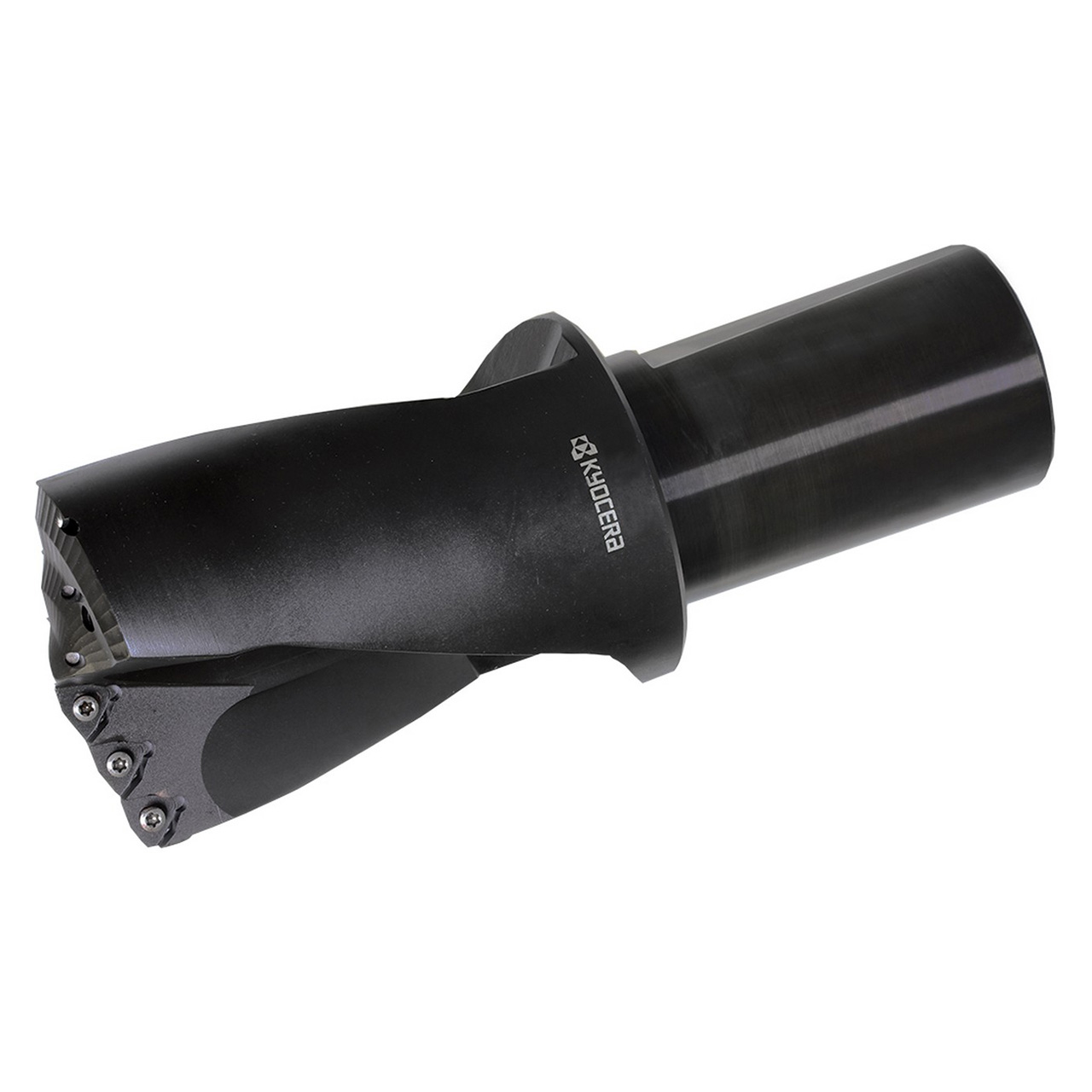

Kyocera Precision Tools OTM86317 | DR2219X1 2.219" Diameter x 2.310" Usable Length 4 Flute Steel Indexable Insert Drill

SKU: 23222570 Weight: 3.15 LBS Minimum Purchase: 1 unit
UPC:
$926.17 $768.72
(You save $157.45)
Shipping: Free Shipping

About This Item

Features:

  • Sharp cutting with enhanced chip evacuation
  • Superior fracture resistance and long tool life with MEGACOAT NANO coating technology
  • Flute designs optimized for maximum rigidity and good chip evacuation
  • Patented swept back design enables drilling of stacked plates and welded assemblies, reduces slug formation, and provides excellent chip control

Product Specifications
EDP NumberOTM86317
Cutting Diameter (Decimal Inch)2.2189"
Cutting Diameter (mm)56.36mm
Cutting Diameter Minimum (Decimal Inch)2.2189"
Cutting Diameter Minimum (mm)56.36mm
Cutting Diameter Maximum (Decimal Inch)2.2189"
Cutting Diameter Maximum (mm)56.36mm
Connection Diameter (Decimal Inch)1.5000"
Connection Diameter (mm)38.10mm
Usable Length (Decimal Inch)2.3098"
Usable Length (mm)58.67mm
ApplicationDrilling
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes4
Number of Inserts4
Shank TypeStandard Length
Weldon FlatYes
