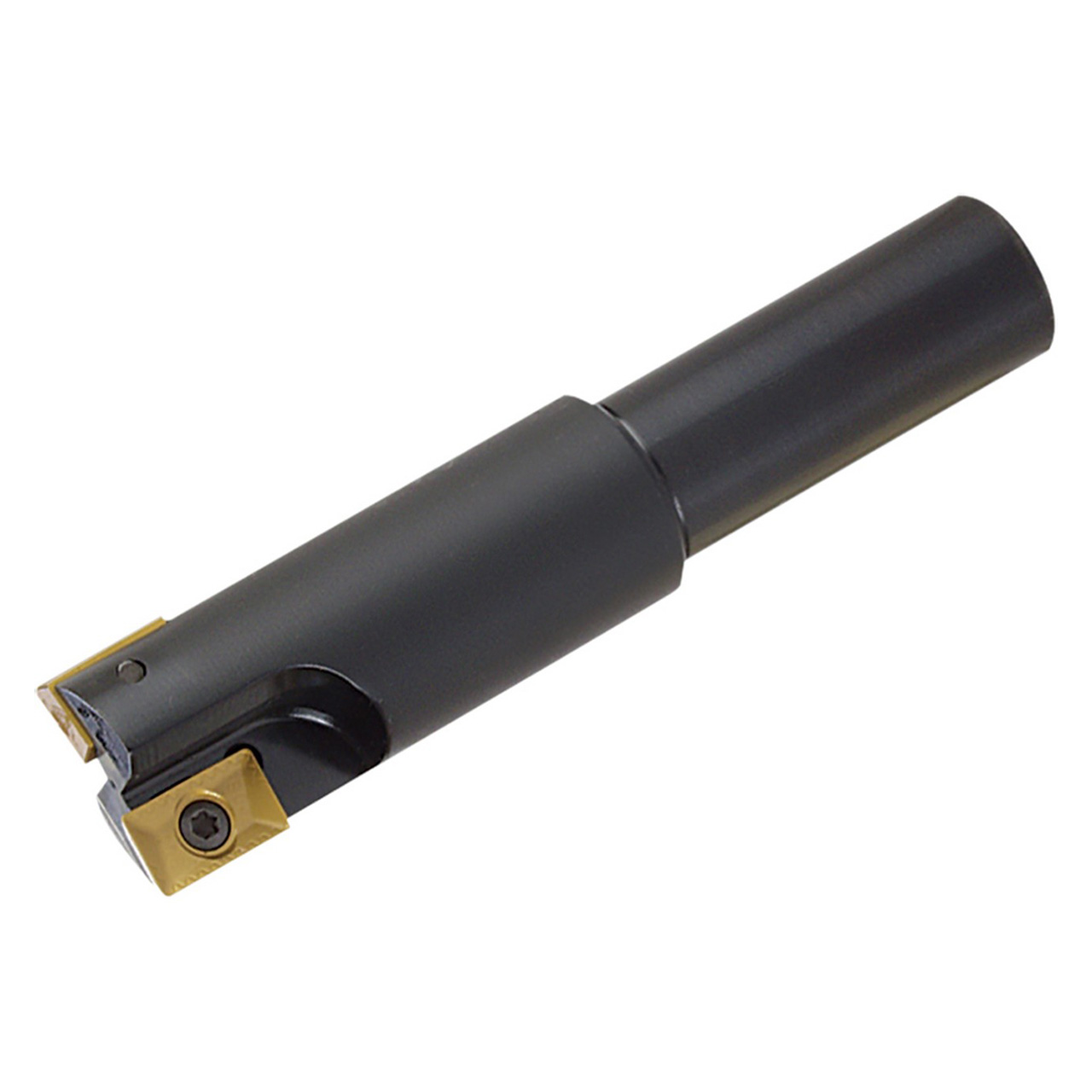

Kyocera Precision Tools OTM86400 | EM100025 1.000" Diameter x 90 Degree Angle 2 Flute Steel Indexable End Mill

SKU: 23222628 Weight: 0.65 LBS Minimum Purchase: 1 unit
UPC:
$293.07 $243.25
(You save $49.82)
Shipping: Calculated at Checkout

About This Item

Features:

  • Right-Hand, long length, 90 Degree lead angle end mill
  • Shouldering, facing, slotting, ramping, helical milling, plunging applications
  • Compatible with BDMT11T3ER-JT, BDMT11T3ER-JS, BDGT11T3FR-JA BDGT11T3FR, BDMT11T3FR inserts

Product Specifications
EDP NumberOTM86400
Maximum Depth of Cut (Decimal Inch)0.6000"
Maximum Depth of Cut (mm)15.24mm
Cutting Diameter (Decimal Inch)1.0000"
Cutting Diameter (mm)25.40mm
Cutting Diameter Minimum (Decimal Inch)1.0000"
Cutting Diameter Minimum (mm)25.40mm
Cutting Diameter Maximum (Decimal Inch)1.0000"
Cutting Diameter Maximum (mm)25.40mm
Connection Diameter (Decimal Inch)0.7500"
Connection Diameter (mm)19.05mm
Tool Entering Angle ( Degree)90 Degree
ApplicationFacing | Ramping | Shouldering | Slotting
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeLong Length
