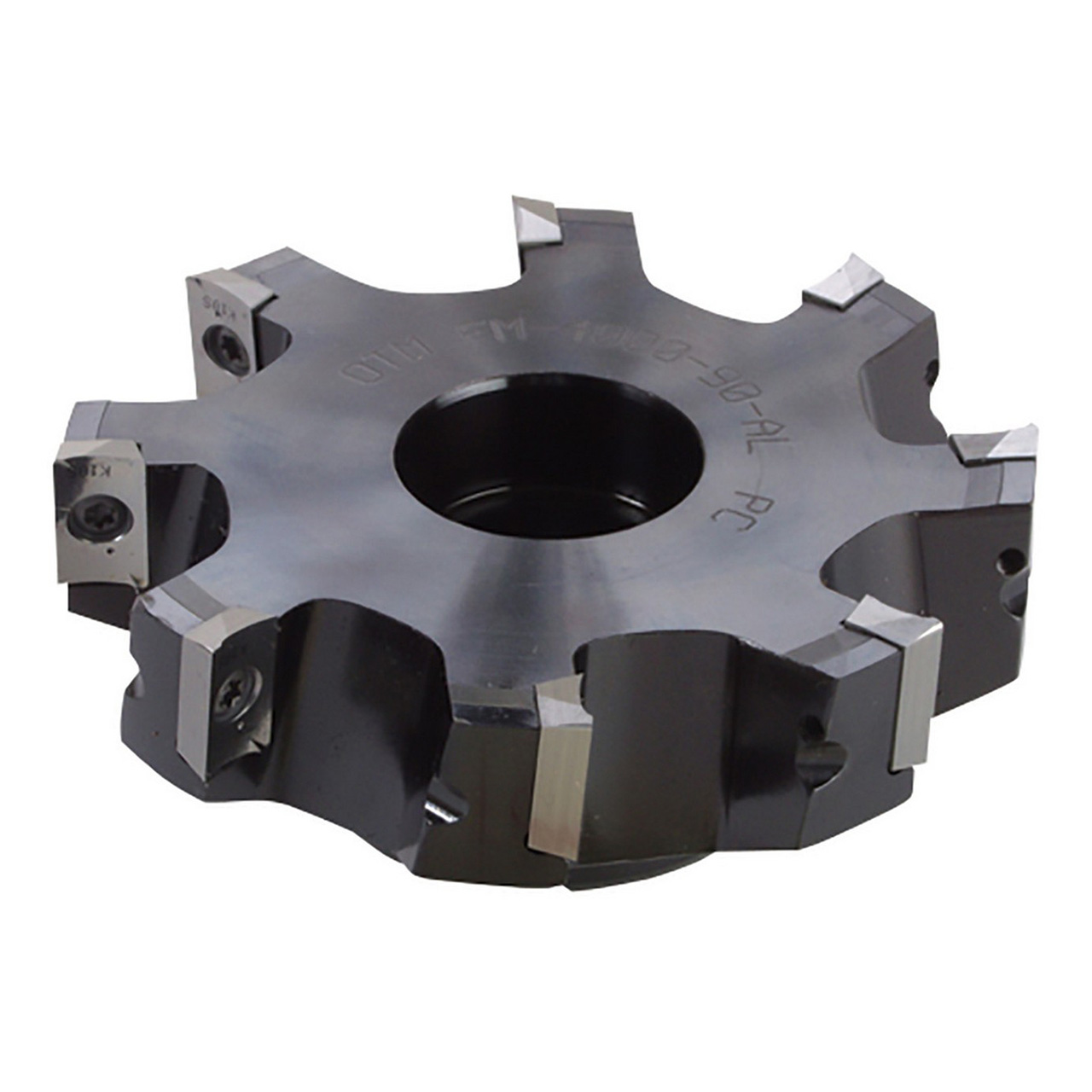

Kyocera Precision Tools OTM86430 | FM400090AL125 4.0000" Diameter x 90 Degree Angle 9 Flute Steel Indexable Face Mill

$796.88 $661.41
(You save $135.47)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
4"
Cutting Diameter (Decimal Inch):
4.0000"
Cutting Diameter (mm):
101.60mm
Maximum Depth of Cut (Inch):
41/64"
Maximum Depth of Cut (Decimal Inch):
0.6400"
Maximum Depth of Cut (mm):
16.26mm
Arbor Hole Diameter (Inch):
1-1/4"
Arbor Hole Diameter (Decimal Inch):
1.2500"
Arbor Hole Diameter (mm):
31.75mm
Series:
FM;Cutter Style=FM"
Number of Cutter Inserts:
8
interval quantity:
1
SKU:
23222655
UPC:
Weight:
2.75 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • 90 Degree Lead angle face mill
  • Application: aluminum shouldering, facing, slotting, ramping
  • General purpose 90 Degree milling cutter
  • Compatible with (8) APET1604 style inserts

Product Specifications
EDP NumberOTM86430
Maximum Depth of Cut (Decimal Inch)0.6400"
Maximum Depth of Cut (mm)50.80mm
Cutting Diameter (Decimal Inch)4.0000"
Cutting Diameter (mm)101.60mm
Cutting Diameter Minimum (Decimal Inch)4.0000"
Cutting Diameter Minimum (mm)101.60mm
Cutting Diameter Maximum (Decimal Inch)4.0000"
Cutting Diameter Maximum (mm)101.60mm
Cutting Diameter Maximum (mm)1.2500"
Connection Bore Diameter (mm)31.75mm
Contact Surface Diameter Machine Side (Decimal Inch)2.4016"
Contact Surface Diameter Machine Side (mm)61.00mm
Tool Entering Angle ( Degree)90 Degree
ApplicationFacing, Ramping, Shouldering, Slotting
Cutter PitchStandard Pitch
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes8
Number of Inserts8
