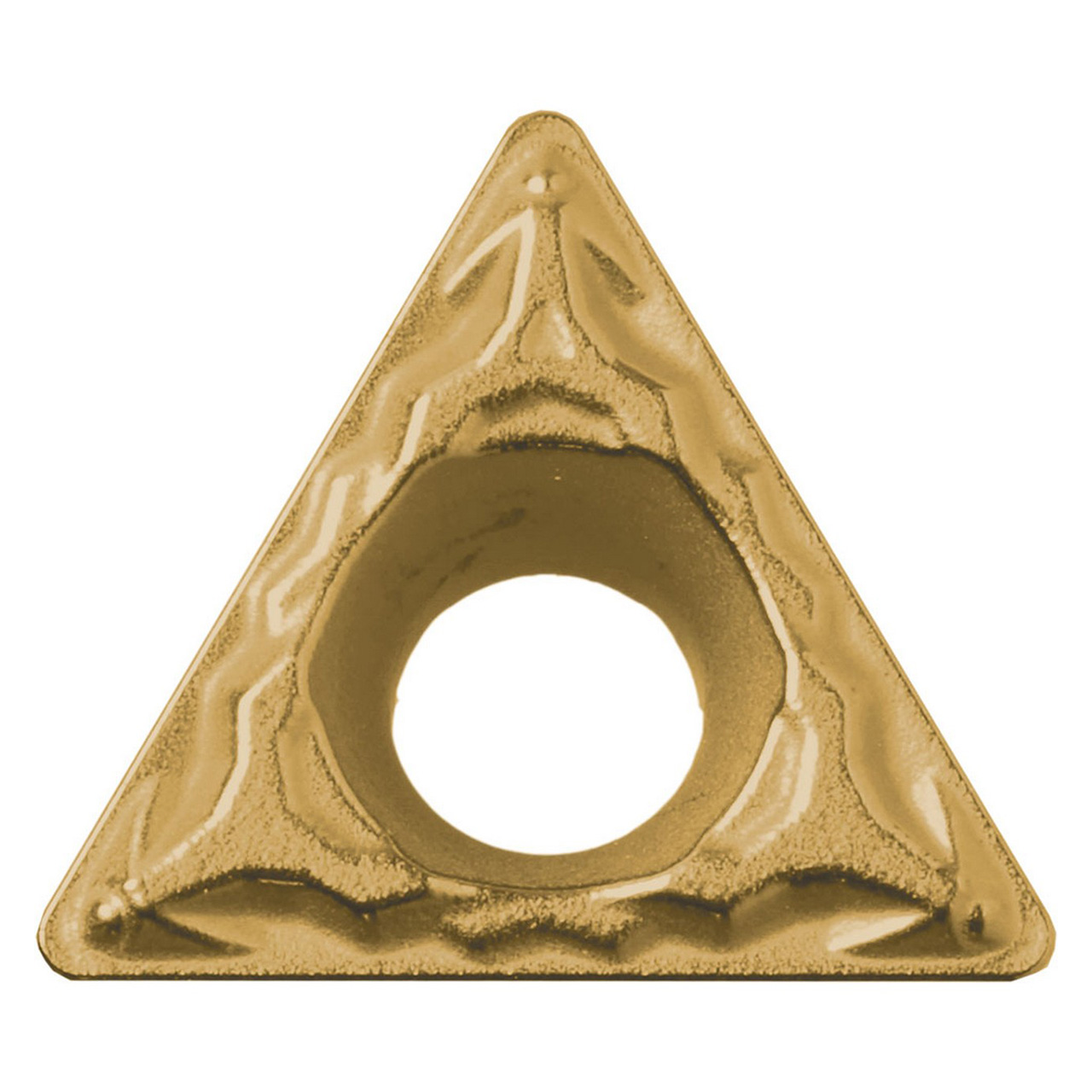

Kyocera Precision Tools TAB06927 | TPMT221PP CA515 1/4" Circle Diameter x 1/8" Thickness CVD Coated Carbide Indexable Turning Insert

SKU: 23223454 Weight: 0.07 LBS Minimum Purchase: 10 unit
UPC:
$18.49 $10.72
(You save $7.77)
Total Price: $10.72
Shipping: Calculated at Checkout

About This Item

Features:

  • Insert for external turning, boring, internal facing, copying, back boring
  • 3 Cutting edges
  • Special substrate and tough coating film provides thermal deformation and high wear resistance
  • Application: Continuous to light interrupted steel machining (general use)

Product Specifications
EDP NumberTAB06927
Inscribed Circle (Inch)1/4"
Inscribed Circle (mm)6.35mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationBack Boring | Boring | Copying | External Turning | Internal Facing
ChipbreakerPP
Coating ProcessCVD
Cutting RangeFinishing
HandNeutral
Insert GradeCA515
Insert Holding MethodScrew or Clamp
Insert Shape60 Degree Triangle
Insert Included Angle ( Degree)60 Degree
Insert Size221
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationContinuous
