Kyocera Precision Tools TBD00295 | BDMT170402FR KPD230 0.008" Radius x 0.193" Thickness Uncoated PCD Milling Insert

$205.49 $150.01
(You save $55.48)
Brand:
Kyocera Precision Tools
Insert Size:
170402
Material:
PCD;Finish/Coating=Uncoated
Thickness (Decimal Inch):
0.1900"
Thickness (mm):
4.90mm
interval quantity:
1
SKU:
23224643
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

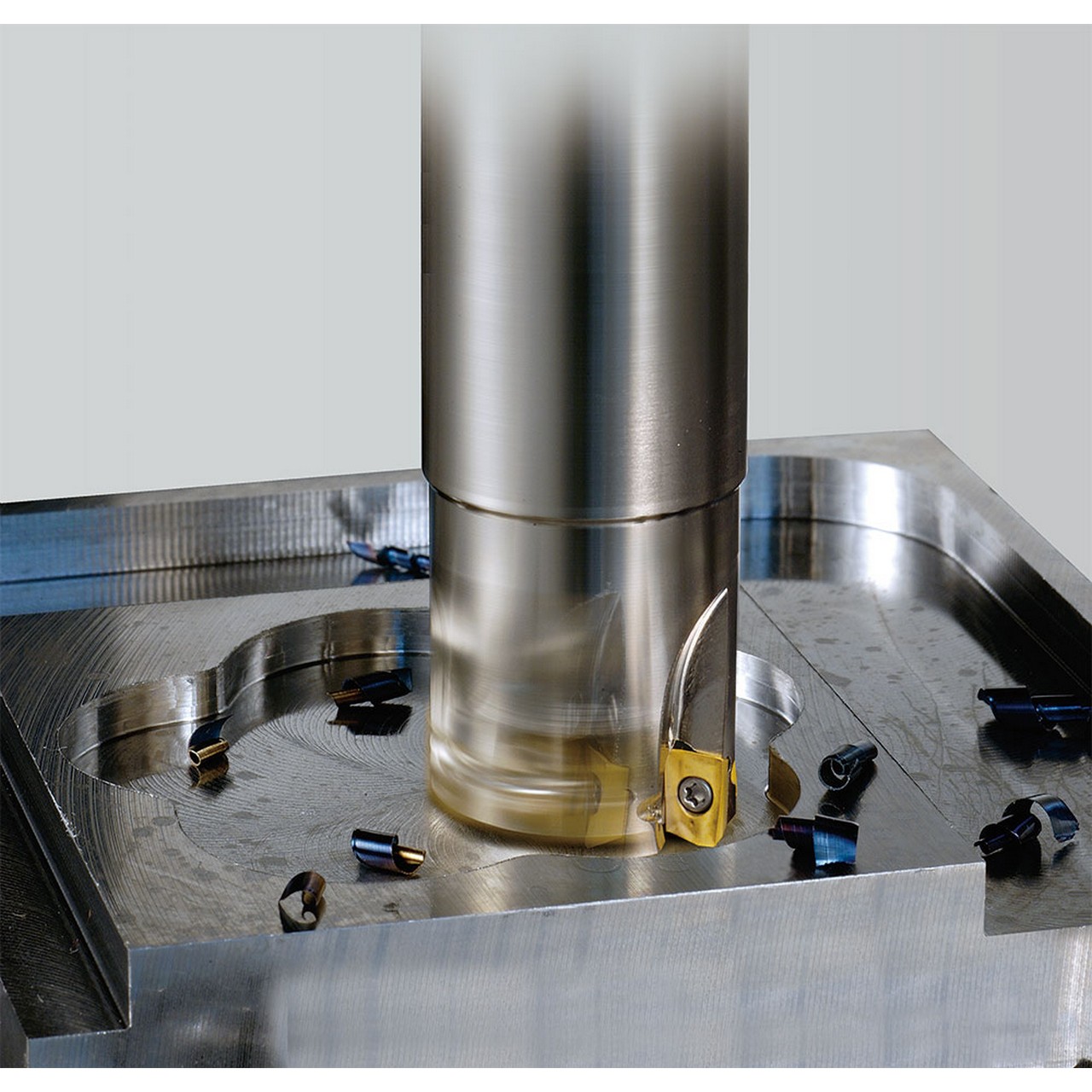

  • Insert for facing, shouldering, slotting, helical milling
  • Sharp edge with 1 cutting edge
  • Superior abrasive wear resistance and toughness due to high density PCD with mixed rough and fine grains
  • Application: High speed milling of aluminum alloys, non-ferrous metals, plastics and fiberglass

Product Specifications
EDP NumberTBD00295
[RE] Corner Radius (Inch)0.008"
[RE] Corner Radius (mm)0.20mm
[S] Thickness (Inch)0.193"
[S] Thickness (mm)4.90mm
ApplicationFacing | Helical Milling | Shouldering | Slotting
ChipbreakerFR
Coating ProcessUncoated
