Features:
| EDP Number | TBJ02212 |
| Inscribed Circle (Inch) | 1/2" |
| Inscribed Circle (mm) | 12.70mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |
| Application | Boring | Copying | External Turning |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | KBN70M |
| Insert Holding Method | Screw or Clamp |

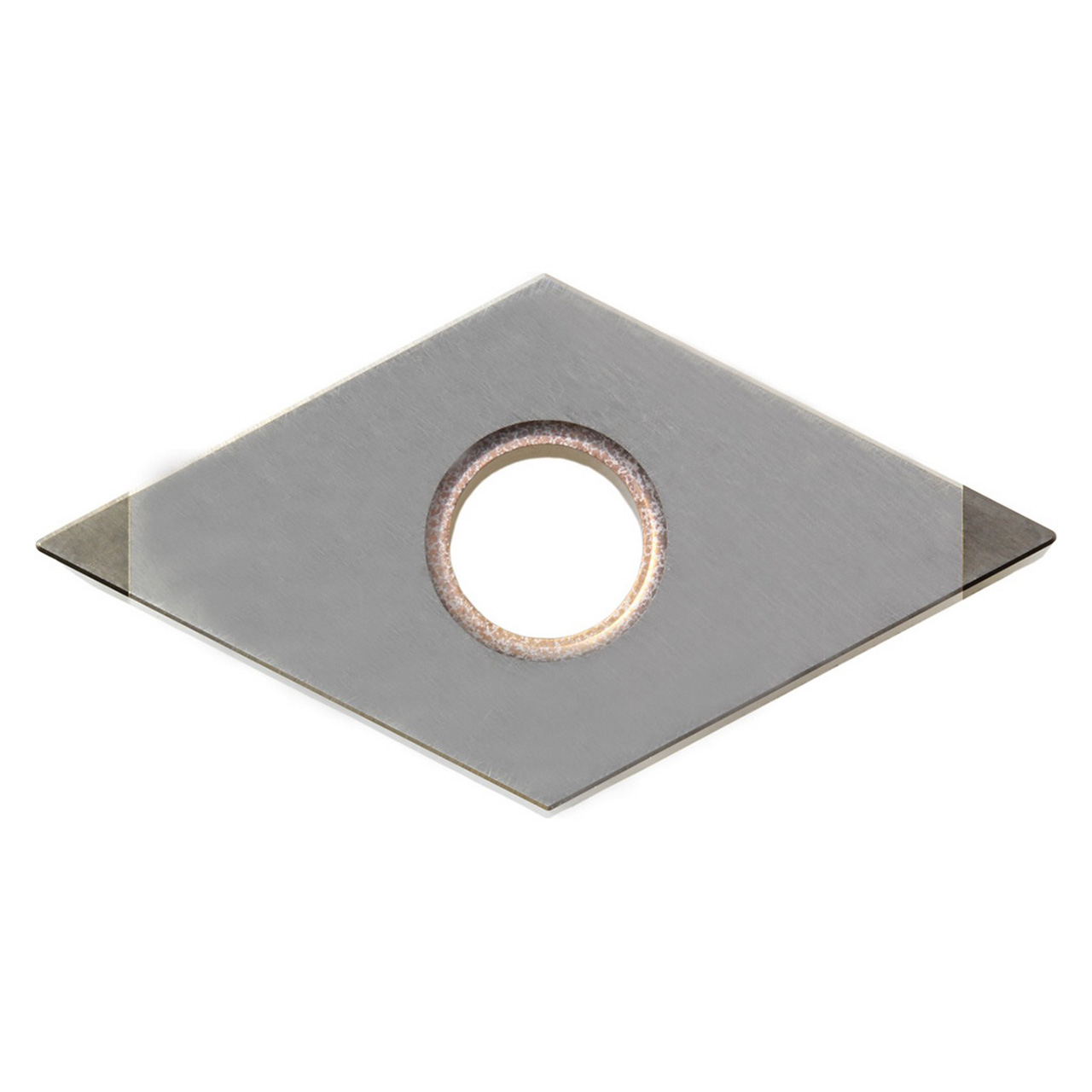

| Insert Shape | 55 Degree Diamond |
| Insert Included Angle ( Degree) | 55 Degree |
| Insert Size | 431 |
| Material | CBN |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Powdered Steel |
| Usage Classification | Heavy Interruption |
