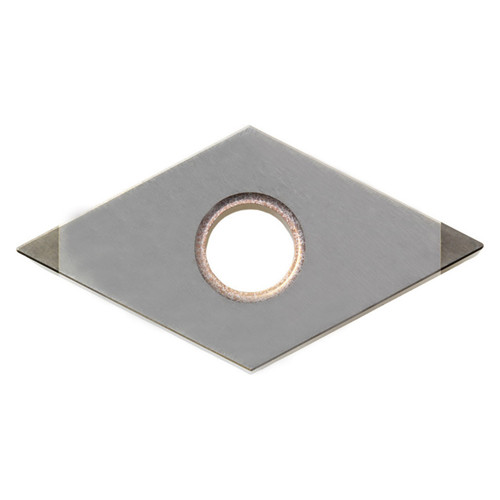

Kyocera Precision Tools TBJ02213 | DNGA432T00515ME KBN70M 1/2" Circle Diameter x 3/16" Thickness PVD Coated CBN Indexable Turning Insert

$87.77 $64.07
(You save $23.70)
Brand:
Kyocera Precision Tools
Insert Style:
DNGA
Insert Size:
432
Material:
CBN;Inscribed Circle (Inch)=1/2"""
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
KBN70M
interval quantity:
1
SKU:
23224802
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, copying, boring
  • Multi-edge with 2 cutting edges
  • Heat-resistant MEGACOAT on CBN rich substrate
  • Application: General cutting of sintered steel (ferrous sintered alloy) at high speed

Product Specifications
EDP NumberTBJ02213
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Corner Radius (Inch)1/32"
Corner Radius (mm)0.80mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationBoring | Copying | External Turning
Coating ProcessPVD
Cutting RangeFinishing Medium
HandNeutral
Insert GradeKBN70M
Insert Holding MethodScrew or Clamp
Insert Shape55 Degree Diamond
Insert Included Angle ( Degree)55 Degree
Insert Size432
MaterialCBN
Number of Cutting Edges2
Primary Workpiece MaterialPowdered Steel
Usage ClassificationHeavy Interruption

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
