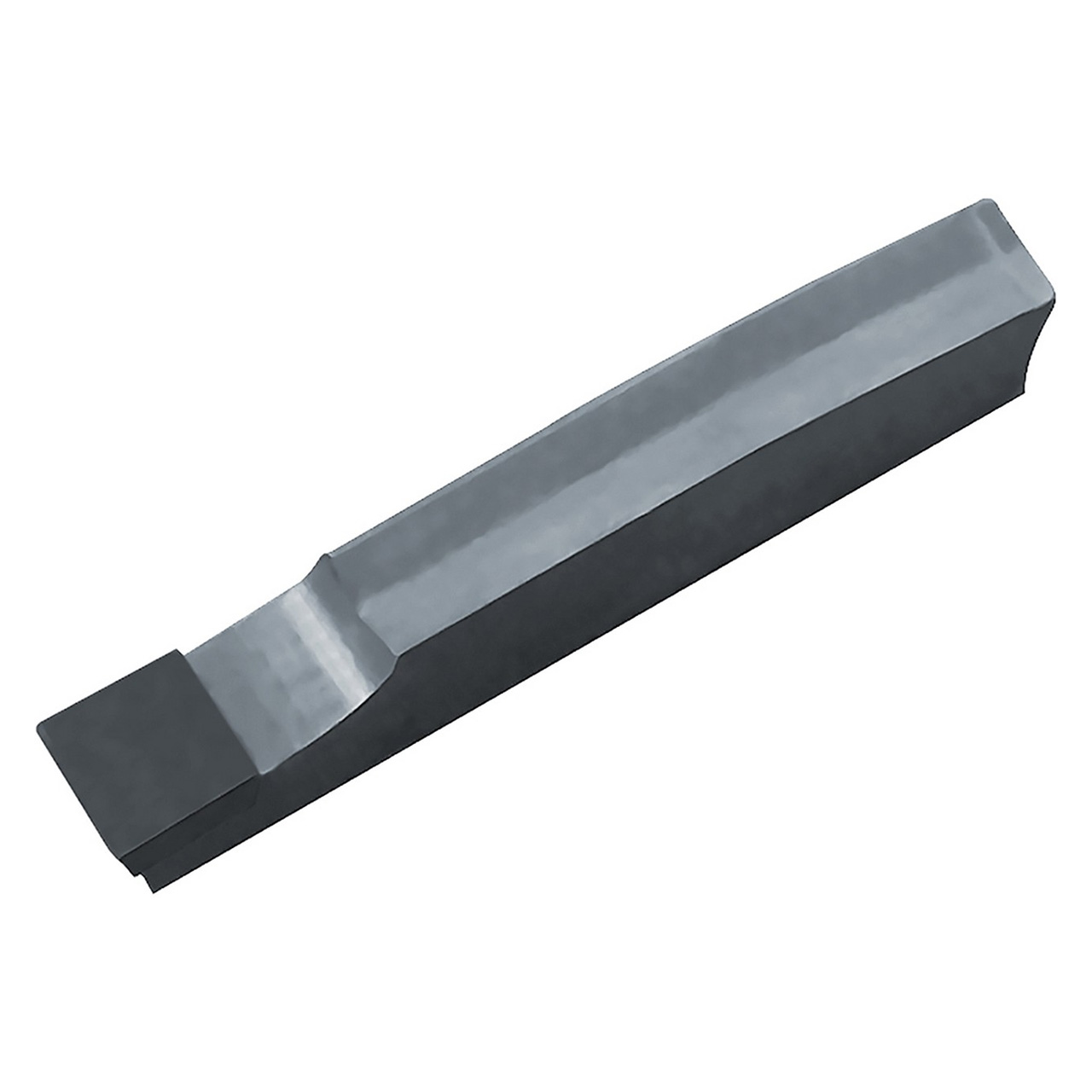

Kyocera Precision Tools TBN10740 | GDGS2020N020NB KBN05M 0.0787" Cutting width x 0.7874" Insert Length PVD Coated CBN Grooving Insert

$231.50 $169.00
(You save $62.50)
Brand:
Kyocera Precision Tools
Insert Style:
GDGS
Insert Size:
2020
Material:
CBN;Cutting Width (Decimal Inch)=0.0787"
Cutting Width (mm):
2.00mm
Maximum Depth of Cut (Decimal Inch):
0.6693"
Maximum Depth of Cut (mm):
17.00mm
Manufacturer's Grade:
KBN05M
Finish/Coating:
PVD
interval quantity:
1
SKU:
23224990
UPC:
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • 1-Edge
  • 1 Cutting edge
  • Heat-resistant MEGACOAT on highly heat-resistant CBN substrate
  • Application: High speed finishing of hardened steel

Product Specifications
Tool NumberTBN10740
Max Depth of Cut (Decimal Inch)0.6693"
Max Depth of Cut (mm)17.00mm
Cutting Width (Decimal Inch)0.0787"
Cutting Width (mm)2.00mm
Cutting Width Minimum (Decimal Inch)0.0787"
Cutting Width Minimum (mm)2.00mm
Cutting Width Maximum (Decimal Inch)0.0787"
Cutting Width Maximum (mm)2.00mm
Insert Length (Decimal Inch)0.7874"
Insert Length (mm)20.00mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)0.169"
Thickness (mm)4.30mm
ApplicationExternal Grooving
ChipbreakerNB
Coating ProcessPVD
Cutting RangeFinishing
HandNeutral
Insert Holding MethodClamp
Insert GradeKBN05M
Insert Size2020
MaterialCBN
Number of Cutting Edges1
Primary Workpiece MaterialHardened Materials (H)
Usage ClassificationContinuous
