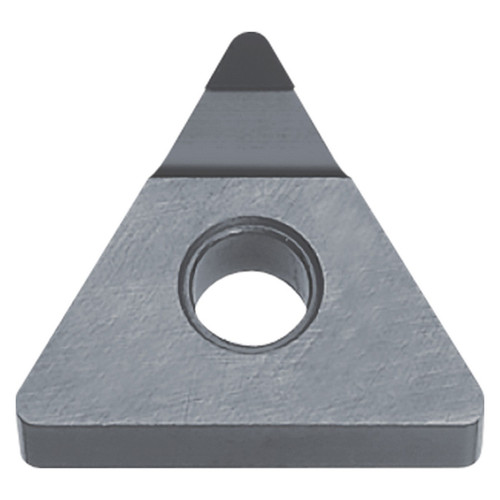

Kyocera Precision Tools TBR04605 | TNMM3305MSEKPD001 3/8" Inscribed Circle x 3/16" Thickness x 0.106" Tip Length x 0.008" Radius x 60 Degree Included Angle 1 Flute Uncoated PCD ISOI Indexable Turning Insert

Kyocera Precision Tools TBR04605 | TNMM3305MSEKPD001 3/8" Inscribed Circle x 3/16" Thickness x 0.106" Tip Length x 0.008" Radius x 60 Degree Included Angle 1 Flute Uncoated PCD ISOI Indexable Turning Insert

Name: Kyocera Precision Tools TBR04605 | TNMM3305MSEKPD001 3/8" Inscribed Circle x 3/16" Thickness x 0.106" Tip Length x 0.008" Radius x 60 Degree Included Angle 1 Flute Uncoated PCD ISOI Indexable Turning Insert
Brand: Kyocera Precision Tools
SKU: 23225151
Price: 43.42 USD
Availability: InStock

SKU: 23225151 Weight: 0.04 LBS Minimum Purchase: 1 unit

UPC:

$59.48 $43.42

(You save $16.06)

Total Price: $43.42

Quantity:

Shipping: Calculated at Checkout

About This Item

Features:

Insert for external turning, facing, copying, chamfering, boring
Small edge with 1 cutting edge
Super Micro-Grain PCD features cutting edge strength, wear resistance, fracture resistance, good edge-sharpening performance and long, stable tool life
Application: High speed cutting of aluminum alloys, brass, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics

Product Specifications

EDP Number	TBR04605
Inscribed Circle (Inch)	3/8"
Inscribed Circle (mm)	9.525mm
Corner Radius (Inch)	0.008"
Corner Radius (mm)	0.20mm
Thickness (Inch)	3/16"
Thickness (mm)	4.76mm
Application	Boring \| Chamfering \| Copying \| External Turning \| Facing
Coating Process	Uncoated
Cutting Range	Finishing Medium
Hand	Neutral
Insert Grade	KPD001
Insert Holding Method	Screw or Clamp
Insert Shape	60 Degree Triangle
Insert Included Angle ( Degree)	60 Degree
Insert Size	3305
Material	PCD
Number of Cutting Edges	1
Primary Workpiece Material	Non-Ferrous Materials (N) \| Titanium Alloy (S)
Usage Classification	Continuous
