Features:

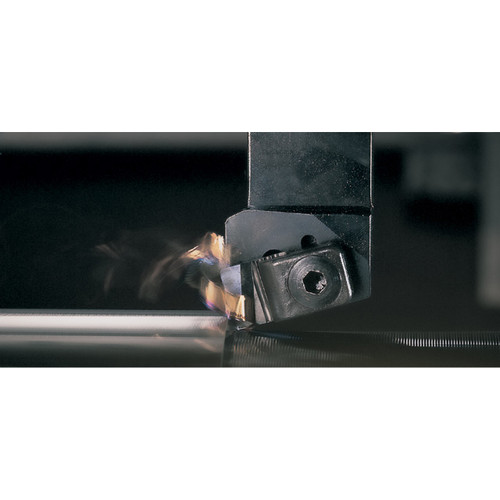

- Insert for external turning, facing, chamfering, boring
- 3 Cutting edges
- Heat-resistant MEGACOAT coating on aluminum oxide and titanium carbide ceramic (MEGACOAT Al2O3+TiC)
- Application: Semi-roughing to finishing of cast iron, hard materials and hardened roll materials
Product Specifications
| EDP Number | TCV06506 |
| Inscribed Circle (Inch) | 5/32" |
| Inscribed Circle (mm) | 3.97mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 1/16" |
| Thickness (mm) | 1.59mm |
| Application | Boring | Chamfering | External Turning | Facing |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | PT600M |
| Insert Holding Method | Clamp |
| Insert Shape | 60 Degree Triangle |
| Insert Included Angle ( Degree) | 60 Degree |
| Insert Size | 1211 |
| Material | Ceramic |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Hardened Materials (H) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
TBG
Insert Size:
1211
Material:
Ceramic;Inscribed Circle (Inch)=5/32"""
Inscribed Circle (Decimal Inch):
0.1563"
Inscribed Circle (mm):
3.97mm
Thickness (Inch):
1/16"
Thickness (Decimal Inch):
0.0626"
Thickness (mm):
1.59mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
PT600M
