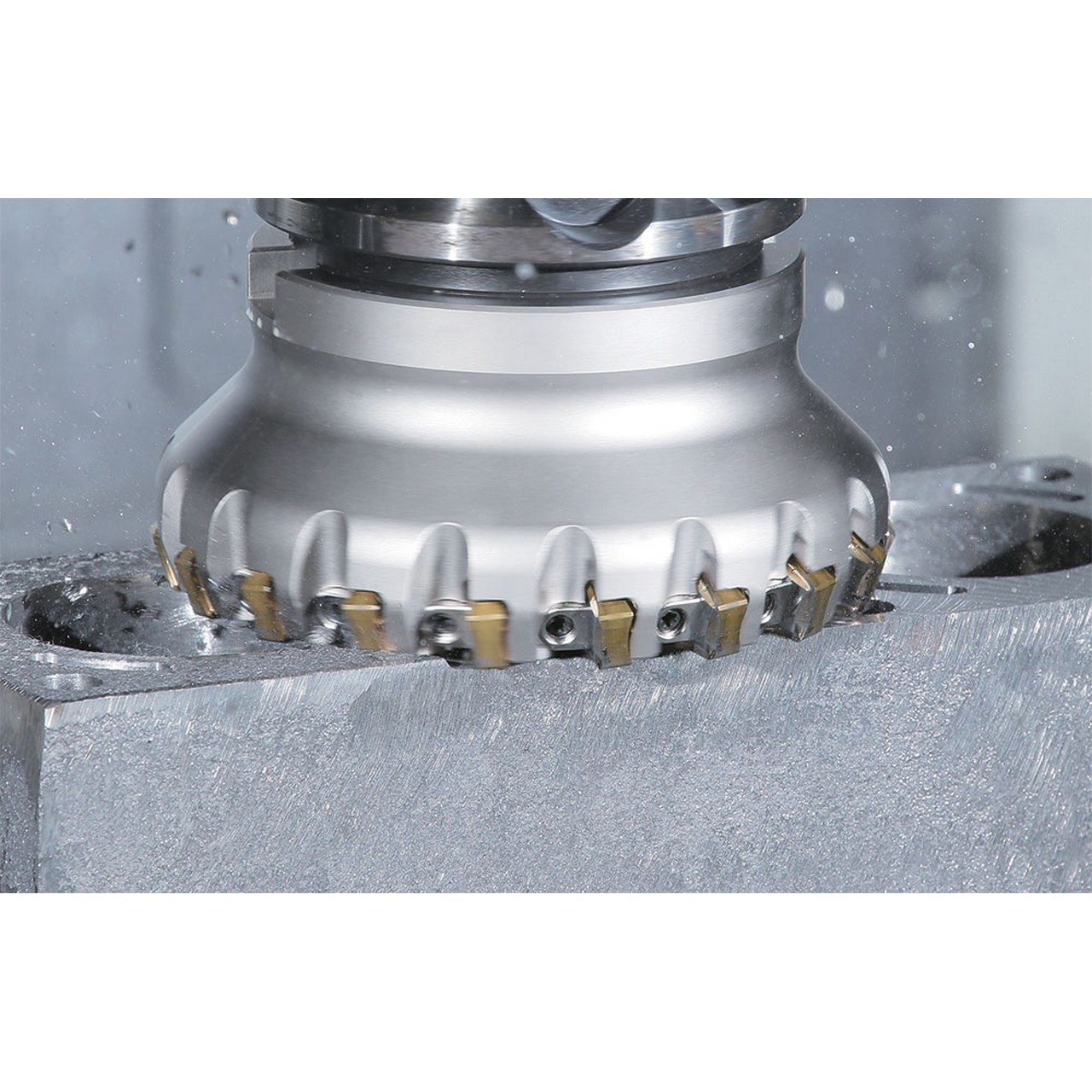

Kyocera Precision Tools TFB05311 | PNEG1106XNTRT01015W KBN475 0.256" Thickness x 0.7110" Insert Length Uncoated CBN Milling Insert

$213.74 $156.03
(You save $57.71)
Brand:
Kyocera Precision Tools
Insert Size:
1106
Material:
CBN;Finish/Coating=Uncoated
Thickness (Decimal Inch):
0.2600"
Thickness (mm):
6.50mm
interval quantity:
1
SKU:
23228052
UPC:
Weight:
0.06 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
  • Insert for facing, chamfering
  • Chamfered edge/wiper edge/2-edge with 2 cutting edges
  • Excellent wear resistance due to high CBN content and special binder
  • Application: High speed machining of gray cast iron

Product Specifications
EDP NumberTFB05311
[INSL] Insert Length (Decimal Inch)0.7110"
[INSL] Insert Length (mm)18.06mm
[S] Thickness (Inch)0.256"
[S] Thickness (mm)6.50mm
ApplicationChamfering | Facing
ChipbreakerXNTR-W
Coating ProcessUncoated
