Features:
- Combination of new coating technology and high content CBN provides exceptional wear resistance and fracture resistance
- Supports a wide range of applications from continuous to heavily interrupted machining
- Newly developed "MEGACOAT TOUGH" coating technology
- New adhesion layer is laminated between the high wear resistance layer and the CBN
- Reduces layer peeling to achieve long tool life and stable machining

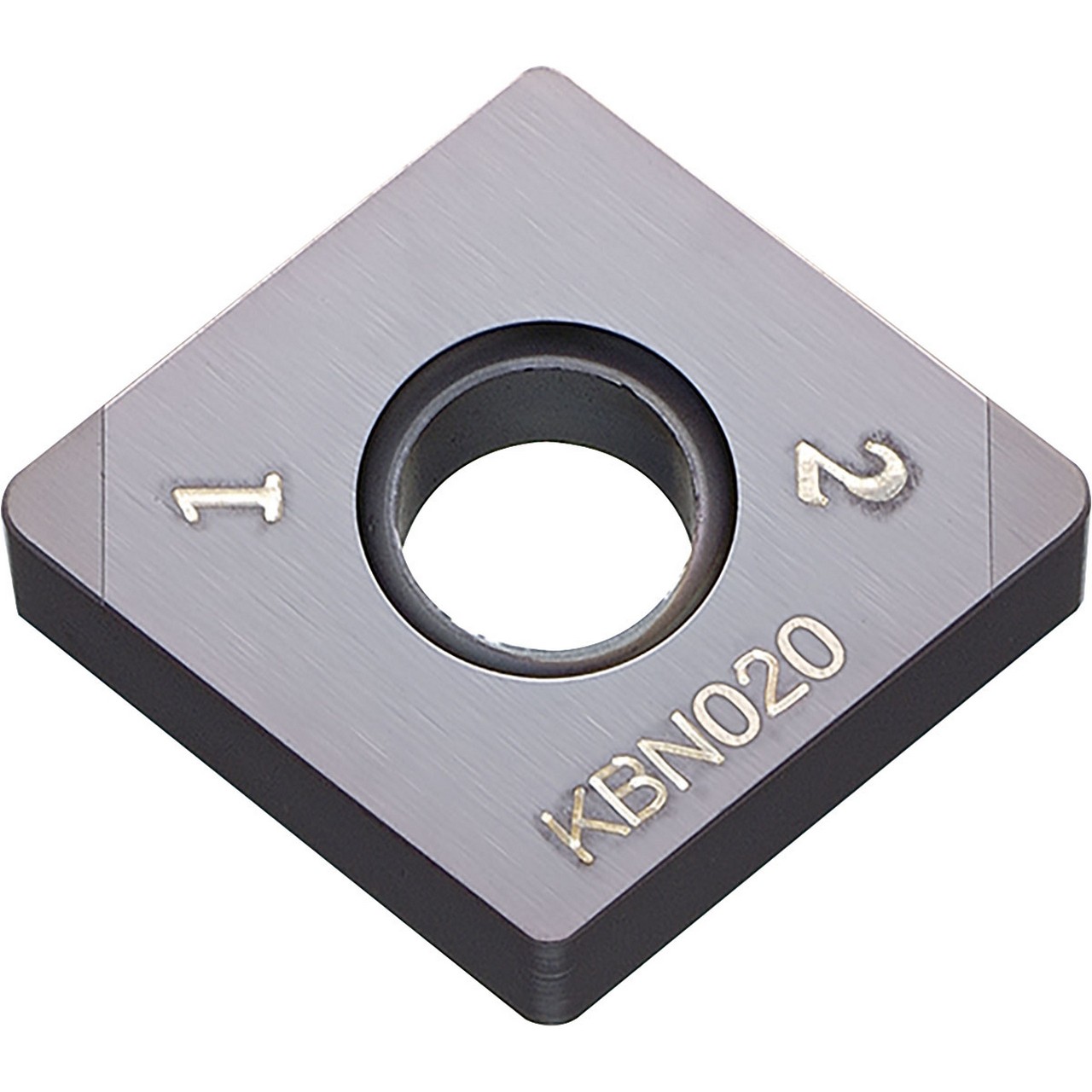

Product Specifications
| EDP Number | TFC00007 |
| Inscribed Circle (Inch) | 1/2" |
| Inscribed Circle (mm) | 12.70mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |
| Application | Boring | External Turning | Facing | Internal Facing |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | KBN020 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 80 Degree Diamond |
| Insert Included Angle ( Degree) | 80 Degree |
| Insert Size | 4305 |
| Insert Size | CBN |
| Material | 2 |
| Number of Cutting Edges | Hardened Materials (H) |
| Primary Workpiece Material | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
CNGA
Insert Size:
4305
Material:
CBN;Inscribed Circle (Inch)=1/2"""
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
KBN020
