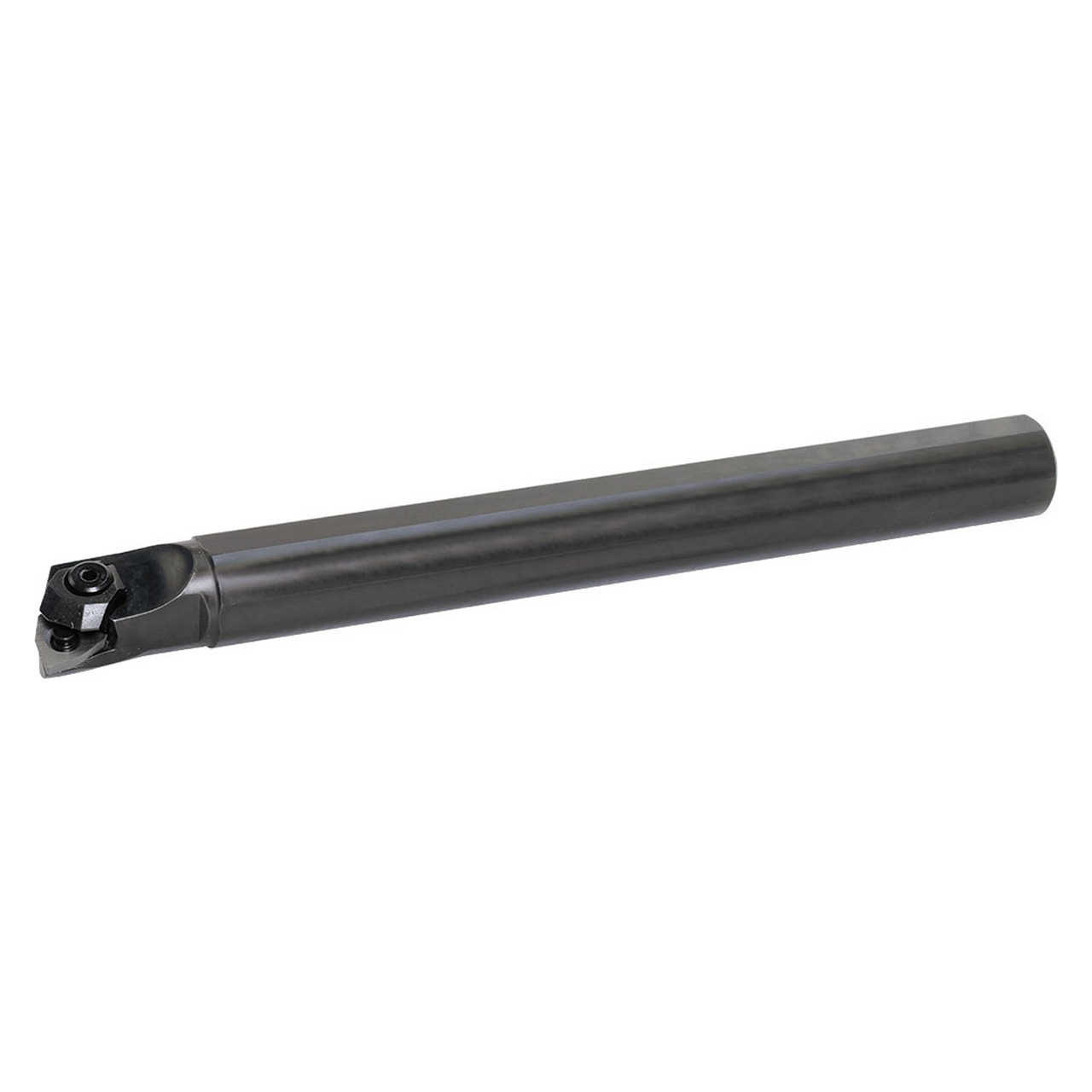

Features:
- ~6 (Axial), -11 (Radial) Rake angle general purpose boring bar
- Great for boring, internal facing applications
- Compatible with Left-Hand WNMG43, WNGG43, WNMM43, WNGA43 inserts
Product Specifications
| EDP Number | THC03944 |
| Shank Width (Decimal Inch) | 0.7874" |
| Connection Diameter (Decimal Inch) | 0.9843" |
| Connection Diameter (mm) | 25.00mm |
| Minimum Bore Diameter (Decimal Inch) | 1.3386" |
| Minimum Bore Diameter (mm) | 34.00mm |
| Shank Height (Decimal Inch) | 0.9449" |
| Shank Height (mm) | 24.00mm |
| Tool Entering Angle ( Degree) | 95 Degree |
| Application | Boring | Internal Facing |
| Bar Type | Excellent Bar |
| Hand | Right Hand |
| Insert Holding Method | Wedge Lock |
| Insert Shape | 80 Degree Trigon |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
S...WWLN08-E
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=1.3386"""
Minimum Bore Diameter (mm):
34.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
Through Coolant:
No
