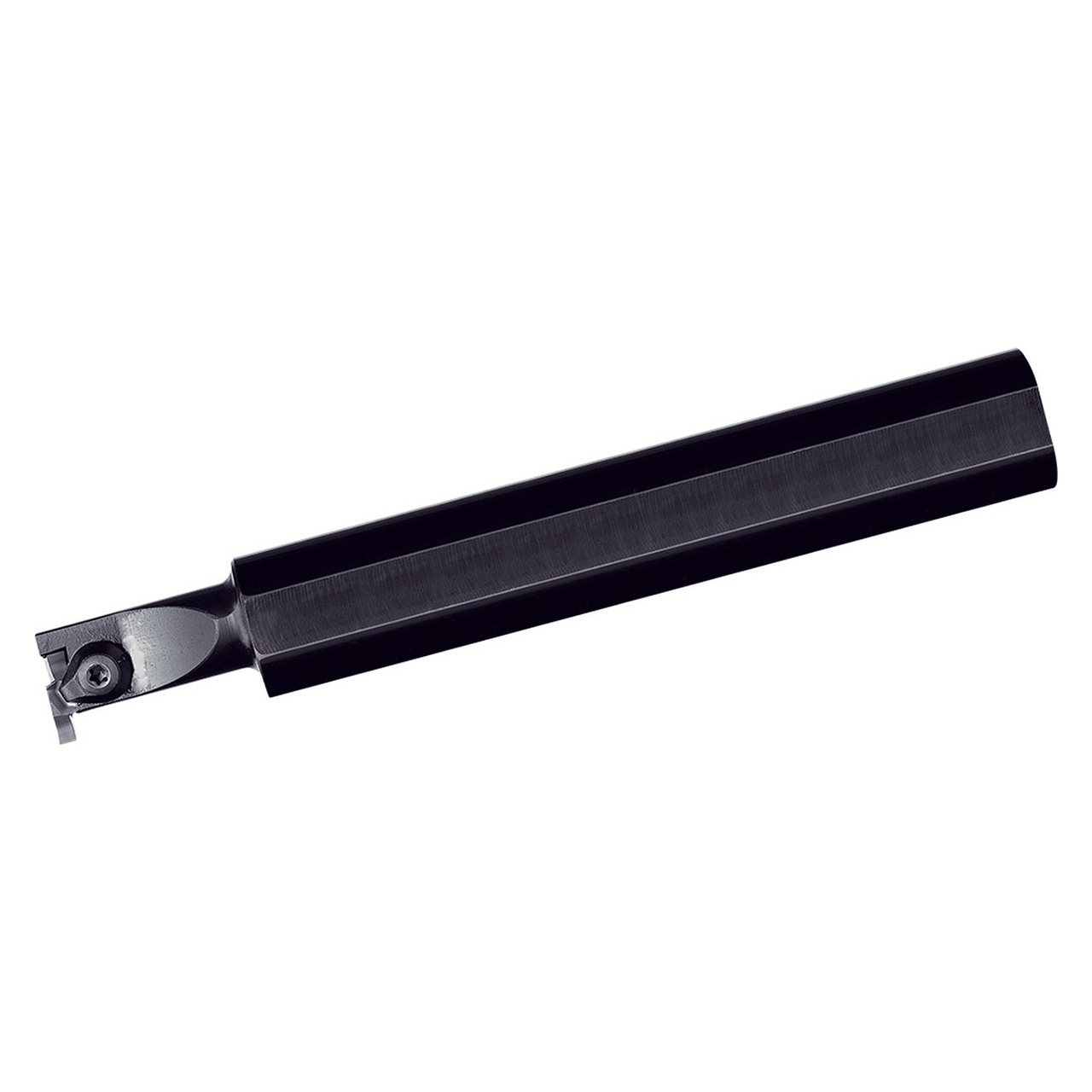

Features:
- Right-Hand toolholder
- Application: internal small diameter grooving
- Top clamp insert holding design
- Compatible with Right-Hand GVRB, GVRBR inserts
Product Specifications
| EDP Number | THC04790 |
| Max Depth of Cut (Decimal Inch) | 0.1654" |
| Max Depth of Cut (mm) | 4.20mm |
| Cutting Width (Decimal Inch) | 0.1102" |
| Cutting Width (mm) | 2.80mm |
| Cutting Width Minimum (Decimal Inch) | 0.1102" |
| Cutting Width Minimum (mm) | 2.80mm |
| Cutting Width Maximum (Decimal Inch) | 0.1102" |
| Cutting Width Maximum (mm) | 2.80mm |
| Connection Diameter (Decimal Inch) | 0.9843" |
| Connection Diameter (mm) | 25.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.7874" |
| Minimum Bore Diameter (mm) | 20.00mm |
| Shank Height (Decimal Inch) | 0.9055" |
| Shank Height (mm) | 23.00mm |
| Application | Internal Grooving | Small Parts Machining |
| Grooving Type | Internal Grooving |
| Hand | Right Hand |
| Insert Holding Method | Top Clamp |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Type:
Internal Grooving
Hand of Holder:
Right-Hand
Maximum Depth of Cut (Decimal Inch):
0.1654"
Maximum Depth of Cut (mm):
4.20mm
Minimum Groove Width (Decimal Inch):
0.1102"
Minimum Groove Width (mm):
2.80mm
Maximum Groove Width (Decimal Inch):
0.1102"
Maximum Groove Width (mm):
2.80mm
Toolholder Style:
GIV
Shank Height (Decimal Inch):
0.9055"
Shank Height (mm):
23.00mm
Shank Width/Diameter (Decimal Inch):
0.9843"
Shank Width/Diameter (mm):
25.00mm
Series:
GVIG
Through Coolant:
No
