Features:

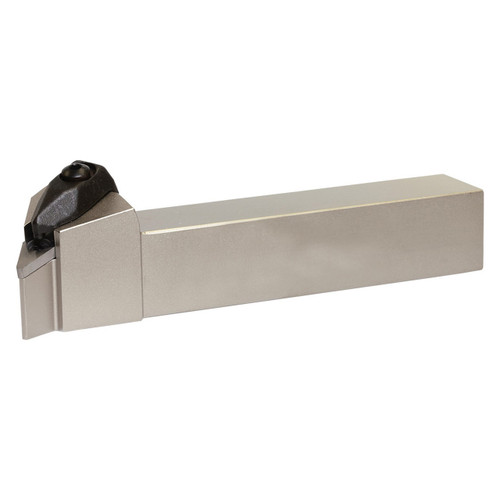

- Right-Hand toolholder
- Application: swiss, external turning
- Screw clamp insert holding design
- Compatible with Right-Hand TCGT22, TCET22, TCGW22, TCMT22 style inserts
- Simple mechanism with fewer parts for finishing to medium machining
Product Specifications
| EDP Number | THC05283 |
| Shank Width (Decimal Inch) | 0.6299" |
| Shank Width (mm) | 20.00mm |
| Shank Height (Decimal Inch) | 0.7874" |
| Shank Height (mm) | 20.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Application | External Turning | Small Parts Machining |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Shape | 60 Degree Triangle |
| Material | Steel |
| Rake | Positive |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Hand of Holder:
Right-Hand
Toolholder Style:
STGC
Rake:
Positive;Series=SDTH
Lead Angle:
90°
Shank Width (Decimal Inch):
0.7874"
Shank Width (mm):
20.00mm
Shank Height (Decimal Inch):
0.7874"
Shank Height (mm):
20.00mm
