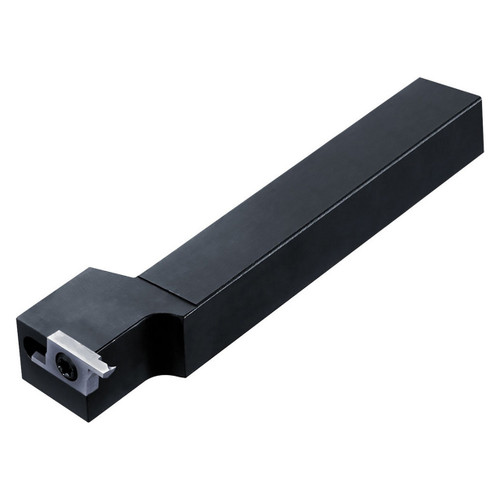

Features:
- Swiss IQ bar
- Square shank (L-shape) toolholder without side stopper or setscrew
- Great for horizontal gang type lathes
- For VNBR, VNBTR, VNGR, VNFGR, VNTR style inserts
Product Specifications
| EDP Number | THC07532 |
| Shank Width (Decimal Inch) | 0.6299" |
| Shank Width (mm) | 10.00mm |
| Shank Height (Decimal Inch) | 0.3937" |
| Shank Height (mm) | 10.00mm |
| Usable Length (Decimal Inch) | 0.2362" |
| Usable Length (mm) | 6.00mm |
| Application | Micro Boring | Micro Internal Face Grooving | Micro Internal Grooving | Micro Internal Threading |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
SWIQ;Maximum Bore Depth (Decimal Inch)=0.2362"""
Maximum Bore Depth (mm):
6.00mm
Through Coolant:
No
