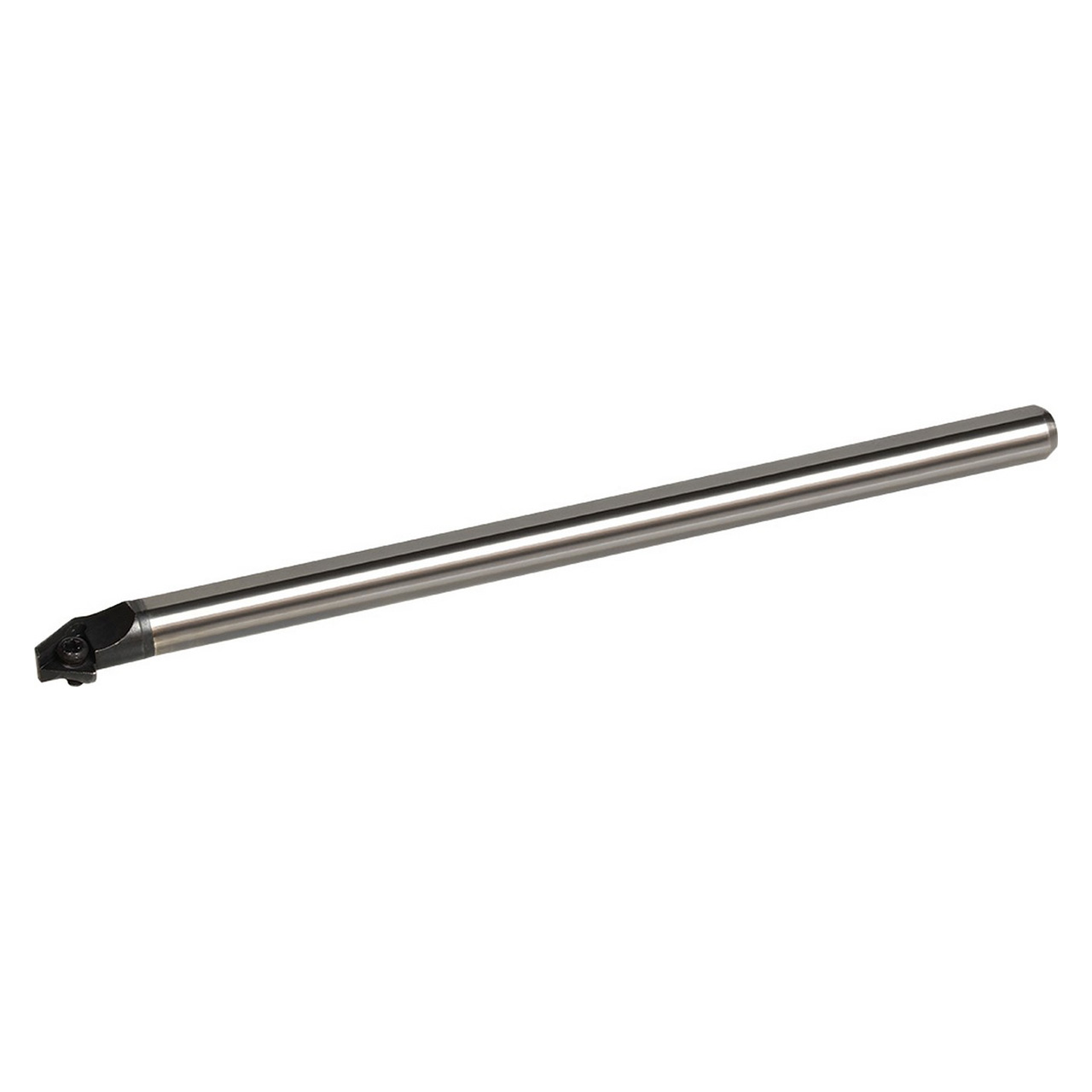

Features:
- ~0 (Axial), -10 (Radial) Rake angle general purpose boring bar
- Great for back boring applications
- Compatible with Right-Hand TBGT121, TBMT121, TBGW121, TBMT121 inserts
Product Specifications
| EDP Number | THC08370 |
| Connection Diameter (Decimal Inch) | 0.2362" |
| Connection Diameter (mm) | 6.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.3347" |
| Minimum Bore Diameter (mm) | 8.50mm |
| Shank Height (Decimal Inch) | 0.2126" |
| Shank Height (mm) | 5.40mm |
| Tool Entering Angle ( Degree) | 95 Degree |
| Application | Back Boring |
| Bar Type | Carbide Shank |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Shape | 60 Degree Triangle |
| Material | Steel/Carbide |
| Rake | Positive |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
C...STZB
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=0.3347"""
Minimum Bore Diameter (mm):
8.50mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Through Coolant:
No
