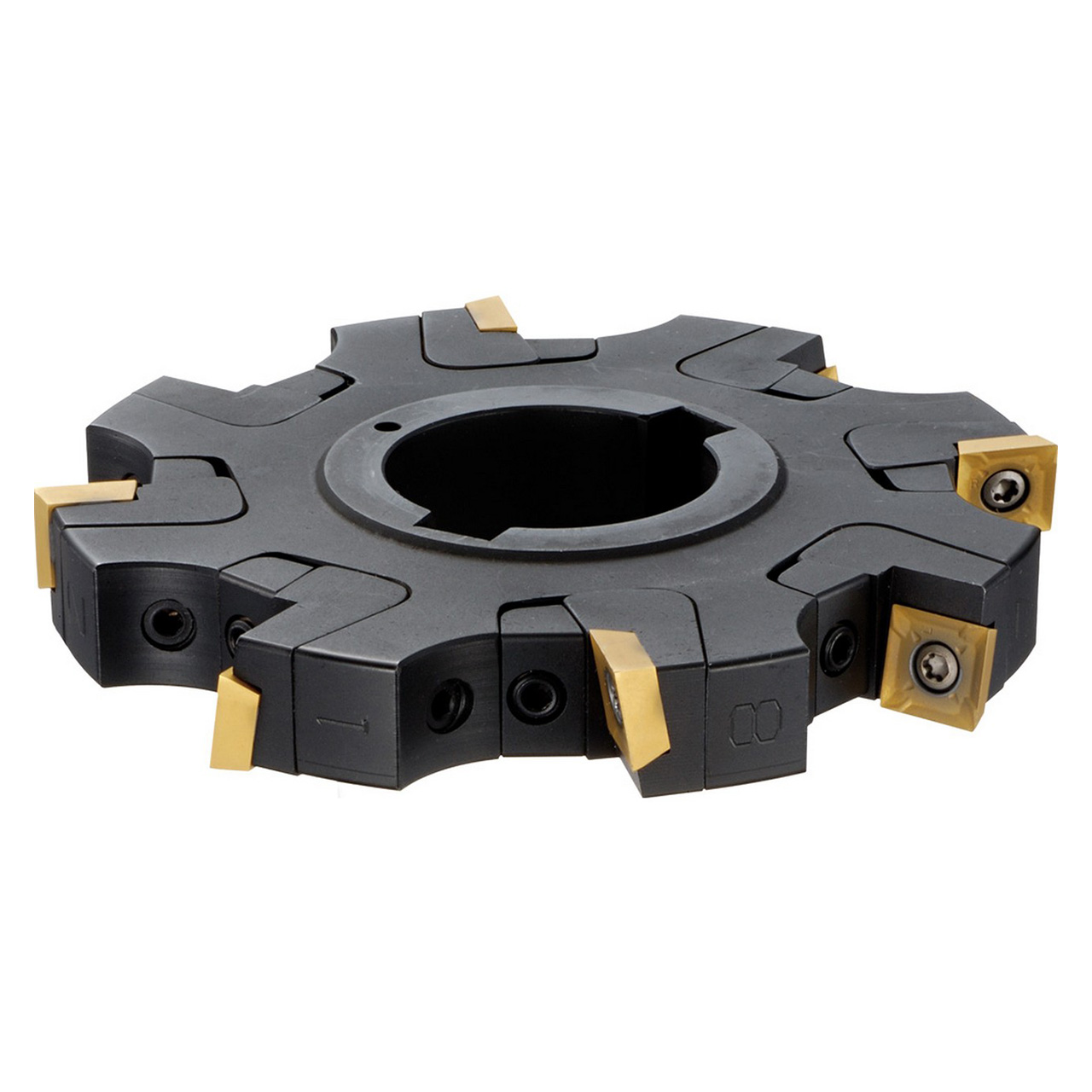

Features:
- Lay-down type inserts/fully adjustable slot width
- Smooth slotting width adjustment is possible due to unique cam style adjustment mechanism
- Four-sided inserts are cost-effective
- Wide range of corner radii
- Numerous insert geometries and grades, are for various types of workpiece machining
Product Specifications
EDP Number | THC10211 |
Max Depth of Cut (Decimal Inch) | 1.3386" |
Max Depth of Cut (mm) | 34.00mm |
Cutting Width (Decimal Inch) | 0.8268 - 0.9173" |
Cutting Width (mm) | 21.00 - 23.30mm |
Cutting Width Minimum (Decimal Inch) | 0.8268" |
Cutting Width Minimum (mm) | 21.00mm |
Cutting Width Maximum (Decimal Inch) | 0.9173" |
Cutting Width Maximum (mm) | 23.30mm |
Cutting Diameter (Decimal Inch) | 4.9213" |
Cutting Diameter (mm) | 125.00mm |
Cutting Diameter Minimum (Decimal Inch) | 4.9213" |
Cutting Diameter Minimum (mm) | 125.00mm |
Cutting Diameter Maximum (Decimal Inch) | 4.9213" |
Cutting Diameter Maximum (mm) | 125.00mm |
Cutting Diameter Maximum (mm) | 1.5748" |
Connection Bore Diameter (mm) | 40.00mm |
Contact Surface Diameter Machine Side (Decimal Inch) | 2.1575" |
Contact Surface Diameter Machine Side (mm) | 54.80mm |
Application | Shouldering | Slotting |
Hand | Neutral |
Insert Holding Method | Screw |
Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Width (Inch):
59/64"
Cutting Width (Decimal Inch):
0.9173"
Cutting Width (mm):
23.30mm
Maximum Depth of Cut (Inch):
1-11/32"
Maximum Depth of Cut (Decimal Inch):
1.3386"
Maximum Depth of Cut (mm):
34.00mm
Cutter Diameter (Inch):
4-59/64"
Cutter Diameter (Decimal Inch):
4.9213"
Cutter Diameter (mm):
125.00mm
Hole Diameter (Inch):
1-37/64"
Hole Diameter (Decimal Inch):
1.5748"
Hole Diameter (mm):
40.00mm
Toolholder Style:
MSTC
Series:
MSTC
