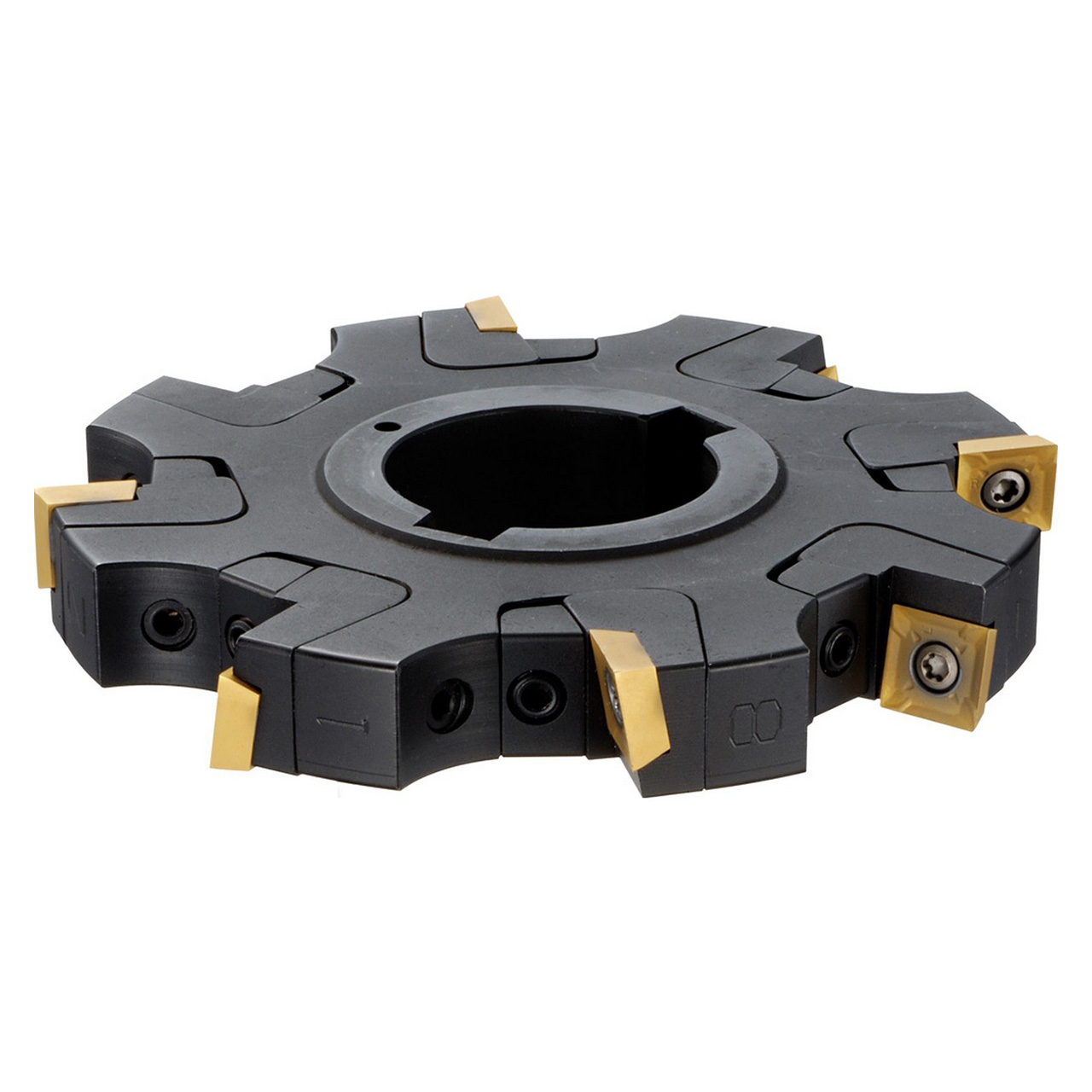

Features:
- Lay-down type inserts/fully adjustable slot width
- Smooth slotting width adjustment is possible due to unique cam style adjustment mechanism
- Four-sided inserts are cost-effective
- Wide range of corner radii
- Numerous insert geometries and grades, are for various types of workpiece machining
Product Specifications
| EDP Number | THC10301 |
| Maximum Depth of Cut (Decimal Inch) | 0.4606" |
| Shank Width (Decimal Inch) | 0.3937" |
| Max Depth of Cut (Decimal Inch) | 1.2559" |
| Max Depth of Cut (mm) | 31.90mm |
| Cutting Diameter (Decimal Inch) | 4.9213" |
| Cutting Diameter (mm) | 125.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 4.9213" |
| Cutting Diameter Minimum (mm) | 125.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 4.9213" |
| Cutting Diameter Maximum (mm) | 125.00mm |
| Cutting Diameter Maximum (mm) | 1.2598" |
| Connection Bore Diameter (mm) | 32.00mm |
| Application | Back Side Milling | Shouldering |
| Hand | Left Hand |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Maximum Depth of Cut (Inch):
1-1/4"
Maximum Depth of Cut (Decimal Inch):
1.2559"
Maximum Depth of Cut (mm):
31.90mm
Cutter Diameter (Inch):
4-59/64"
Cutter Diameter (Decimal Inch):
4.9213"
Cutter Diameter (mm):
125.00mm
Hole Diameter (Inch):
1-17/64"
Hole Diameter (Decimal Inch):
1.2598"
Hole Diameter (mm):
32.00mm
Toolholder Style:
MSTC
Series:
MSTC
