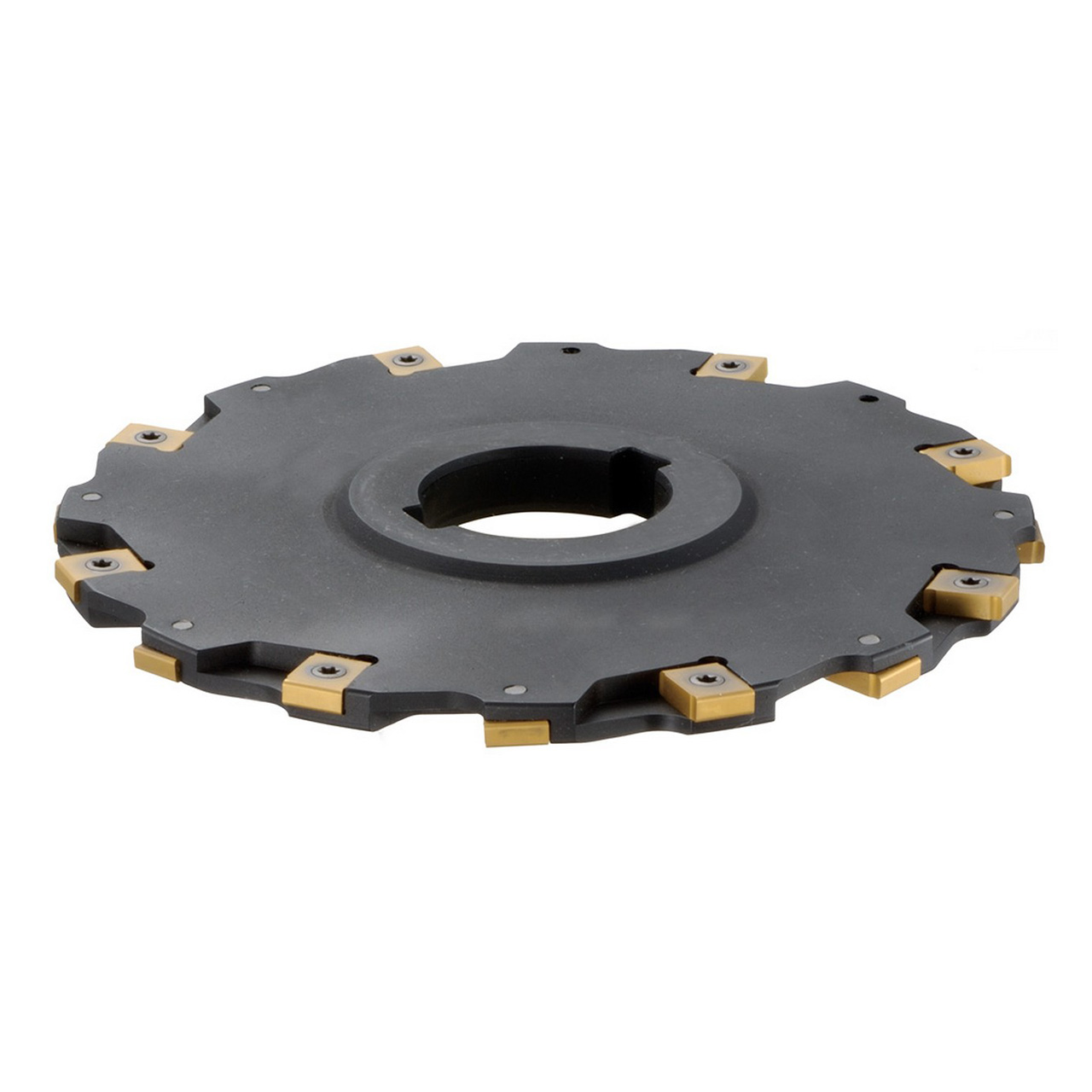

Features:
- Up-right type/semi-adjustable slot width
- Easy and secure screw holding - inserts can be attached to the MSTB slot mills very easily by using clamp screws.
- Inserts have four edge and are, therefore, cost-effective
- Applicable to a variety of slotting by choosing different inserts
Product Specifications
| EDP Number | THC10772 |
| Max Depth of Cut (Decimal Inch) | 1.7811" |
| Max Depth of Cut (mm) | 45.24mm |
| Cutting Width (Decimal Inch) | 0.3120 - 0.3512" |
| Cutting Width (mm) | 7.925 - 8.92mm |
| Cutting Width Minimum (Decimal Inch) | 0.3120" |
| Cutting Width Minimum (mm) | 7.925mm |
| Cutting Width Maximum (Decimal Inch) | 0.3512" |
| Cutting Width Maximum (mm) | 8.92mm |
| Cutting Diameter (Decimal Inch) | 6.0000" |
| Cutting Diameter (mm) | 152.40mm |
| Cutting Diameter Minimum (Decimal Inch) | 6.0000" |
| Cutting Diameter Minimum (mm) | 152.40mm |
| Cutting Diameter Maximum (Decimal Inch) | 6.0000" |
| Cutting Diameter Maximum (mm) | 152.40mm |
| Cutting Diameter Maximum (mm) | 1.5000" |
| Connection Bore Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.2500" |
| Contact Surface Diameter Machine Side (mm) | 57.15mm |
| Application | Cut-Off | Slotting |
| Hand | Neutral |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Width (Inch):
11/32"
Cutting Width (Decimal Inch):
0.3512"
Cutting Width (mm):
8.92mm
Maximum Depth of Cut (Inch):
1-25/32"
Maximum Depth of Cut (Decimal Inch):
1.7811"
Maximum Depth of Cut (mm):
45.24mm
Cutter Diameter (Inch):
6"
Cutter Diameter (Decimal Inch):
6.0000"
Cutter Diameter (mm):
152.40mm
Hole Diameter (Inch):
1-1/2"
Hole Diameter (Decimal Inch):
1.5000"
Hole Diameter (mm):
38.10mm
Toolholder Style:
MSTB
Series:
MSTB
