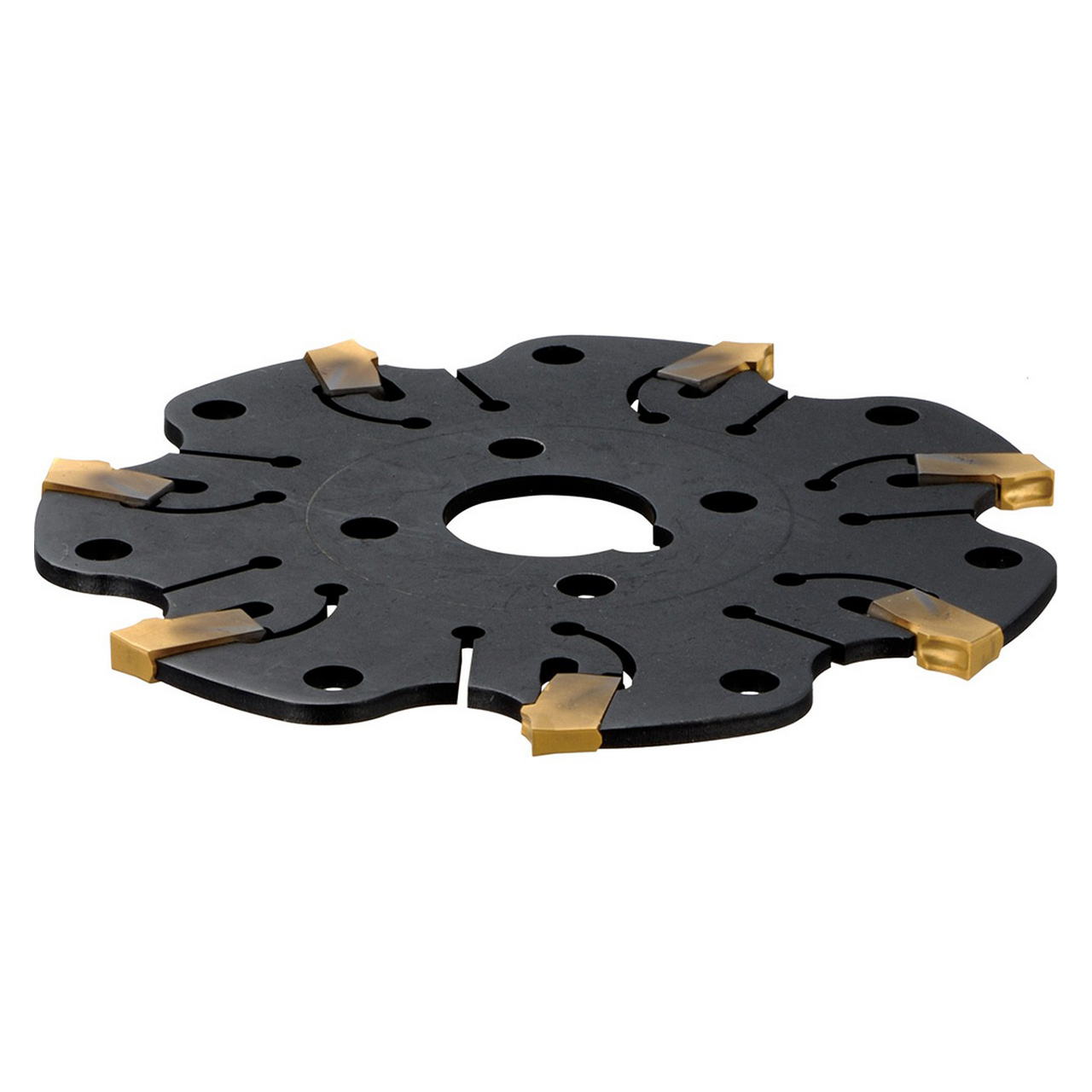

Kyocera Precision Tools THC10960 | MSTA100N229T 3.9370" Diameter x 1.0630" Maximum Depth of Cut Steel Indexable Slot Mill

$968.55 $803.90
(You save $164.65)
Brand:
Kyocera Precision Tools
Cutting Width (Inch):
3/32"
Cutting Width (Decimal Inch):
0.0866"
Cutting Width (mm):
2.20mm
Maximum Depth of Cut (Inch):
1-1/16"
Maximum Depth of Cut (Decimal Inch):
1.0630"
Maximum Depth of Cut (mm):
27.00mm
Toolholder Style:
MSTA
Series:
MSTA
interval quantity:
1
SKU:
23229554
UPC:
Weight:
0.27 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

Features:

  • MSTA slot mills have simple self-clamping system to allow for easy attachment by just installing the insert
  • Owing to the highly rigid clamping system - with an end-stopper, the cutter enables high operability and stable slotting by maintaining an accurate edge position.
  • High replacement precision due to the clamping system with two prisms.
  • The replacement of inserts is easy and quick by using special wrench.

Product Specifications
EDP NumberTHC10960
Shank Width (Decimal Inch)0.7874"
Max Depth of Cut (Decimal Inch)1.0630"
Max Depth of Cut (mm)27.00mm
Cutting Width (Decimal Inch)0.0866"
Cutting Width (mm)2.20mm
Cutting Width Minimum (Decimal Inch)0.0866"
Cutting Width Minimum (mm)2.20mm
Cutting Width Maximum (Decimal Inch)0.0866"
Cutting Width Maximum (mm)2.20mm
Cutting Diameter (Decimal Inch)3.9370"
Cutting Diameter (mm)100.00mm
Cutting Diameter Minimum (Decimal Inch)3.9370"
Cutting Diameter Minimum (mm)100.00mm
Cutting Diameter Maximum (Decimal Inch)3.9370"
Cutting Diameter Maximum (mm)100.00mm
Cutting Diameter Maximum (mm)0.8661"
Connection Bore Diameter (mm)22.00mm
ApplicationCut-Off | Slotting
HandNeutral
Insert Holding MethodSelf-Clamp
MaterialSteel
