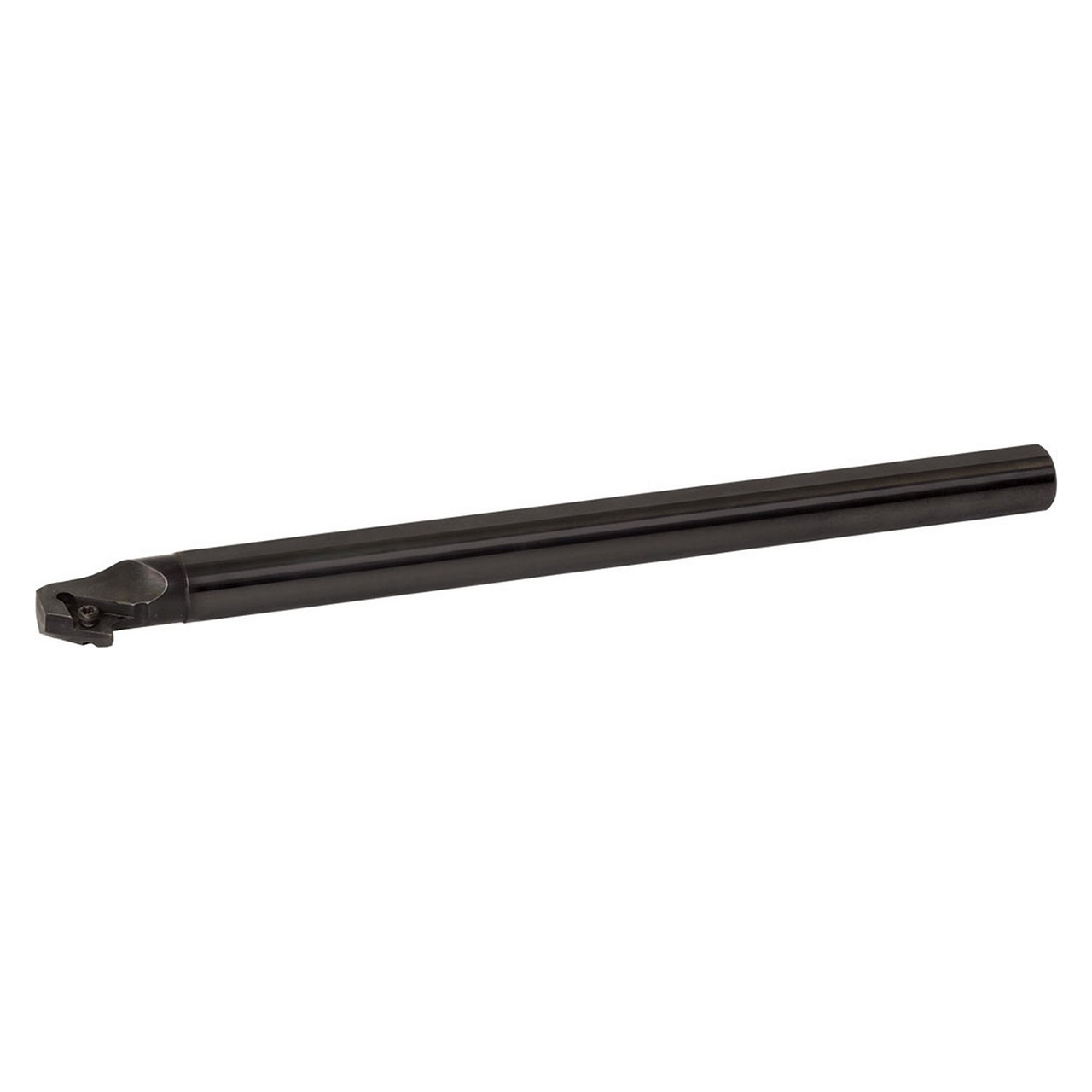

Kyocera Precision Tools THC11804 | S20RSDZCR1127A 0.787" Diameter Right-Hand Steel Indexable Boring Bar

SKU: 23229743 Weight: 1.15 LBS Minimum Purchase: 1 unit
UPC:
$273.34 $226.87
(You save $46.47)
Shipping: Calculated at Checkout

About This Item

Features:

  • Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
  • Large chip pocket provides superior chip evacuation
  • Anti-chatter vibration performance
  • Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
  • 3 (Axial), -5 (Radial) Rake angle dynamic bar boring bar

Product Specifications
EDP NumberTHC11804
Connection Diameter (Decimal Inch)0.7874"
Connection Diameter (mm)20.00mm
Minimum Bore Diameter (Decimal Inch)1.0630"
Minimum Bore Diameter (mm)27.00mm
Shank Height (Decimal Inch)0.7480"
Shank Height (mm)19.00mm
Tool Entering Angle ( Degree)93 Degree
ApplicationBack Boring
Bar TypeSteel Shank
HandRight Hand
Insert Holding MethodScrew
Insert Shape55 Degree Diamond
MaterialSteel
RakePositive
