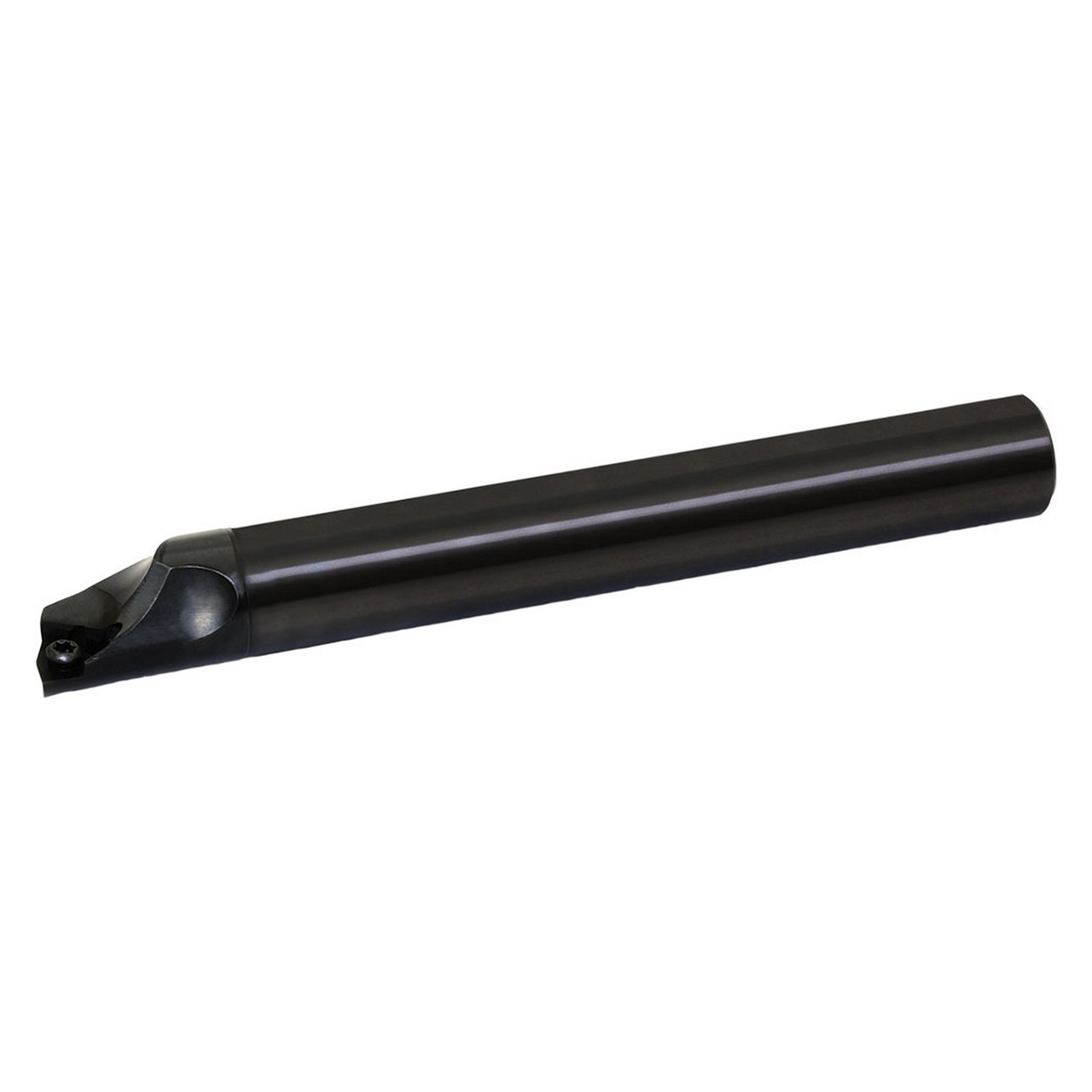

Features:
- Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
- Large chip pocket provides superior chip evacuation
- Anti-chatter vibration performance
- Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
- 5 (Axial), -4 (Radial) Rake angle dynamic bar boring bar
Product Specifications
| EDP Number | THC11980 |
| Connection Diameter (Decimal Inch) | 0.4724" |
| Connection Diameter (mm) | 12.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.5512" |
| Minimum Bore Diameter (mm) | 14.00mm |
| Shank Height (Decimal Inch) | 0.4331" |
| Shank Height (mm) | 11.00mm |
| Tool Entering Angle ( Degree) | 93 Degree |
| Application | Boring |
| Bar Type | Steel Shank |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Shape | 80 Degree Trigon |
| Material | Steel |
| Rake | Positive |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
S...SWUP-A
Series:
DYNB;Minimum Bore Diameter (Decimal Inch)=0.5512"""
Minimum Bore Diameter (mm):
14.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
0.4724"
Shank Diameter (mm):
12.00mm
Through Coolant:
No
