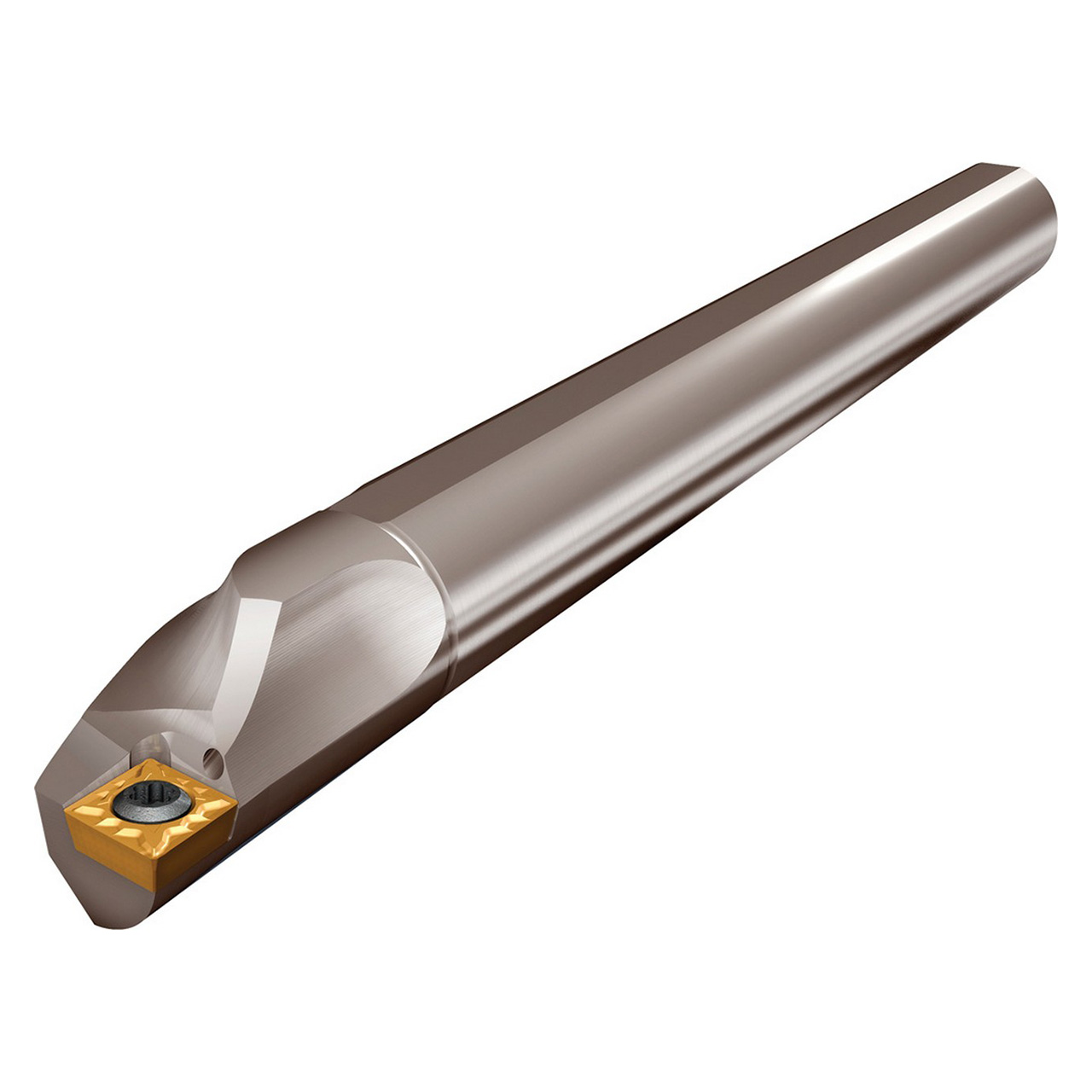

Kyocera Precision Tools THC14009 | A12SSCLPR3AE 0.750" Diameter Right-Hand Steel Indexable Boring Bar

SKU: 23230084 Weight: 2.15 LBS Minimum Purchase: 1 unit
UPC:
$348.87 $289.56
(You save $59.31)
Shipping: Free Shipping

About This Item

Features:

  • Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
  • Large chip pocket provides superior chip evacuation
  • Anti-chatter vibration performance
  • Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
  • 5 (Axial), -2 (Radial) Rake angle dynamic bar coolant-through boring bar

Product Specifications
EDP NumberTHC14009
Connection Diameter (Decimal Inch)0.7500"
Connection Diameter (mm)19.05mm
Minimum Bore Diameter (Decimal Inch)0.8248"
Minimum Bore Diameter (mm)20.95mm
Shank Height (Decimal Inch)0.7110"
Shank Height (mm)18.06mm
Tool Entering Angle ( Degree)95 Degree
ApplicationBoring | Internal Facing
Bar TypeExcellent Bar
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
Insert Shape80 Degree Diamond
MaterialSteel
RakePositive
