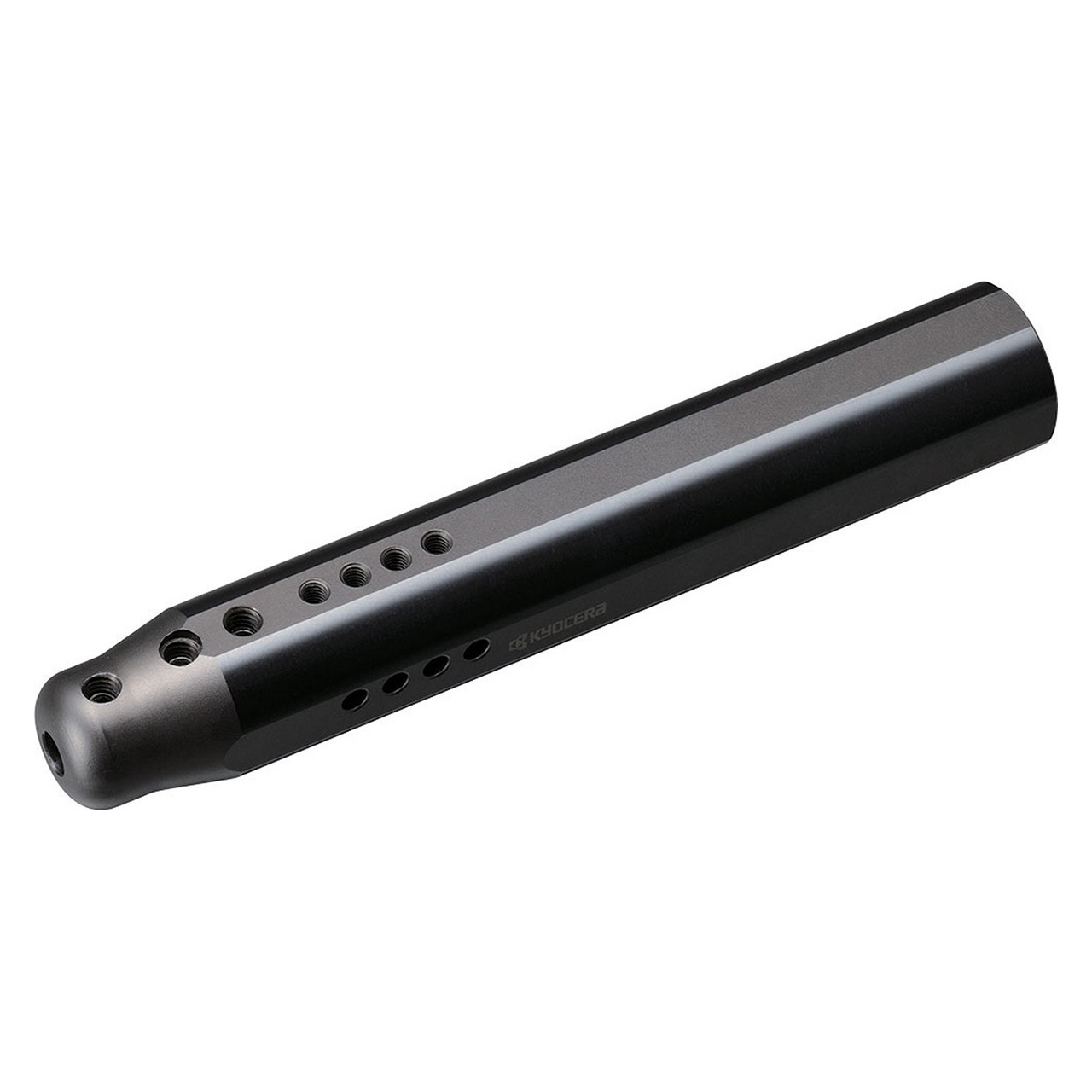

Kyocera Precision Tools THC14369 | EZH070254HP120 0.276" Diameter x 0.961" Shank Height Steel Boring Bar Sleeve

SKU: 23230256 Weight: 0.90 LBS Minimum Purchase: 1 unit
UPC:
$356.46 $295.86
(You save $60.60)
Shipping: Free Shipping

About This Item

Features:

  • The EZ Bar system prevents deviation with high-rigidity clamping
  • Easy adjustment and high precision for a wide range of applications
  • Compatible with EZBR070, EZGR070-, EZFGR070-, EZTR070-, 070X--080EZP style micro bars

Product Specifications
EDP NumberTHC14369
Cutting Diameter Maximum (mm)0.2756"
Connection Bore Diameter (mm)7.00mm
Connection Diameter (Decimal Inch)1.0000"
Connection Diameter (mm)25.40mm
Shank Height (Decimal Inch)0.9606"
Shank Height (mm)24.40mm
Adjustable Bar (Yes/No)Yes
ApplicationMicro Back Boring | Micro Boring | Micro Internal Face Grooving | Micro Internal Grooving | Micro Internal Profiling | Micro Internal Threading
Insert Holding MethodScrew
MaterialSteel
Shank TypeStraight / Cylindrical
