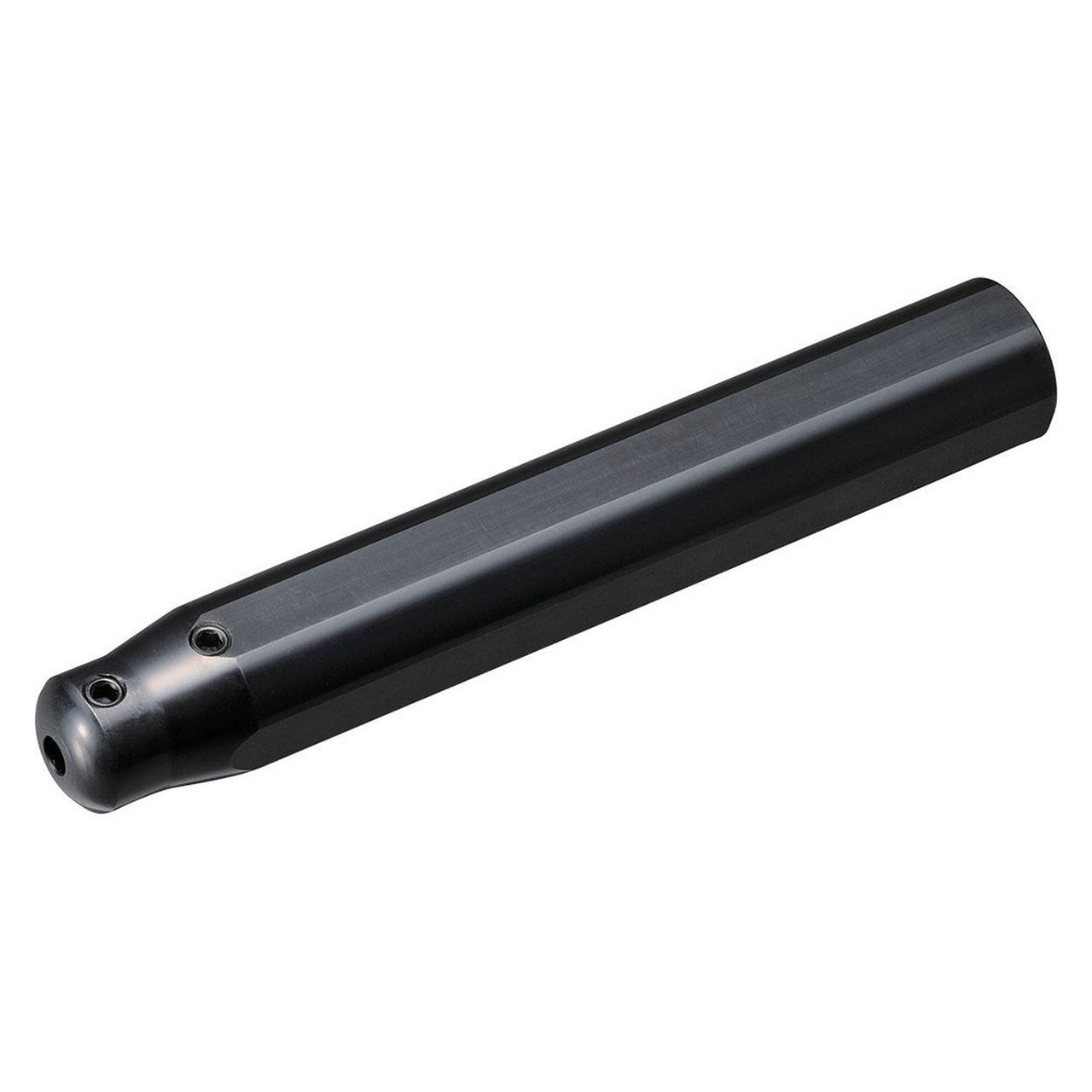

Kyocera Precision Tools THC14426 | EZH04016ST100 0.158" Diameter x 0.591" Shank Height Steel Boring Bar Sleeve

SKU: 23230299 Weight: 0.32 LBS Minimum Purchase: 1 unit
UPC:
$199.10 $165.25
(You save $33.85)
Shipping: Calculated at Checkout

About This Item

Features:

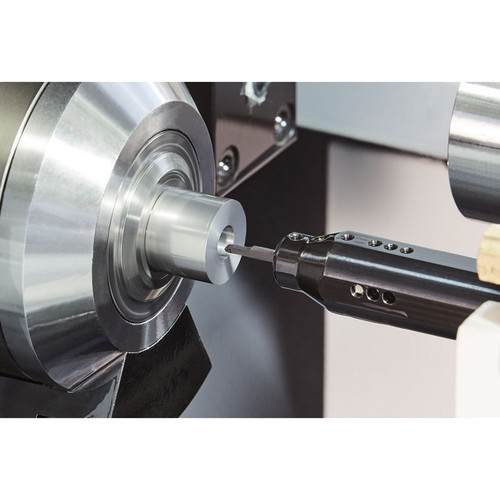

  • The EZ Bar system prevents deviation with high-rigidity clamping
  • Non-adjustable cost-effective type for a variety of micro boring applications
  • Compatible with EZB..040- style micro bars

Product Specifications
EDP NumberTHC14426
Cutting Diameter Maximum (mm)0.1575"
Connection Bore Diameter (mm)4.00mm
Connection Diameter (Decimal Inch)0.6299"
Connection Diameter (mm)16.00mm
Shank Height (Decimal Inch)0.5906"
Shank Height (mm)15.00mm
ApplicationMicro Back Boring | Micro Boring | Micro Internal Face Grooving | Micro Internal Grooving | Micro Internal Profiling | Micro Internal Threading
Insert Holding MethodScrew
MaterialSteel
Shank TypeStraight / Cylindrical
