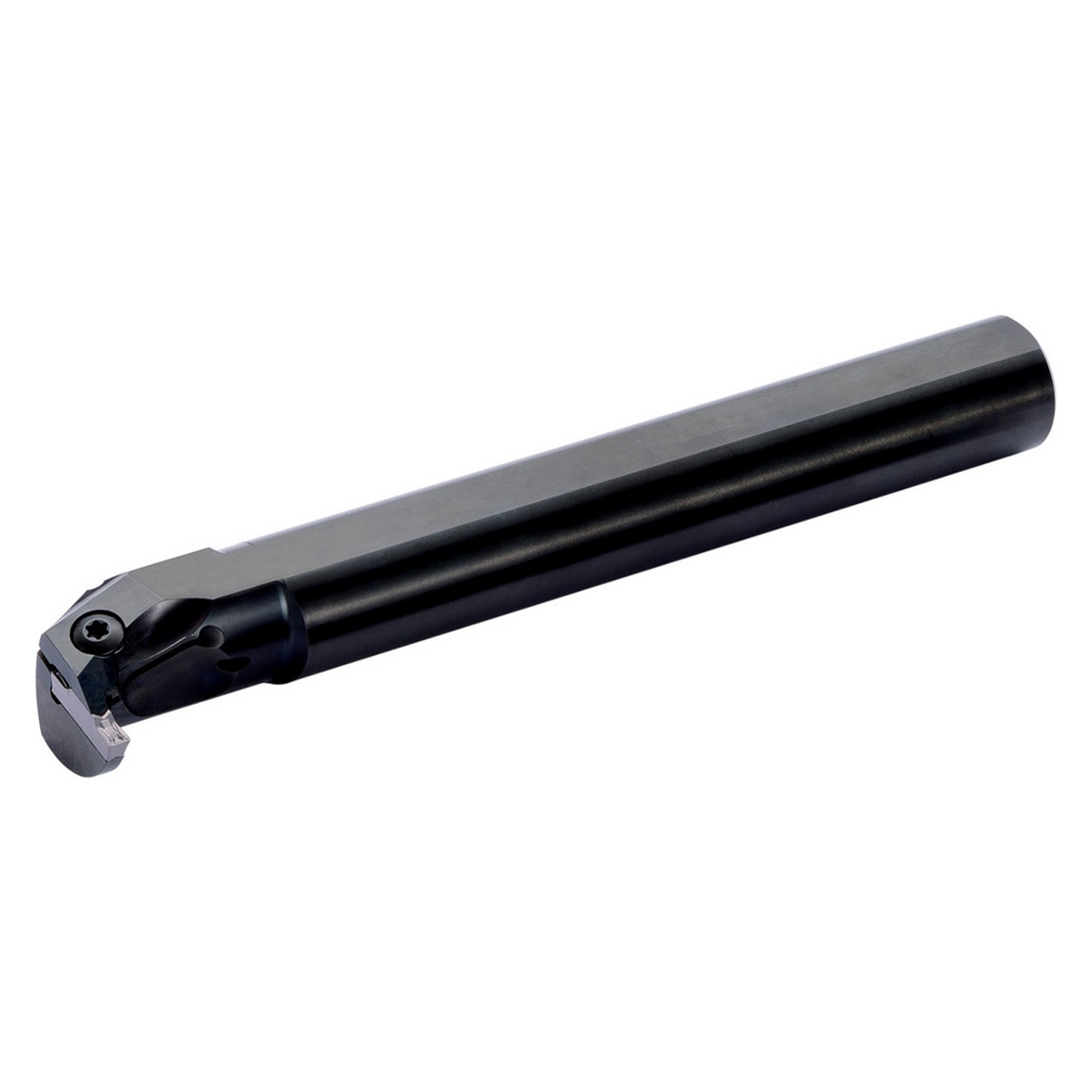

Features:
- Right-Hand toolholder
- Application: internal grooving
- Clamp Screw Insert Holding Design
- Compatible with Neutral GDM3GMI, GDM3CM Inserts
- Good chip control with special GMI chipbreaker
Product Specifications
| EDP Number | THC14539 |
| Max Depth of Cut (Decimal Inch) | 0.3150" |
| Max Depth of Cut (mm) | 8.00mm |
| Cutting Width (Decimal Inch) | 0.1181" |
| Cutting Width (mm) | 3.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1181" |
| Cutting Width Minimum (mm) | 3.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1181" |
| Cutting Width Maximum (mm) | 3.00mm |
| Connection Diameter (Decimal Inch) | 0.9843" |
| Connection Diameter (mm) | 25.00mm |
| Minimum Bore Diameter (Decimal Inch) | 1.2598" |
| Minimum Bore Diameter (mm) | 32.00mm |
| Shank Height (Decimal Inch) | 0.9055" |
| Shank Height (mm) | 23.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Application | Internal Grooving |
| Coolant Through (Yes/No) | Yes |
| Grooving Type | Internal Grooving |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Type:
Internal Grooving
Hand of Holder:
Right-Hand
Maximum Depth of Cut (Decimal Inch):
0.3150"
Maximum Depth of Cut (mm):
8.00mm
Minimum Groove Width (Decimal Inch):
0.1181"
Minimum Groove Width (mm):
3.00mm
Maximum Groove Width (Decimal Inch):
0.1181"
Maximum Groove Width (mm):
3.00mm
Toolholder Style:
KGDI
Shank Height (Decimal Inch):
0.9055"
Shank Height (mm):
23.00mm
Shank Width/Diameter (Decimal Inch):
0.9843"
Shank Width/Diameter (mm):
25.00mm
Series:
KGDI;Through Coolant=Yes"
