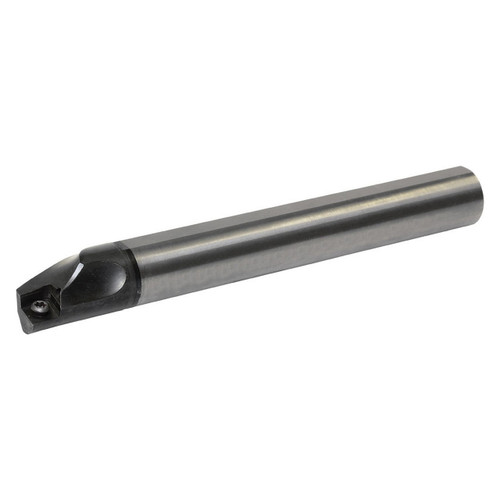

Kyocera Precision Tools THC14611 | C045XSCLCR03050EZP 0.177" Diameter Right-Hand Steel and Carbide Indexable Boring Bar

SKU: 23230465 Weight: 0.10 LBS Minimum Purchase: 1 unit
UPC:
$433.77 $360.03
(You save $73.74)
Shipping: Free Shipping

About This Item

Features:

  • Indexable small diameter boring bars
  • High precision solid bars with the convenience of indexable inserts for reduced machining costs
  • The EZ adjust structure features much lower mounting times compared to conventional boring bars
  • The EZ adjust structure features higher repeatability and accuracy compared with conventional boring bars
  • 2 (Axial), -15 (Radial) Rake angle EZ bar plus boring bar

Product Specifications
EDP NumberTHC14611
Connection Diameter (Decimal Inch)0.1772"
Connection Diameter (mm)4.50mm
Minimum Bore Diameter (Decimal Inch)0.1969"
Minimum Bore Diameter (mm)5.00mm
Shank Height (Decimal Inch)0.1693"
Shank Height (mm)4.30mm
Tool Entering Angle ( Degree)95 Degree
ApplicationBoring
Bar TypeCarbide Shank
HandRight Hand
Insert Holding MethodScrew
Insert Shape80 Degree Diamond
MaterialSteel/Carbide
RakePositive
